12KV Insulating Bush Maintenance: Best Practices

Maintaining 12KV insulating bush is crucial for the reliability and longevity of electrical systems. Best practices include regular inspections, cleaning, and testing to ensure optimal performance. Proper maintenance involves checking for physical damage, cleaning contaminants, and conducting electrical tests. Implementing a scheduled maintenance program, using appropriate cleaning techniques, and following manufacturer guidelines are essential. By adhering to these practices, operators can prevent failures, extend equipment life, and ensure safe and efficient operation of 12KV insulating bushings in various electrical applications.

Understanding 12KV Insulating Bushings

What are 12KV Insulating Bushes?

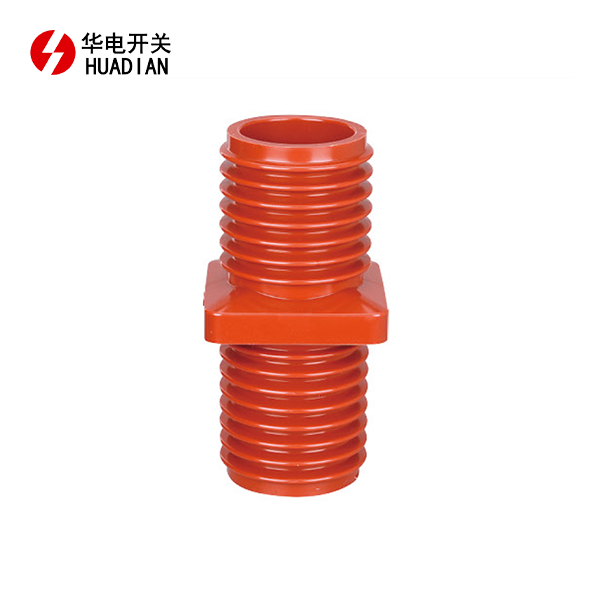

12KV insulating bushings are critical components in electrical systems, designed to provide insulation and support for conductors passing through grounded barriers. These bushings are typically used in transformers, circuit breakers, and switchgear operating at 12,000 volts. They consist of a central conductor surrounded by insulating material, often made of porcelain or polymer, and are engineered to withstand high voltages while preventing electrical discharge.

Importance in Electrical Systems

The significance of 12KV insulating bushings in electrical infrastructure cannot be overstated. They play a vital role in maintaining system integrity by providing a safe passage for conductors through enclosures or tanks. These bushings ensure proper insulation between high-voltage conductors and grounded parts, preventing flashovers and maintaining the overall reliability of the electrical network. Their performance directly impacts the safety and efficiency of power distribution systems.

Common Issues and Failure Modes

Despite their robust design, 12KV insulating bushes can face several challenges over time. Common issues include surface contamination, moisture ingress, partial discharge, and mechanical stress. These problems can lead to insulation degradation, electrical tracking, or even complete bushing failure. Understanding these potential failure modes is crucial for implementing effective maintenance strategies and ensuring the longevity of these critical components.

Essential Maintenance Procedures

Visual Inspection Techniques

Regular visual inspections form the cornerstone of effective 12KV insulating bush maintenance. These inspections should focus on identifying visible signs of deterioration or damage. Look for cracks, chips, or discoloration on the insulator surface. Check for signs of oil leakage, particularly at gasket joints. Examine the bushings for any unusual accumulation of dirt, salt, or other contaminants. Pay special attention to the condition of the weather sheds and the integrity of the seals. These visual checks can often reveal early indicators of potential problems, allowing for timely intervention.

Cleaning Methods and Frequency

Proper cleaning of 12KV insulating bushings is essential for maintaining their insulation properties. The cleaning frequency depends on environmental conditions, with more frequent cleaning required in polluted or coastal areas. Use a soft cloth or brush with a mild, non-abrasive detergent solution for routine cleaning. For stubborn deposits, specialized cleaning compounds may be necessary, but care must be taken to avoid damaging the insulator surface. High-pressure water cleaning can be effective but should be done cautiously to prevent water ingress. After cleaning, ensure the bushing is thoroughly dried to prevent moisture-related issues.

Electrical Testing and Diagnostics

Electrical testing is crucial for assessing the internal condition of 12KV insulating bushes. Power factor testing helps evaluate the overall insulation quality and can detect internal moisture or contamination. Capacitance measurements can indicate changes in the bushing's internal structure. Partial discharge testing is valuable for detecting internal voids or defects that could lead to failure. These tests should be performed periodically and results compared to baseline measurements to identify trends. Advanced diagnostic techniques like frequency response analysis (FRA) can provide deeper insights into the bushing's condition, aiding in predictive maintenance strategies.

Preventive Maintenance Strategies

Developing a Maintenance Schedule

Creating a comprehensive maintenance schedule is paramount for the longevity and reliability of 12KV insulating bushings. This schedule should be tailored to the specific operating conditions and environmental factors affecting the bushings. Typically, visual inspections should be conducted monthly, while more thorough examinations and electrical tests may be performed annually or bi-annually. Factor in the age of the equipment, historical performance data, and manufacturer recommendations when determining the frequency of maintenance activities. Incorporate flexibility in the schedule to accommodate unexpected issues or environmental changes that may necessitate more frequent interventions.

Environmental Considerations

The environment in which 12KV insulating bushes operate significantly impacts their performance and maintenance needs. In coastal areas, salt spray can accelerate corrosion and contamination, requiring more frequent cleaning and inspection. Industrial areas may expose bushings to chemical pollutants, necessitating specialized cleaning procedures. In regions prone to seismic activity, regular checks for mechanical stress or misalignment are crucial. Climate factors such as extreme temperatures, high humidity, or frequent temperature fluctuations can also affect bushing performance. Tailor your maintenance approach to address these specific environmental challenges to ensure optimal bushing performance and longevity.

Implementing Condition-Based Maintenance

Condition-based maintenance (CBM) represents a proactive approach to 12KV insulating bush care. This strategy involves continuous or periodic monitoring of bushing conditions to determine when maintenance is actually needed, rather than relying solely on fixed schedules. Implement online monitoring systems that can track parameters like partial discharge, temperature, and oil condition in real-time. Utilize data analytics to identify trends and predict potential failures before they occur. This approach not only optimizes maintenance resources but also minimizes unnecessary interventions that could potentially introduce new issues. By focusing on the actual condition of the bushings, CBM can significantly enhance reliability while reducing overall maintenance costs.

Conclusion

Effective maintenance of 12KV insulating bushes is crucial for ensuring the reliability and safety of electrical systems. By implementing a comprehensive maintenance strategy that includes regular inspections, proper cleaning techniques, and advanced diagnostic testing, operators can significantly extend the lifespan of these critical components. Adopting a proactive approach, considering environmental factors, and leveraging condition-based maintenance can lead to optimized performance and reduced downtime. Remember, the key to successful 12KV insulating bush maintenance lies in consistency, attention to detail, and staying informed about the latest industry best practices and technologies.
