Understanding XL-21 Power Distribution Cabinet Specifications
Physical Dimensions and Construction

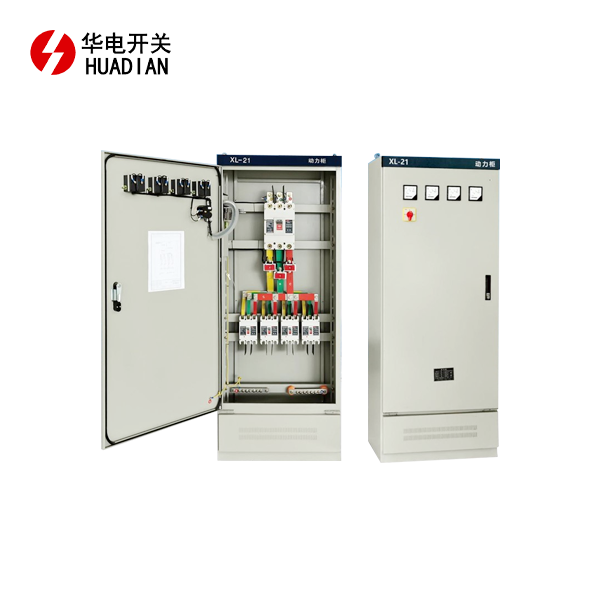

XL-21 type power distribution cabinets are engineered with precision to meet the demands of modern electrical systems. These cabinets typically feature robust steel construction, ensuring durability and protection against environmental factors. The dimensions can vary based on specific requirements, but standard sizes often range from 1800mm to 2200mm in height, 600mm to 1000mm in width, and 600mm to 800mm in depth. The enclosure's IP rating (Ingress Protection) is usually IP54 or higher, providing excellent protection against dust and water intrusion.
Electrical Ratings and Capacity
The electrical specifications of XL-21 type power distribution cabinets are designed to handle substantial power loads. Typical ratings include:
- Rated voltage: Up to 690V AC
- Rated current: 630A to 4000A
- Short-circuit withstand capacity: Up to 100kA
- Frequency: 50/60 Hz
- Busbar System and Circuit Breakers
The heart of the XL-21 cabinet is its busbar system, which distributes power to various circuits. High-quality copper or aluminum busbars are used, with cross-sections calculated to handle the rated current efficiently. Circuit breakers are a critical component, offering protection against overloads and short circuits. Modern XL-21 cabinets often incorporate advanced circuit breakers with electronic trip units, providing enhanced protection and monitoring capabilities.
Installation and Safety Standards for XL-21 Cabinets
Site Preparation and Environmental Considerations
Proper installation of XL-21 type power distribution cabinets begins with meticulous site preparation. The installation area must be clean, dry, and level, with adequate ventilation to prevent overheating. Environmental factors such as ambient temperature, humidity, and altitude must be considered, as they can affect the cabinet's performance. Typically, XL-21 cabinets are designed to operate in temperatures ranging from -5°C to 40°C, with relative humidity not exceeding 95%.
Compliance with Electrical Codes and Regulations
The installation of XL-21 type power distribution cabinets must comply with both local and international electrical codes and standards to ensure safety and reliability. This includes adherence to IEC 61439, which governs low-voltage switchgear and controlgear assemblies, ensuring that the cabinets meet global electrical safety and performance requirements. Additionally, regional standards such as NFPA 70 (National Electrical Code) in the United States and BS 7671 (IET Wiring Regulations) in the UK must be followed to align with specific national regulations. These codes cover essential aspects like wiring, grounding, and electrical safety, ensuring the installation process meets the highest standards. Compliance with these standards not only guarantees the safety of personnel and equipment but also enhances the reliability and interoperability of the electrical system. Following these guidelines contributes to efficient, long-lasting installations that are safe, functional, and in full accordance with regulatory requirements across various regions.
Grounding and Protection Systems
A reliable grounding system is essential for the safe operation of XL-21 cabinets. This involves ensuring a proper connection to the main earthing system and installing protective devices, such as surge arresters, to safeguard against electrical faults. The cabinet's internal grounding bus must be appropriately sized and securely connected to all non-current-carrying metal parts, providing an effective path for fault currents. Additionally, modern XL-21 cabinets are often equipped with advanced protection systems, including Residual Current Devices (RCDs) and Arc Fault Detection Devices (AFDDs). These technologies offer enhanced safety by detecting and preventing potential electrical hazards such as leakage currents and arc faults, reducing the risk of fires and electrical shocks. By integrating these systems, XL-21 cabinets provide a higher level of protection for both personnel and equipment, ensuring long-term, reliable operation.
Maintenance and Upgrades of XL-21 Power Distribution Cabinets
Routine Inspection and Preventive Maintenance
Regular maintenance is crucial for ensuring the longevity and reliability of XL-21 type power distribution cabinets. A comprehensive maintenance schedule typically includes:
- Visual inspections for signs of wear, corrosion, or damage
- Thermal imaging to detect hot spots indicating potential issues
- Tightening of all electrical connections
- Cleaning of insulators and busbars
- Testing of protection devices and circuit breakers
Upgrading and Retrofitting Options
As electrical systems evolve, XL-21 cabinets can be upgraded to meet new requirements. Common upgrades include:
- Replacing older circuit breakers with modern, intelligent units
- Installing power quality monitoring systems
- Adding communication modules for remote monitoring and control
- Upgrading ventilation systems for improved thermal management
Documentation and Record Keeping
Maintaining accurate records is essential for the proper management of XL-21 cabinets. This includes keeping detailed logs of:
- Installation details and initial commissioning reports
- Maintenance activities and findings
- Upgrade and modification records
- Incident reports and corrective actions
Conclusion
XL-21 power distribution cabinets are indispensable components in modern electrical systems, offering reliable power distribution with advanced safety features. Understanding their specifications, adhering to installation standards, and implementing proper maintenance protocols are crucial for optimal performance and longevity. As technology advances, these cabinets continue to evolve, incorporating smart features and improved efficiency. By following the guidelines outlined in this guide, facility managers and electrical professionals can ensure their XL-21 cabinets operate at peak efficiency, contributing to safer and more reliable electrical systems across various industries.
