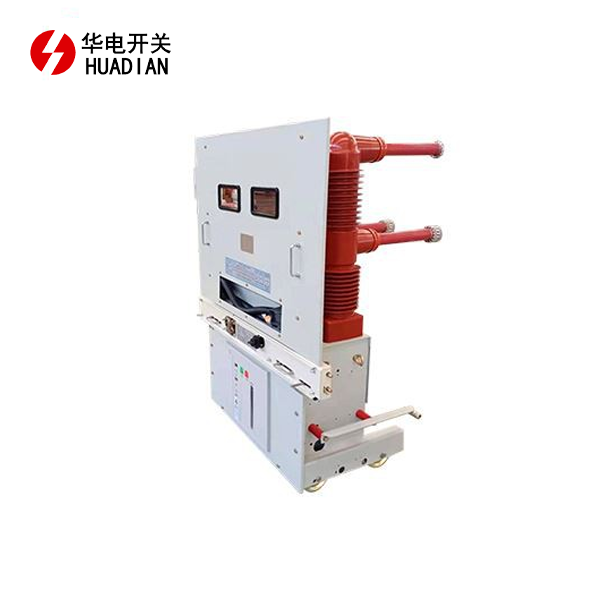

Understanding Air Vacuum Circuit Breakers
Principles of Operation
Air vacuum circuit breakers operate on a simple yet effective principle. These devices utilize a vacuum chamber to extinguish the electric arc that forms when the circuit is interrupted. Inside the vacuum chamber, two contacts are housed - one fixed and one movable. When the breaker needs to interrupt the current, the movable contact separates from the fixed contact, creating a gap. The vacuum environment allows for rapid arc extinction, as there are minimal particles for the arc to ionize and sustain itself.
The vacuum's unique properties enable it to recover its dielectric strength rapidly after the current zero, ensuring efficient interruption. This swift recovery is a key advantage of air vacuum circuit breakers, allowing them to handle high-frequency current interruptions effectively.
Advantages of Air Vacuum Circuit Breakers
Air vacuum circuit breakers boast numerous advantages that make them a popular choice in various applications. Their compact design allows for space-efficient installations, a crucial factor in many industrial and commercial settings. The absence of oil or gas insulation eliminates the risk of fire or explosion, enhancing overall safety.
These breakers require minimal maintenance due to their simple construction and the absence of complex insulating mediums. The vacuum environment protects the contacts from oxidation and contamination, leading to a longer operational life. Moreover, air vacuum circuit breakers are environmentally friendly, as they don't use any harmful gases or substances that could potentially leak and cause environmental damage.
Applications and Limitations
Air vacuum circuit breakers excel in medium voltage applications, typically ranging from 3kV to 38kV. They are widely used in power distribution systems, industrial plants, and renewable energy installations. Their rapid interruption capabilities make them ideal for protecting sensitive equipment and managing frequent switching operations.
However, air vacuum circuit breakers do have limitations. Their use in high voltage applications (above 38kV) is limited due to the challenges in maintaining a stable vacuum at these voltage levels. Additionally, they may produce higher transient overvoltages during switching operations compared to some other types of circuit breakers, necessitating careful system design and potential use of surge arresters.
Exploring SF6 Circuit Breakers
SF6 Gas Properties and Usage
Sulfur Hexafluoride (SF6) is a synthetic gas with remarkable insulating and arc-quenching properties. Its high dielectric strength and excellent thermal conductivity make it an effective medium for circuit interruption. SF6 gas can effectively dissipate heat and quickly recover its dielectric strength after arc extinction, allowing for efficient current interruption even at high voltages.
In SF6 circuit breakers, the gas is contained within a sealed chamber. When the breaker operates, the SF6 gas is compressed and blown across the arc path, effectively cooling and extinguishing the arc. The gas then recombines, ready for the next operation. This process allows SF6 breakers to handle high voltage and high current interruptions effectively.
Strengths of SF6 Circuit Breakers
SF6 circuit breakers have been a staple in high voltage applications for decades due to their exceptional performance. They can handle voltages ranging from medium to ultra-high levels, making them versatile for various power system applications. The superior arc-quenching properties of SF6 gas allow these breakers to interrupt large fault currents efficiently, in contrast to an air vacuum circuit breaker which typically serves lower voltage applications.
These breakers also boast a compact design relative to their voltage and current ratings, making them suitable for installations where space is at a premium. SF6 breakers generally have a long operational life and can withstand frequent operations without significant wear and tear. Their ability to operate in various environmental conditions, including extreme temperatures and altitudes, adds to their reliability.
Environmental Concerns and Regulatory Challenges
Despite their technical advantages, SF6 circuit breakers face significant environmental and regulatory challenges. SF6 is a potent greenhouse gas with a global warming potential 23,500 times that of CO2 over a 100-year period. Even small leaks can have a substantial environmental impact, leading to increased scrutiny and regulation of SF6 use.
Many countries and regions have implemented strict regulations on the use, handling, and disposal of SF6 gas. These regulations often require careful monitoring, reporting, and end-of-life management for SF6 equipment. The increasing focus on environmental sustainability has led many utilities and industries to seek alternatives to SF6 breakers, particularly in medium voltage applications where viable options like air vacuum circuit breakers are readily available.
Comparative Analysis: Air Vacuum vs SF6 Circuit Breakers
Performance and Reliability
Both air vacuum and SF6 circuit breakers offer high levels of performance and reliability, but their characteristics differ. Air vacuum circuit breakers excel in medium voltage applications, providing rapid arc extinction and quick dielectric recovery. They handle frequent operations well and have a long operational life due to minimal contact wear in the vacuum environment.
SF6 circuit breakers, on the other hand, shine in high voltage applications. Their superior arc-quenching capabilities allow them to interrupt larger fault currents effectively. However, the complexity of SF6 systems can lead to more potential points of failure compared to the simpler air vacuum breakers.
Environmental Impact and Safety Considerations
The environmental impact is a crucial differentiator between these two technologies. Air vacuum circuit breakers are inherently environmentally friendly, using no harmful substances. They pose minimal risk of environmental contamination throughout their lifecycle.
Conversely, SF6 circuit breakers carry significant environmental concerns due to the potent greenhouse effect of SF6 gas. Any leakage during operation or improper handling during maintenance or disposal can have severe environmental consequences. This environmental factor is increasingly influencing decision-making in circuit breaker selection, particularly as global focus on sustainability intensifies.
Cost Analysis and Maintenance Requirements
Initial costs for air vacuum circuit breakers are often higher than comparable SF6 breakers. However, the total cost of ownership often favors air vacuum technology when considering long-term factors. Air vacuum breakers require minimal maintenance, have lower operational costs, and don't need periodic gas handling or refilling.
SF6 circuit breakers, while potentially cheaper upfront, incur higher long-term costs. They require regular gas monitoring, potential refilling, and specialized handling procedures. The stringent regulations around SF6 gas also add to the operational complexity and cost. As environmental regulations tighten, the cost associated with SF6 management is likely to increase further.
Conclusion
The choice between air vacuum and SF6 circuit breakers depends on various factors including voltage requirements, environmental considerations, and long-term costs. Air vacuum circuit breakers emerge as the preferred choice for medium voltage applications due to their environmental friendliness, low maintenance needs, and excellent performance. They offer a sustainable solution that aligns with growing environmental concerns. SF6 breakers, while still dominant in high voltage scenarios, face increasing scrutiny due to environmental impacts. As technology advances, the industry is moving towards more sustainable alternatives, with air vacuum technology leading the way in medium voltage applications. When making a selection, it's crucial to consider not just immediate needs but also long-term operational, environmental, and regulatory factors.
