Understanding Flexible Connectors in Switchgear Systems
The Role of Flexible Connectors
Flexible connectors play a crucial role in switchgear systems by providing a reliable and adaptable connection between busbars, cables, and other electrical components. They are engineered to absorb vibrations caused by electrical currents or mechanical operations and to compensate for thermal expansion and contraction during load changes. This prevents undue stress on rigid components and avoids potential cracks, loosened connections, or insulation failures. Overall, flexible connectors ensure stable electrical continuity, improve equipment longevity, and enhance the operational resilience of switchgear assemblies in demanding environments.

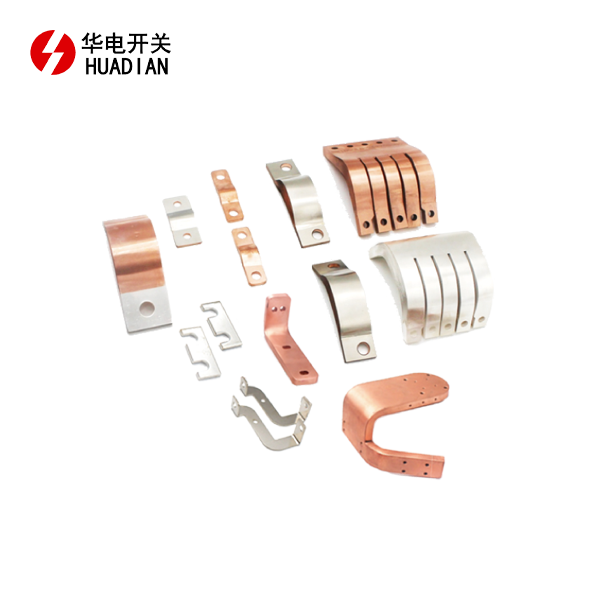

Types of Flexible Connectors
Switchgear systems employ different types of flexible connectors based on electrical and mechanical requirements. Braided connectors, made of finely woven copper wires, offer superior flexibility and are ideal for compact installations with movement or vibration. Laminated shunts, constructed from stacked thin copper strips, provide excellent current-carrying capacity with low resistance, making them suitable for high-current applications requiring minimal voltage drop. Expansion joints are specifically designed to handle significant thermal expansion and contraction in large bus duct systems, ensuring mechanical integrity and maintaining alignment between switchgear sections under temperature variations.
Benefits of Using Flexible Connectors
Incorporating flexible connectors into switchgear systems yields multiple operational and safety benefits. They reduce mechanical stress and strain on rigid busbars and terminals, preventing damage due to thermal expansion or equipment vibration. This improves system reliability and reduces the likelihood of unplanned downtime. Flexible connectors also enhance thermal management by allowing heat dissipation and accommodating temperature-induced movements. Furthermore, their ease of installation simplifies assembly and maintenance tasks. By ensuring consistent electrical contact despite movements, they significantly increase the safety and lifespan of switchgear installations.
Key Factors in Selecting the Best Flexible Connectors
Material Composition
The material composition of flexible connectors plays a decisive role in their electrical and mechanical performance. Copper is the preferred choice due to its superior electrical conductivity, mechanical strength, and inherent corrosion resistance, making it suitable for most industrial and electrical applications. Aluminum connectors, being lighter, are advantageous in weight-sensitive installations but require careful handling to avoid oxidation. Advanced designs may incorporate silver or tin plating over copper to reduce surface contact resistance and enhance conductivity, especially in high-frequency or corrosive environments requiring reliable long-term performance.
Current Carrying Capacity
Current carrying capacity is a critical selection parameter for flexible connectors, as it determines safe operational limits under load conditions. This capacity is influenced by factors such as the connector's cross-sectional area, inherent thermal conductivity, and ambient cooling conditions. Exceeding current ratings can lead to overheating, insulation damage, or catastrophic failure. Therefore, it is essential to select connectors with ratings higher than maximum anticipated loads to provide a safety margin. Proper sizing ensures efficient current flow, compliance with electrical standards, and long-term system reliability without thermal degradation risks.
Flexibility and Durability
Flexibility and durability are key mechanical characteristics that must be balanced in a high-quality flexible connector. Adequate flexibility allows the connector to absorb vibrations, accommodate structural movements, and compensate for misalignments within switchgear systems or cable connections. At the same time, it must possess robust durability to endure repetitive bending, mechanical stresses, and thermal cycling without fatigue or performance deterioration. Manufacturers achieve this through specialized constructions, such as fine-stranded braids or laminated copper shunts, designed to maintain mechanical integrity and electrical stability over prolonged operational cycles.
Top Flexible Connector Options for Switchgear Systems
Braided Copper Connectors
Braided copper flexible connectors are among the most versatile options for switchgear systems. These flexible connectors consist of finely woven copper strands, offering excellent flexibility and current distribution. The braided design allows for multi-directional flexibility, making them ideal for applications with complex movement patterns. Copper's high conductivity ensures efficient power transmission, while the braided structure provides superior heat dissipation. These flexible connectors are particularly well-suited for medium to high-current applications in compact switchgear designs.
Laminated Aluminum Shunts
Laminated aluminum flexible connector shunts offer a lightweight yet highly effective solution for switchgear applications requiring high current capacity. These flexible connectors are constructed from multiple layers of thin aluminum sheets, providing excellent flexibility in one plane. The laminated design allows for efficient current distribution across the entire cross-section, minimizing power losses. Aluminum's natural oxide layer provides good corrosion resistance, making these flexible connector shunts suitable for various environmental conditions. They are particularly advantageous in large switchgear installations where weight reduction is a priority.
Expansion Joints with Silver-Plated Contacts
For switchgear systems subject to significant thermal expansion, specialized expansion joints with silver-plated contacts offer an optimal solution. These connectors feature a flexible central section, often made of stainless steel or specialized alloys, with silver-plated end terminals. The flexible section accommodates linear expansion and contraction, while the silver plating ensures low contact resistance and excellent conductivity. This combination results in a connector that can handle high currents while compensating for dimensional changes in the switchgear structure, thereby reducing mechanical stress on other components.
Conclusion
Selecting the best electrical flexible connectors for switchgear systems is crucial for ensuring optimal performance, reliability, and longevity of electrical installations. By considering factors such as material composition, current carrying capacity, and specific application requirements, system designers can choose connectors that provide the ideal balance of flexibility, durability, and electrical efficiency. Whether opting for braided copper connectors, laminated aluminum shunts, or specialized expansion joints, the right choice of flexible connector can significantly enhance the overall functionality and safety of switchgear systems, contributing to improved power distribution and reduced maintenance needs.
