Understanding Flexible Connectors in Busbar Systems
What are Flexible Connectors?

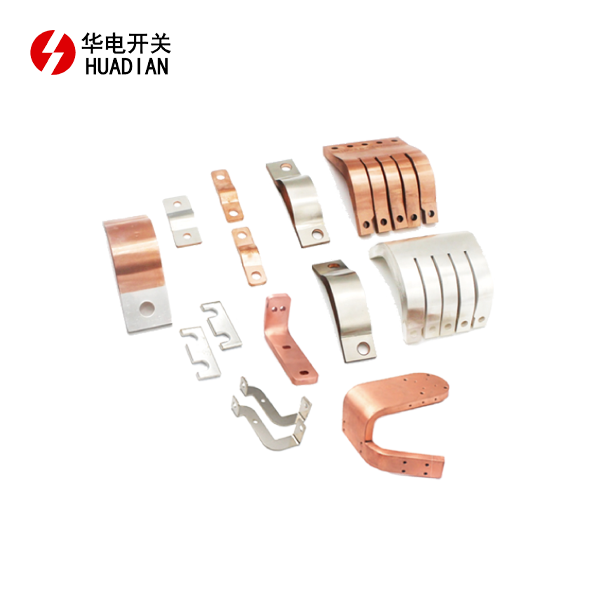

Flexible connectors are essential components in electrical systems, designed to provide a flexible connection between two electrical conductors. In busbar applications, these connectors allow for movement and vibration while maintaining a reliable electrical connection. They are typically made from highly conductive materials such as copper or aluminum, woven or braided to provide flexibility without compromising electrical performance.
Importance of Flexible Connectors in Busbar Applications
The significance of flexible connectors in busbar systems cannot be overstated. They serve several critical functions, including:
- Accommodating thermal expansion and contraction
- Absorbing vibrations and mechanical stress
- Allowing for misalignment between connecting parts
- Reducing the transmission of noise and vibration
- Facilitating easy installation and maintenance
By incorporating flexible connectors, engineers can design more robust and reliable electrical systems that can withstand the dynamic conditions often present in industrial and commercial environments.
Key Factors in Selecting Flexible Connectors
Choosing the right flexible connector for a busbar application requires careful consideration of several factors:
- Current-carrying capacity
- Voltage rating
- Temperature resistance
- Flexibility and range of motion
- Corrosion resistance
- Environmental conditions
- Mechanical strength
- Ease of installation
By evaluating these factors, engineers and procurement specialists can select the most suitable flexible connector for their specific busbar application, ensuring optimal performance and longevity of the electrical system.
Top Flexible Connector Materials for Busbar Applications
Copper Braided Connectors
Copper braided connectors are among the most popular choices for busbar applications due to their exceptional electrical and mechanical properties. These connectors are made from fine copper wires woven into a flexible braid, offering excellent conductivity and current-carrying capacity. The braided structure allows for high flexibility, making them ideal for applications where movement or vibration is expected.
Advantages of copper braided connectors include:
- High electrical conductivity
- Excellent flexibility and fatigue resistance
- Good thermal management
- Ability to withstand high currents
- Durability and long service life
Copper braided connectors are suitable for a wide range of busbar applications, from power distribution systems to industrial machinery and renewable energy installations.
Aluminum Laminated Connectors
Aluminum laminated connectors offer a lightweight and cost-effective alternative to copper connectors. These flexible connectors are constructed from thin layers of aluminum foil, laminated together to create a flexible and durable connection. While not as conductive as copper, aluminum connectors provide sufficient performance for many busbar applications, especially where weight is a concern.
Key benefits of aluminum laminated connectors include:
- Lightweight design
- Cost-effectiveness
- Good corrosion resistance
- Suitable for high-current applications
- Excellent flexibility and vibration absorption
Aluminum laminated connectors are particularly well-suited for applications in the automotive and aerospace industries, where weight reduction is crucial.
Tinned Copper Braided Connectors
Tinned copper braided connectors combine the excellent electrical properties of copper with enhanced corrosion resistance provided by the tin coating. The tin plating protects the copper from oxidation and corrosion, making these connectors ideal for use in harsh environments or outdoor applications.
Advantages of tinned copper braided connectors include:
- Superior corrosion resistance
- Excellent electrical conductivity
- Improved solderability
- Enhanced durability in challenging environments
- Reduced contact resistance
These connectors are commonly used in marine applications, industrial equipment, and other environments where exposure to moisture or corrosive elements is a concern.
Optimizing Flexible Connector Performance in Busbar Systems
Proper Sizing and Selection
Selecting the right size and type of flexible connector is crucial for optimal performance in busbar applications. Undersized connectors can lead to overheating and reduced efficiency, while oversized connectors may result in unnecessary costs and space utilization. To ensure proper sizing:
- Calculate the maximum current and voltage requirements
- Consider the ambient temperature and operating conditions
- Evaluate the required flexibility and range of motion
- Consult manufacturer specifications and recommendations
- Factor in safety margins and future expansion needs
By carefully considering these factors, engineers can select flexible connectors that provide optimal performance and reliability for their specific busbar application.
Installation Best Practices
Proper installation of flexible connectors is essential for ensuring their longevity and performance. Some key installation best practices include:
- Ensuring clean and secure connections at both ends
- Avoiding excessive bending or twisting of the connector
- Providing adequate support to prevent undue stress
- Using appropriate torque when tightening bolts or fasteners
- Implementing proper insulation and protection measures
- Allowing for sufficient slack to accommodate movement
Adhering to these installation guidelines helps maximize the performance and lifespan of flexible connectors in busbar systems.
Maintenance and Inspection
Regular maintenance and inspection of flexible connectors are crucial for ensuring their continued performance and identifying potential issues before they lead to system failures. A comprehensive maintenance program should include:
- Visual inspections for signs of wear, damage, or corrosion
- Thermal imaging to detect hot spots or uneven heating
- Resistance measurements to identify degradation in conductivity
- Checking for loose connections or improper alignment
- Cleaning and removing any accumulated debris or contaminants
- Replacing connectors that show signs of significant wear or damage
By implementing a proactive maintenance strategy, operators can extend the life of their flexible connectors and minimize the risk of unexpected downtime or electrical failures in their busbar systems.
Conclusion
Selecting the best flexible connectors for busbar applications is a critical decision that impacts the performance, reliability, and safety of electrical systems. Copper braided connectors, aluminum laminated connectors, and tinned copper braided connectors each offer unique advantages suited to different applications and environments. By carefully considering factors such as current capacity, flexibility, and environmental conditions, engineers and procurement specialists can choose the most appropriate flexible connector for their specific needs. Proper sizing, installation, and maintenance are equally important in ensuring optimal performance and longevity of these crucial components in busbar systems.
