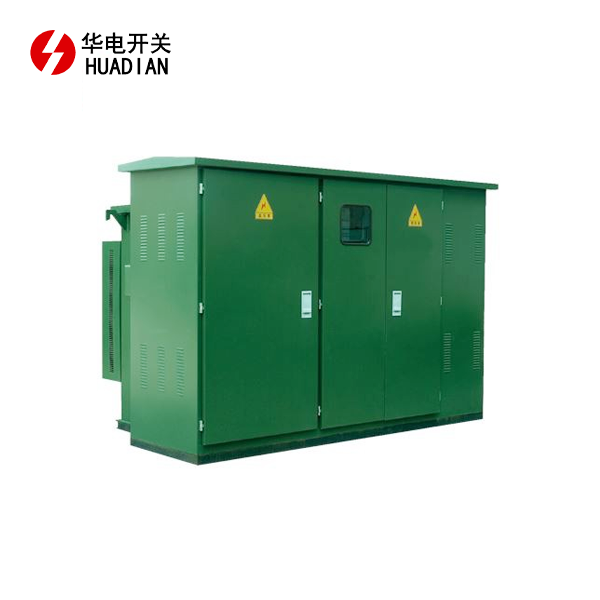

Classification of Box Substations
Voltage-based Classification
Box substations are primarily classified by their voltage ratings, which define their application scope and equipment requirements. Low-voltage box substations, handling up to 1 kV, are commonly used in residential or small commercial areas for final power distribution. Medium-voltage substations operate between 1 kV and 33 kV, making them suitable for industrial facilities, commercial complexes, and urban distribution networks. High-voltage box substations, operating above 33 kV, are utilized in heavy industrial plants or utility transmission systems, requiring stringent insulation, protection, and safety protocols to ensure operational reliability.
Application-based Classification
Box substations can also be categorized based on their specific applications across sectors. Industrial box substations are engineered for heavy-duty performance to support factories, refineries, and large manufacturing plants with stable and high-capacity power distribution. Residential box substations are designed to supply safe and reliable electricity to housing estates, apartment complexes, and gated communities. Commercial box substations cater to the power needs of office towers, retail malls, and hospitality facilities, integrating scalable distribution solutions to match dynamic electrical load demands while maintaining operational safety standards.
Design-based Classification
Design-based classification of box substations focuses on structural configuration to suit varying project needs. Compact box substations consolidate transformers, switchgear, and control panels within a single enclosure, ideal for urban areas with restricted installation space. Modular box substations comprise separate units that can be assembled or expanded as load requirements grow, offering high flexibility and adaptability. Prefabricated box substations are factory-built and pre-tested, ensuring uniform quality and significantly reducing on-site construction and commissioning time, which is advantageous for time-sensitive or standardized infrastructure projects.
Structure and Components of Box Substations
Transformer Section
The transformer section forms the heart of a box substation, housing the power transformer responsible for voltage transformation. This section typically includes oil-filled or dry-type transformers, depending on the substation's specifications. The transformer compartment is designed with proper ventilation and cooling systems to maintain optimal operating temperatures. Bushings, tap changers, and monitoring devices are integral components of this section, ensuring efficient and safe transformer operation.
Switchgear Section
The switchgear section contains circuit breakers, disconnect switches, and control equipment necessary for power distribution and protection. Medium-voltage switchgear often employs vacuum or SF6 gas-insulated circuit breakers, offering reliable arc interruption and compact design. This section also houses protective relays, metering devices, and control panels, enabling remote monitoring and operation of the substation. The switchgear compartment is designed with safety interlocks and arc-resistant features to enhance personnel protection.
Low-voltage Section
The low-voltage section manages the distribution of power to end-users, incorporating distribution boards, busbar systems, and outgoing feeders. This compartment houses molded case circuit breakers (MCCBs), miniature circuit breakers (MCBs), and other protective devices to ensure safe power distribution. Power factor correction equipment, harmonic filters, and energy metering systems are often integrated into this section, optimizing power quality and enabling accurate consumption monitoring.
Troubleshooting and Maintenance of Box Substations
Common Issues and Diagnostic Techniques
Box substations may encounter various issues during operation, requiring prompt identification and resolution. Overheating problems often stem from loose connections, overloading, or inadequate ventilation. Diagnostic techniques such as thermal imaging and partial discharge testing help detect hotspots and insulation weaknesses. Electrical faults, including short circuits and ground faults, necessitate thorough investigation using insulation resistance testing and relay coordination studies. Monitoring systems play a crucial role in early detection of anomalies, enabling proactive maintenance and minimizing downtime.
Preventive Maintenance Strategies
Implementing effective preventive maintenance strategies is crucial for ensuring the longevity and reliability of box substations. Regular visual inspections help identify signs of wear, corrosion, or damage to components. Periodic testing of protective devices, including circuit breakers and relays, ensures their proper functioning during fault conditions. Oil analysis for oil-filled transformers provides valuable insights into insulation health and potential contamination. Cleaning and tightening of connections, along with lubrication of moving parts, contribute to optimal performance and reduced maintenance costs.
Upgrade and Modernization Considerations
As technology advances and power requirements evolve, upgrading and modernizing box substations become essential considerations. Retrofitting older substations with smart monitoring systems enhances remote diagnostics and predictive maintenance capabilities. Replacing outdated switchgear with modern, more efficient alternatives improves reliability and reduces maintenance needs. Implementing advanced protection schemes and communication protocols enables better integration with smart grid systems. Evaluating the cost-benefit analysis of upgrades versus complete replacement ensures informed decision-making for long-term substation management.
Conclusion
Box substations represent a critical component in modern power distribution systems, offering compact and efficient solutions for various applications. Understanding their classification, structure, and troubleshooting techniques is essential for professionals involved in their design, operation, and maintenance. By implementing proper maintenance strategies and staying abreast of technological advancements, organizations can ensure the reliable and efficient operation of box substations, contributing to a stable and resilient power infrastructure.
