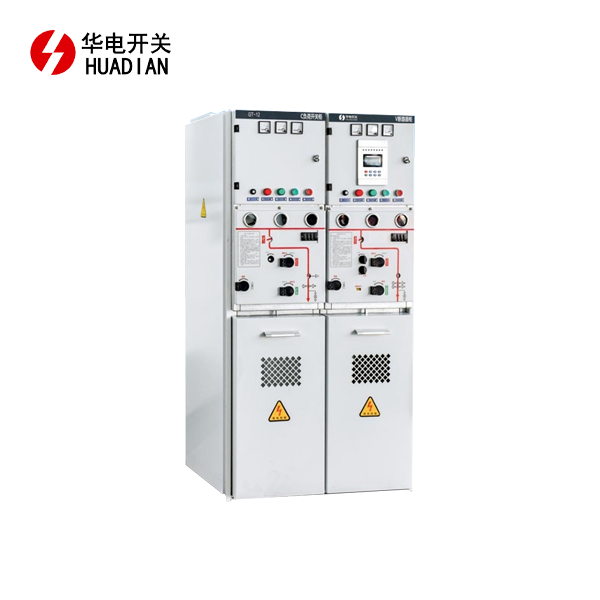

Insulation Deterioration and Breakdown
Causes of Insulation Deterioration
Insulation deterioration in high voltage switchgear is often a gradual process influenced by multiple environmental and operational factors. Excessive humidity can introduce moisture into insulating materials, leading to reduced dielectric performance, while large temperature fluctuations may cause expansion and contraction, resulting in micro-cracks. Dust, chemical contaminants, and corrosive gases can also interact with insulation surfaces, accelerating aging. Repeated electrical stresses, such as overvoltages and transient surges, further weaken the insulation. Combined, these factors contribute to partial discharges, gradual loss of insulating capacity, and, if unaddressed, eventual insulation failure.
Detection Methods
Early detection of insulation degradation is critical to maintain the reliability of switchgear systems and prevent costly failures. Advanced diagnostic techniques are widely employed, including partial discharge measurements, which detect minute electrical discharges within the insulation. Tan delta testing assesses the material's dielectric loss factor to identify weakening insulation, while infrared thermography helps locate hotspots caused by electrical or thermal stresses. Continuous monitoring of these parameters, alongside trend analysis over time, allows operators to anticipate potential failures, schedule timely maintenance, and ensure the long-term operational safety of high voltage equipment.
Remedial Actions
Mitigating insulation deterioration requires a combination of preventive and corrective strategies. Routine maintenance often includes thorough cleaning to remove dust and contaminants and controlled drying to eliminate absorbed moisture. Applying specialized insulating coatings can enhance surface properties and provide an additional protective barrier against environmental stresses. In cases of severe degradation, replacement of damaged components may be necessary. Adopting a comprehensive maintenance plan, combined with high-quality materials and adherence to operational limits, not only restores insulation performance but also prolongs the service life of switchgear and minimizes the risk of unexpected outages.
Mechanical Malfunctions in Operating Mechanisms
Common Mechanical Issues
Mechanical components within high voltage switchgear, including springs, linkages, and actuators, are prone to wear, misalignment, and fatigue over time. These problems can lead to sluggish operation, incomplete opening or closing of contacts, and elevated contact resistance, potentially compromising system reliability. Contributing factors include insufficient lubrication, exposure to environmental stresses such as temperature fluctuations and humidity, and normal operational wear. Understanding these common mechanical issues is essential for implementing effective maintenance strategies that ensure safe, smooth, and consistent switchgear performance.
Diagnostic Approaches
Detecting mechanical malfunctions requires a combination of detailed visual inspections and systematic performance testing. Techniques such as contact travel analysis, timing tests, and dynamic contact resistance measurements provide valuable insights into the operational integrity of moving components. Vibration analysis is particularly useful for identifying early signs of bearing wear, misalignment, or other mechanical irregularities. By employing these diagnostic tools, operators can proactively address potential failures, reduce unplanned downtime, and maintain the long-term reliability and safety of high voltage switchgear systems.
Rectification Strategies
Addressing mechanical faults typically involves careful adjustments, proper lubrication, and replacement of worn or damaged components. Routine maintenance should include verifying the correct tension of springs, ensuring proper alignment of linkages, and confirming smooth operation of all moving parts. In certain cases, retrofitting older mechanisms with modern, low-maintenance components can substantially enhance reliability and reduce the frequency of mechanical failures. Consistent preventive care, combined with timely intervention, ensures that operating mechanisms continue to function efficiently, safeguarding both equipment performance and overall electrical system safety.
Electrical Contact Degradation
Causes of Contact Deterioration
Electrical contacts in high voltage switchgear are exposed to extreme electrical and mechanical stresses during normal operation and fault conditions. Repeated arcing, high-temperature oxidation, and mechanical wear can progressively damage contact surfaces, leading to pitting, erosion, and increased resistance. These defects cause localized heating, which further accelerates deterioration and may compromise the reliability of the switchgear. Understanding the underlying causes of contact degradation is critical for designing effective maintenance strategies and selecting materials that can withstand high electrical loads over extended operational lifetimes.
Assessment Techniques
Evaluating the condition of electrical contacts requires a combination of visual inspection and precise electrical measurements. Micro-ohm testing can identify increases in contact resistance, signaling early stages of wear. Dynamic contact resistance testing provides real-time insights into how contacts behave under load, revealing performance under operational stresses. Advanced methods, such as high-speed photography or thermal imaging during switching events, allow detailed observation of arcing patterns and erosion trends. These diagnostic approaches enable predictive maintenance, helping operators address issues before they escalate into system failures or costly downtime.
Mitigation and Repair Methods
Mitigating contact degradation involves cleaning, resurfacing, or replacing worn contact elements to restore optimal performance. Using advanced materials with enhanced arc-resistant properties or applying specialized surface treatments can significantly extend contact life. In some cases, upgrading to modern vacuum or SF6 interrupters improves switching efficiency and reduces maintenance frequency. Preventive measures, such as proper alignment of contacts and routine application of lubricants, help minimize wear and ensure consistent electrical performance. Regular monitoring combined with timely maintenance ensures high reliability and prolongs the operational lifespan of high voltage switchgear.
Conclusion
Effective management of high voltage switchgear faults requires a proactive approach combining regular inspections, advanced diagnostics, and timely interventions. By addressing insulation deterioration, mechanical malfunctions, and contact degradation promptly, operators can ensure the reliability and longevity of their switchgear assets. Implementing a comprehensive maintenance strategy, leveraging modern diagnostic tools, and staying informed about technological advancements in switchgear design are key to minimizing downtime and optimizing system performance.
