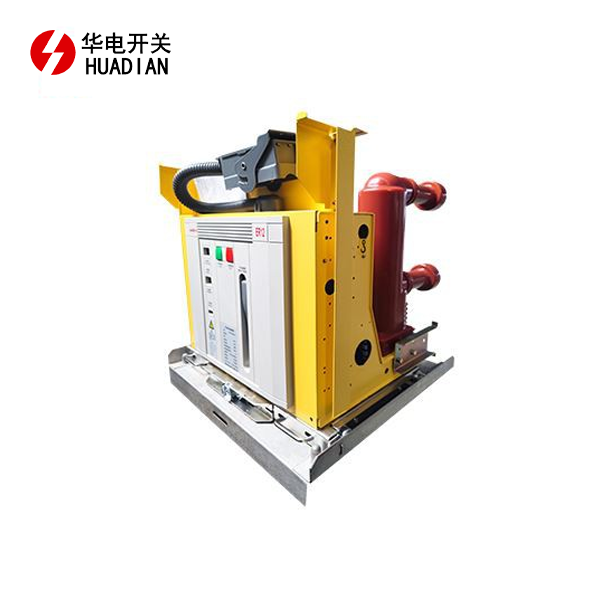

Mechanical Failures in Indoor Vacuum Circuit Breakers
Worn Operating Mechanisms
One of the most prevalent issues with indoor vacuum circuit breakers is the deterioration of operating mechanisms. Over time, mechanical parts such as springs, linkages, and latches can wear out, leading to sluggish or incomplete operation. This wear can result in delayed tripping or failure to open/close the circuit when necessary. To address this problem, regular inspection and lubrication of moving parts are essential. In cases of severe wear, replacement of the affected components may be necessary to restore proper functionality.
Misalignment of Contacts
Misalignment of contacts is another common mechanical issue that can affect indoor vacuum circuit breakers. This misalignment can occur due to repeated operation, vibration, or improper installation. When contacts are not properly aligned, it can lead to arcing, increased contact resistance, and potential failure of the breaker to interrupt the current effectively. Correcting this issue involves carefully adjusting the contact alignment according to manufacturer specifications. In some cases, specialized tools and expertise may be required to ensure precise alignment.
Stuck or Binding Mechanisms
Indoor vacuum circuit breakers can sometimes experience stuck or binding mechanisms, preventing smooth operation. This problem can be caused by accumulated dirt, debris, or corrosion within the breaker assembly. To resolve this issue, a thorough cleaning of the mechanism is necessary. Using appropriate solvents and lubricants, technicians can remove contaminants and restore free movement to the breaker's mechanical components. Regular maintenance schedules should include cleaning procedures to prevent such issues from occurring.
Electrical Malfunctions in Vacuum Interrupters
Vacuum Loss in Interrupters
The integrity of the vacuum within the interrupter chambers is critical for the proper functioning of indoor vacuum circuit breakers. Over time, small leaks can develop, compromising the vacuum and reducing the breaker's ability to extinguish arcs effectively. Detecting vacuum loss often requires specialized equipment to measure the pressure within the interrupter. If a leak is confirmed, the entire vacuum interrupter typically needs to be replaced, as repairs to the vacuum seal are generally not feasible in the field.
Contact Erosion and Degradation
Contact erosion is an inevitable process in vacuum circuit breakers due to the high-energy arcs that occur during circuit interruption. As contacts erode, the distance between them increases, potentially leading to reduced interruption capability. Regular inspection of contact wear is crucial, with replacement necessary when erosion reaches manufacturer-specified limits. Some modern indoor vacuum circuit breakers feature wear indicators that simplify this assessment process.
Insulation Breakdown
Insulation breakdown within the vacuum interrupter or surrounding components can lead to serious electrical failures. This issue may be caused by contamination, moisture ingress, or aging of insulating materials. Symptoms of insulation breakdown include partial discharges, elevated temperatures, or unexpected tripping of the breaker. Addressing this problem often requires comprehensive testing of the insulation system and may necessitate replacement of affected components or the entire interrupter assembly.
Control and Protection System Issues
Faulty Trip Coils or Close Coils
The trip and close coils are essential components of the control system in indoor vacuum circuit breakers. These coils can fail due to electrical overload, insulation breakdown, or mechanical damage. A faulty trip coil may prevent the breaker from opening when required, while a defective close coil can hinder the breaker's ability to close and restore power. Diagnosing coil problems typically involves resistance measurements and functional tests. Replacement of faulty coils is usually the most effective solution, as repairs are often not practical or cost-effective.
Malfunctioning Auxiliary Contacts
Auxiliary contacts in indoor vacuum circuit breakers provide important status information and control signals to associated equipment. These contacts can become misaligned, worn, or contaminated, leading to incorrect signaling or control issues. Troubleshooting auxiliary contact problems involves visual inspection, continuity testing, and verification of proper operation during breaker cycling. Cleaning, adjustment, or replacement of auxiliary contacts may be necessary to restore correct functionality.
Protection Relay Calibration Errors
Modern indoor vacuum circuit breakers often incorporate sophisticated protection relays that monitor various electrical parameters. Incorrect calibration or settings in these relays can lead to nuisance tripping or failure to trip when required. Addressing this issue requires a thorough review of relay settings, testing of trip characteristics, and potential recalibration. It's crucial to ensure that protection settings are appropriate for the specific application and comply with relevant standards and grid requirements.
Conclusion
Indoor vacuum circuit breakers play a vital role in electrical distribution systems, and addressing common issues promptly is essential for maintaining their reliability and safety. By understanding and effectively resolving mechanical failures, electrical malfunctions, and control system problems, facility managers and technicians can significantly extend the lifespan of these critical components. Regular maintenance, including inspection, cleaning, and testing, is key to preventing many of the issues discussed. When faced with complex problems, consulting with manufacturers or specialized service providers can ensure proper diagnosis and repair, ultimately contributing to a more robust and dependable electrical infrastructure.
