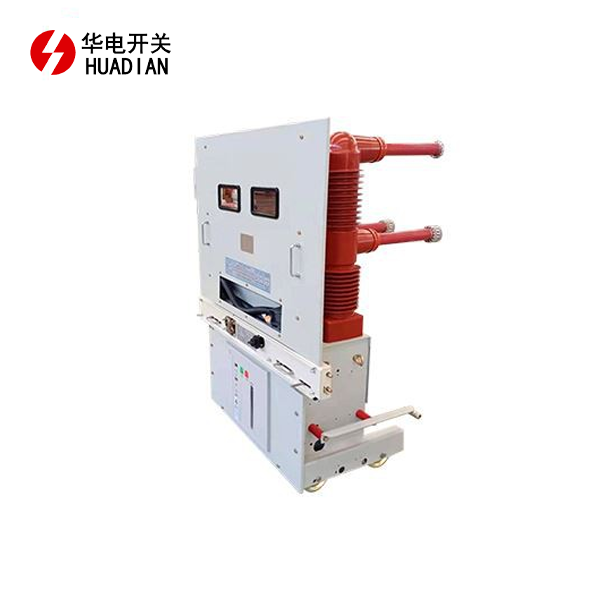

Understanding Medium Voltage Vacuum Circuit Breakers
Principles of Operation
Medium voltage vacuum circuit breakers operate on the principle of interrupting current flow in a high-vacuum environment. When a fault is detected, the breaker's contacts separate, creating an arc that is quickly extinguished due to the lack of ionizable medium in the vacuum. This rapid arc extinction capability makes vacuum circuit breakers highly effective in medium voltage applications, typically ranging from 1kV to 38kV.
Components and Construction
The main components of a medium voltage vacuum circuit breaker include the vacuum interrupter, operating mechanism, and control circuitry. The vacuum interrupter houses the contacts within a sealed chamber, maintaining a high vacuum level. The operating mechanism, often spring-loaded or magnetically actuated, provides the necessary force to open and close the contacts swiftly. Control circuits monitor system conditions and trigger breaker operation when required.
Advantages Over Other Circuit Breaker Types
Vacuum circuit breakers offer several advantages over oil or air circuit breakers in medium voltage applications. They require minimal maintenance, have a longer operational life, and provide superior arc quenching capabilities. Additionally, their compact size and environmental friendliness make them ideal for modern power distribution systems. The absence of oil eliminates the risk of fire and reduces environmental concerns associated with oil leaks.
Common Problems in Medium Voltage Vacuum Circuit Breakers
Contact Wear and Erosion
One of the most prevalent issues in medium voltage vacuum circuit breakers is contact wear and erosion. Over time, the repeated opening and closing of contacts, especially during fault interruption, can lead to material loss and surface degradation. This wear can result in increased contact resistance, reduced current carrying capacity, and potentially compromised vacuum integrity. Regular inspection and measurement of contact wear are crucial to prevent operational failures.
Vacuum Integrity Loss
The effectiveness of a vacuum circuit breaker heavily depends on maintaining a high vacuum within the interrupter chamber. Loss of vacuum integrity can occur due to various factors, including material outgassing, minute leaks in seals, or mechanical damage. When vacuum levels deteriorate, the breaker's ability to interrupt current effectively is compromised, potentially leading to arc re-ignition and failure to clear faults. Monitoring vacuum levels and replacing interrupters when necessary are essential maintenance practices.
Mechanical Failures
The operating mechanism of medium voltage vacuum circuit breakers is subject to mechanical stress and wear. Common mechanical failures include issues with spring mechanisms, linkages, and damping systems. These problems can manifest as slow operation, incomplete contact closure or opening, or complete failure to operate. Regular lubrication, adjustment of mechanisms, and replacement of worn parts are crucial to prevent mechanical failures that could render the breaker inoperable during critical moments.
Diagnosis and Troubleshooting Techniques
Visual Inspection and Routine Checks
Regular visual inspections form the first line of defense against potential vacuum circuit breaker problems. These checks should include examining the breaker's external condition, looking for signs of overheating, checking for loose connections, and inspecting the integrity of insulation materials. Routine checks also involve verifying the alignment of moving parts, ensuring proper lubrication, and confirming the correct operation of auxiliary contacts and position indicators. These simple yet effective measures can often reveal developing issues before they escalate into major failures.
Electrical Testing and Measurements
Comprehensive electrical testing is essential for assessing the health of medium voltage vacuum circuit breakers. Key tests include contact resistance measurement, insulation resistance testing, and timing tests to evaluate the breaker's operating speed. Advanced diagnostic techniques such as partial discharge testing can detect degradation in insulation systems. Additionally, power factor testing helps assess the overall condition of the breaker's insulation. These electrical tests provide valuable data on the breaker's performance and can indicate potential problems that may not be visible during physical inspections.
Specialized Diagnostic Tools and Techniques
Modern diagnostic tools have significantly enhanced the ability to detect and analyze problems in vacuum circuit breakers. Vacuum integrity testers can accurately measure the level of vacuum within interrupter chambers without the need for disassembly. Dynamic contact resistance measurement (DCRM) techniques allow for assessing contact condition during operation, providing insights into wear patterns and alignment issues. Thermal imaging cameras can identify hotspots that may indicate loose connections or overloaded components. These specialized tools, when used by trained professionals, can provide early warning of developing issues and guide targeted maintenance efforts.
Effective Solutions and Maintenance Practices
Preventive Maintenance Strategies
Implementing a robust preventive maintenance program is crucial for ensuring the reliability of medium voltage vacuum circuit breakers. This strategy should include scheduled inspections, cleaning, and lubrication of mechanical components. Regular testing of control circuits, including auxiliary contacts and trip coils, helps prevent unexpected failures. Documenting maintenance activities and tracking breaker performance over time can reveal trends and aid in predicting potential issues before they occur. Establishing a clear maintenance schedule based on manufacturer recommendations and operational experience is key to maximizing breaker longevity.
Repair and Replacement Guidelines
When problems are identified, clear guidelines for repair or replacement decisions are essential. Minor issues such as loose connections or worn auxiliary contacts can often be repaired on-site. However, more significant problems like vacuum loss or severe contact erosion typically require replacement of the vacuum interrupter. It's crucial to use manufacturer-approved parts and follow proper procedures during repairs to maintain the breaker's integrity and performance. In some cases, especially with older breakers, a cost-benefit analysis may favor complete replacement over extensive repairs.
Upgrading and Modernization Options
As technology advances, upgrading older vacuum circuit breakers can be a cost-effective way to improve reliability and performance. Modernization options may include retrofitting with advanced control systems, installing condition monitoring sensors, or upgrading to more efficient vacuum interrupters. These upgrades can extend the operational life of existing breakers, enhance their functionality, and improve overall system reliability. When considering upgrades, it's important to evaluate compatibility with existing infrastructure and assess the long-term benefits against the investment required.
Conclusion
Medium voltage vacuum circuit breakers play a pivotal role in electrical distribution systems, providing critical protection against faults and overloads. Understanding common problems such as contact wear, vacuum loss, and mechanical failures is essential for maintaining these vital components. By implementing robust diagnostic techniques, preventive maintenance strategies, and timely repair or replacement practices, facility managers and electrical engineers can significantly enhance the reliability and longevity of their vacuum circuit breakers. Staying informed about technological advancements and considering modernization options when appropriate can further improve system performance and efficiency.
