Understanding Metal Oxide Arresters with All-Insulated Compound Coat
Composition and Structure

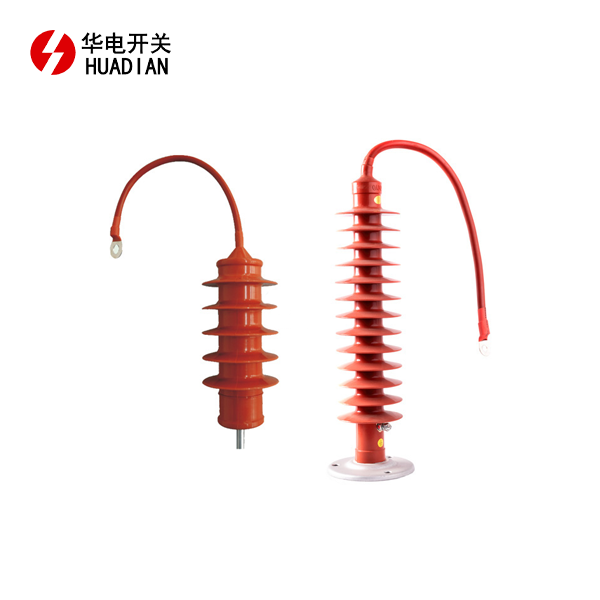

Metal oxide arresters with all-insulated compound coat are sophisticated devices designed to protect electrical systems from overvoltage events. At their core, these arresters utilize metal oxide varistors (MOVs), typically composed of zinc oxide with small amounts of other metal oxides. The MOVs are stacked in series and encased in a specially formulated all-insulated compound coat.
This innovative coating serves multiple purposes. It provides excellent electrical insulation, protecting the internal components from environmental factors such as moisture and contaminants. Additionally, the compound coat enhances the arrester's mechanical strength, making it more resistant to physical stresses and impacts.
Operating Principle
The functionality of metal oxide arresters with all-insulated compound coat is based on the nonlinear resistance properties of MOVs. Under normal operating conditions, the arrester exhibits high resistance, allowing only a minimal leakage current to flow. However, when an overvoltage occurs, the resistance of the MOVs decreases rapidly, creating a low-impedance path for the surge current to be diverted to ground.
This swift response time, typically in the nanosecond range, is crucial for effective protection against fast-rising transient overvoltages. Once the overvoltage event has passed, the arrester quickly returns to its high-resistance state, ready to respond to future surge events.
Advantages over Traditional Arresters
Metal oxide arresters with all-insulated compound coat offer several advantages over traditional surge arresters. The all-insulated design eliminates the need for porcelain housings, reducing the risk of explosive failure and improving safety in high-energy fault conditions. The compound coat also provides superior pollution performance, making these arresters ideal for use in harsh environmental conditions.
Furthermore, the compact and lightweight nature of these arresters allows for easier installation and reduces the structural load on supporting structures. Their excellent aging characteristics and resistance to partial discharges contribute to a longer service life and reduced maintenance requirements.
Applications in Power Grid Safety
Substation Protection
In substations, metal oxide arresters with all-insulated compound coat play a critical role in safeguarding expensive and vital equipment such as transformers, switchgear, and control systems. These arresters are strategically placed at key points within the substation to intercept and divert overvoltage surges before they can reach sensitive equipment.
The robust construction and high energy-handling capability of these arresters make them particularly suitable for substation environments, where they must withstand severe electrical and environmental stresses. By protecting substation equipment, these arresters help maintain the reliability and longevity of critical power infrastructure components.
Transmission Line Protection
Along transmission lines, metal oxide arresters with all-insulated compound coat are instrumental in mitigating the effects of lightning strikes and switching surges. These arresters are typically installed at line terminations, cable connections, and at regular intervals along overhead lines.
The all-insulated design is particularly beneficial in transmission line applications, as it reduces the risk of flashovers and minimizes the need for costly line outages for maintenance or replacement. The arrester's ability to withstand multiple surge events without degradation ensures continuous protection for the transmission network.
Distribution Network Protection
In distribution networks, metal oxide arresters with all-insulated compound coat are employed to protect transformers, cables, and other distribution equipment from overvoltages. These arresters are often installed on pole-top transformers, at the entrances of underground cable systems, and at critical points within the distribution grid.
The compact size and lightweight nature of these arresters make them ideal for retrofit applications in existing distribution systems. Their superior pollution performance ensures reliable operation in urban environments where air pollution and contamination can be significant challenges.
Impact on Power Grid Reliability and Safety
Reduction of Equipment Failures
The implementation of metal oxide arresters with all-insulated compound coat significantly reduces the incidence of equipment failures due to overvoltage events. By effectively limiting voltage surges to levels below the withstand capability of protected equipment, these arresters prevent insulation breakdown and component damage.
This reduction in equipment failures translates to improved reliability of the power grid, fewer unplanned outages, and reduced maintenance and replacement costs. The long-term benefit is a more stable and resilient electrical infrastructure capable of withstanding various electrical disturbances.
Enhancement of System Stability
Metal oxide arresters with all-insulated compound coat contribute to overall system stability by preventing voltage excursions that could lead to widespread disturbances or blackouts. By rapidly suppressing overvoltages, these arresters help maintain voltage levels within acceptable limits, reducing the risk of cascading failures in the power system.
The fast response time and high energy absorption capability of these arresters are particularly crucial during severe weather events or switching operations, where multiple overvoltage events may occur in rapid succession. Their reliable performance under such conditions helps to maintain grid stability and prevent large-scale power interruptions.
Improvement of Power Quality
Beyond their primary role in overvoltage protection, metal oxide arresters with all-insulated compound coat also contribute to improved power quality. By limiting voltage spikes and transients, these arresters help maintain a more consistent voltage profile throughout the power system.
This improvement in power quality is beneficial for sensitive electronic equipment and industrial processes that require stable voltage levels. By reducing the occurrence of voltage-related disturbances, these arresters help utilities meet increasingly stringent power quality standards and improve customer satisfaction.
Conclusion
Metal oxide arresters with all-insulated compound coat represent a significant advancement in power grid protection technology. Their superior performance, durability, and versatility make them indispensable components in modern electrical systems. By effectively mitigating overvoltage risks, these arresters enhance the safety, reliability, and stability of power grids across various voltage levels and applications. As power systems continue to evolve and face new challenges, the role of these advanced arresters in safeguarding our electrical infrastructure becomes increasingly crucial, ensuring a more resilient and secure energy future for communities worldwide.
