Exploring the Different Design Options for Embedded Poles

Embedded poles are a crucial component in modern vacuum circuit breakers, offering enhanced performance and reliability in electrical systems. These innovative designs incorporate the current-carrying conductor directly within an insulating material, typically epoxy resin. This integration results in a more compact, efficient, and durable structure compared to traditional designs. As we delve into the world of embedded poles, we'll discover various design options that cater to different applications and requirements. From solid insulation systems to hybrid designs, each approach brings unique advantages to the table, revolutionizing the way we think about circuit breaker technology.

Solid Insulation Embedded Pole Designs

Epoxy Resin-Based Embedded Poles

Epoxy resin-based embedded poles are among the most common designs in modern vacuum circuit breakers. These poles utilize a high-quality epoxy resin as the primary insulating material, encapsulating the current-carrying conductor. The epoxy resin offers excellent electrical insulation properties, mechanical strength, and thermal stability. This design option provides several benefits, including:

- Enhanced dielectric strength

- Improved resistance to environmental factors

- Reduced maintenance requirements

- Compact size and lightweight construction

The manufacturing process for epoxy resin-based embedded poles involves carefully mixing the resin with hardeners and other additives to achieve the desired properties. The mixture is then cast around the conductor using specialized molds and curing techniques to ensure uniform insulation and void-free structure.

Silicone Rubber Embedded Poles

Silicone rubber is another material used in embedded pole designs, offering unique advantages over traditional epoxy resin. Silicone rubber embedded poles are known for their flexibility, excellent thermal properties, and resistance to aging. Key features of this design include:

- Superior flexibility and impact resistance

- Excellent performance in extreme temperatures

- Hydrophobic surface properties

- Resistance to ultraviolet radiation

The manufacturing process for silicone rubber embedded poles involves injection molding or compression molding techniques. This allows for precise control over the pole's shape and dimensions, resulting in a high-quality, uniform product.

Cycloaliphatic Epoxy Resin Embedded Poles

Cycloaliphatic epoxy resin is a specialized type of epoxy that offers superior weathering resistance and electrical properties compared to standard epoxy resins. Embedded poles using this material are particularly well-suited for outdoor applications. Benefits of cycloaliphatic epoxy resin embedded poles include:

- Exceptional resistance to environmental degradation

- High tracking and erosion resistance

- Excellent electrical properties in humid conditions

- Long-term stability and reliability

The manufacturing process for these poles is similar to that of standard epoxy resin poles but requires careful control of curing conditions to achieve optimal properties.

Hybrid Insulation Embedded Pole Designs

Epoxy-Fiberglass Composite Embedded Poles

Epoxy-fiberglass composite embedded poles combine the insulating properties of epoxy resin with the mechanical strength of fiberglass reinforcement. This hybrid design offers a balance between electrical performance and structural integrity. Key advantages include:

- Enhanced mechanical strength and impact resistance

- Improved thermal expansion characteristics

- Reduced weight compared to solid epoxy designs

- Customizable properties through fiber orientation

The manufacturing process for epoxy-fiberglass composite embedded poles typically involves vacuum-assisted resin transfer molding (VARTM) or filament winding techniques. These methods ensure uniform distribution of fibers and resin throughout the pole structure.

Epoxy-Mica Composite Embedded Poles

Epoxy-mica composite embedded poles incorporate mica flakes or particles within the epoxy resin matrix. This combination enhances the pole's electrical and thermal properties, making it suitable for high-voltage applications. Benefits of this design include:

- Improved partial discharge resistance

- Enhanced thermal conductivity

- Increased dielectric strength

- Better resistance to electrical treeing

The manufacturing process for epoxy-mica composite embedded poles requires careful dispersion of mica particles within the epoxy resin. Advanced mixing and casting techniques are employed to ensure uniform distribution and optimal performance.

Multi-Layer Insulation Embedded Poles

Multi-layer insulation embedded poles utilize a combination of different insulating materials in a layered structure. This design approach allows for optimization of electrical, mechanical, and thermal properties throughout the pole. Key features include:

- Tailored insulation properties for specific requirements

- Improved stress distribution within the pole

- Enhanced resistance to electrical and thermal aging

- Flexibility in design for various applications

The manufacturing process for multi-layer insulation embedded poles involves sequential application of different insulating materials, often using specialized molding or wrapping techniques. Careful control of layer thicknesses and interfaces is crucial for achieving optimal performance.

Advanced Embedded Pole Design Concepts

Nanocomposite Embedded Poles

Nanocomposite embedded poles represent a cutting-edge approach to insulation design, incorporating nanoscale particles or structures within the insulating matrix. This technology offers potential improvements in various aspects of pole performance. Key advantages include:

- Enhanced dielectric strength and partial discharge resistance

- Improved thermal conductivity and heat dissipation

- Increased resistance to electrical treeing and aging

- Potential for reduced size and weight

The manufacturing process for nanocomposite embedded poles requires advanced dispersion techniques to ensure uniform distribution of nanoparticles within the insulating material. Careful selection of nanofillers and optimization of their concentration is crucial for achieving desired properties.

Smart Embedded Poles with Integrated Sensors

Smart embedded poles incorporate sensors and monitoring technologies directly within the pole structure. This innovative design allows for real-time monitoring of pole conditions and performance. Benefits of smart embedded poles include:

- Continuous monitoring of temperature, partial discharges, and other parameters

- Early detection of potential issues or degradation

- Improved asset management and maintenance planning

- Enhanced reliability and safety of circuit breaker operation

The manufacturing process for smart embedded poles involves careful integration of sensors and communication modules within the insulating structure. Advanced molding techniques and specialized sensor placement strategies are employed to ensure reliable operation without compromising the pole's insulation integrity.

Biodegradable and Eco-Friendly Embedded Poles

As environmental concerns grow, research into biodegradable and eco-friendly embedded pole designs is gaining traction. These innovative concepts aim to reduce the environmental impact of circuit breaker components. Key features of this emerging design approach include:

- Use of renewable and biodegradable materials for insulation

- Reduced carbon footprint in manufacturing and disposal

- Improved recyclability and end-of-life management

- Potential for reduced toxicity and environmental impact

The development of biodegradable and eco-friendly embedded poles is still in its early stages, with ongoing research focusing on materials such as bio-based resins and natural fiber reinforcements. Manufacturing processes for these poles are being adapted to accommodate the unique properties of sustainable materials while maintaining the required performance standards.

Conclusion

The world of embedded pole design is diverse and ever-evolving, offering a wide range of options to meet the varying needs of modern electrical systems. From traditional solid insulation designs to cutting-edge smart and eco-friendly concepts, each approach brings unique advantages to the table. As technology continues to advance, we can expect further innovations in embedded pole design, leading to even more efficient, reliable, and sustainable vacuum circuit breakers. By understanding the different design options available, electrical engineers and system designers can make informed decisions to optimize their circuit breaker installations for specific applications and requirements.

Contact Us

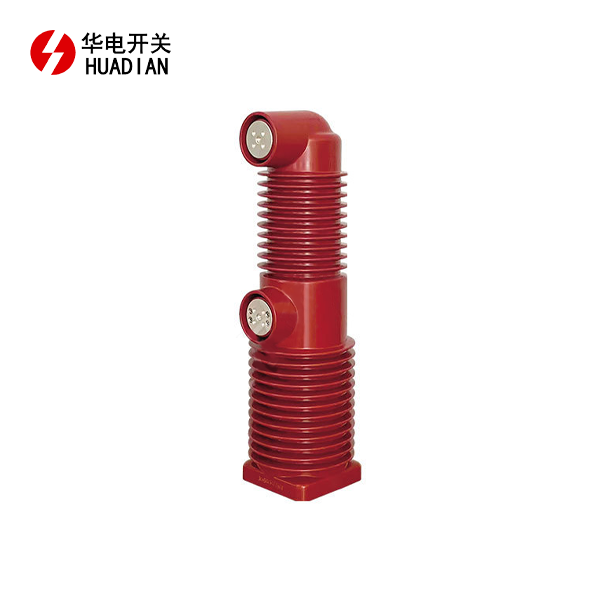

Are you looking for high-quality vacuum circuit breakers with advanced embedded pole technology, such as the EP40.5/3150-31.5 embedded pole? Shaanxi Huadian Electric Co., Ltd. offers a wide range of innovative solutions to meet your specific needs. Contact us today at austinyang@hdswitchgear.com/rexwang@hdswitchgear.com/pannie@hdswitchgear.com​​​​​​​ to learn more about our products and how we can help enhance the reliability and performance of your electrical systems.
