Understanding High Voltage Circuit Breakers
The Role of Circuit Breakers in Power Systems
High voltage circuit breakers play a pivotal role in protecting electrical power systems from overloads and short circuits. These sophisticated devices are designed to interrupt current flow swiftly and effectively, preventing damage to expensive equipment and ensuring the safety of personnel. By rapidly opening contacts and extinguishing the resulting arc, circuit breakers maintain the integrity of power distribution networks and facilitate the isolation of faulty sections for maintenance or repairs.
Evolution of Circuit Breaker Technology
The history of circuit breakers is marked by significant technological advancements. Early oil circuit breakers gave way to air blast and SF6 technologies, each offering improvements in performance and reliability. The introduction of vacuum circuit breakers represented a quantum leap in circuit breaker design, offering a more compact, environmentally friendly alternative. This evolution has been driven by the need for more efficient, reliable, and sustainable solutions in the face of growing power demands and environmental concerns.
Key Performance Parameters
Several critical parameters define the performance of high voltage circuit breakers. These include breaking capacity, making capacity, rated normal current, and short-time withstand current. The speed of operation, particularly the opening and closing times, is crucial for effective protection. Additionally, the number of operations a breaker can perform under load and short-circuit conditions without maintenance is a key consideration for long-term reliability and cost-effectiveness.

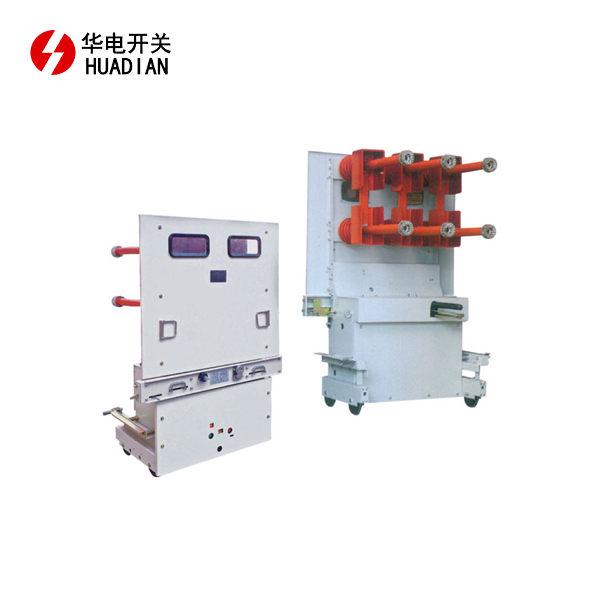

High Voltage Vacuum Circuit Breakers: A Closer Look
Principles of Operation
High voltage vacuum circuit breakers operate on a simple yet ingenious principle. When the contacts separate, the current continues to flow through an arc in the vacuum. As the contacts continue to separate, the arc is stretched and cooled, eventually extinguishing at the first current zero. The vacuum's excellent dielectric strength prevents reignition, effectively interrupting the current. This process occurs in milliseconds, providing rapid and reliable circuit interruption.
Advantages of Vacuum Technology
Vacuum circuit breakers offer numerous advantages over other technologies. Their compact design allows for space-saving installations, crucial in modern substations. The absence of oil or gas eliminates environmental concerns associated with leaks or disposal. Moreover, the sealed vacuum interrupter requires minimal maintenance, contributing to lower lifecycle costs. The high dielectric strength of vacuum also allows for shorter contact gaps, reducing wear and extending operational life.
Applications and Limitations
While high voltage vacuum circuit breakers excel in medium voltage applications up to 40.5 kV, recent advancements have pushed their use into higher voltage ranges. They are particularly well-suited for frequent switching operations, making them ideal for capacitor and reactor switching. However, their application in ultra-high voltage systems remains limited due to the challenges in maintaining vacuum integrity over large contact gaps required for such voltages.
SF6 Circuit Breakers: Technical Overview
SF6 Gas Properties and Arc Quenching
Sulfur hexafluoride (SF6) is a synthetic gas with remarkable insulating and arc-quenching properties. In SF6 circuit breakers, the gas is compressed and blown across the arc during contact separation. The SF6 molecules absorb energy from the arc, dissociating and recombining in a process that effectively cools and extinguishes the arc. This efficient arc quenching allows SF6 breakers to handle higher voltages and fault currents compared to other technologies.
Design and Construction Features
SF6 circuit breakers are engineered to maximize the gas's arc-extinguishing capabilities. They typically feature a puffer mechanism that compresses the gas and directs it towards the arc. The interrupter unit is sealed to prevent gas leakage, with sophisticated monitoring systems to detect any loss of gas pressure. Advanced designs incorporate self-blast principles, where the arc's energy itself generates the gas flow needed for extinction, improving efficiency and reducing the mechanical stress on the operating mechanism.
Environmental Considerations
While SF6 is an excellent insulating medium, it is also a potent greenhouse gas with a global warming potential 23,500 times that of CO2. This environmental concern has led to strict regulations regarding the use and handling of SF6. Manufacturers and utilities are required to implement rigorous procedures to prevent leaks and ensure proper recycling of SF6 at the end of equipment life. These environmental considerations have spurred research into alternative gases and technologies, including the development of more advanced vacuum circuit breakers for higher voltage applications.
Comparative Analysis: Vacuum vs SF6 Circuit Breakers
Performance in High Voltage Applications
When comparing high voltage vacuum circuit breakers with SF6 breakers, several performance aspects come into play. SF6 breakers traditionally held an advantage in ultra-high voltage applications due to their superior arc-quenching capabilities. However, advancements in vacuum interrupter technology have narrowed this gap, with vacuum breakers now available for applications up to 145 kV. SF6 breakers still dominate in the highest voltage ranges, but vacuum technology is rapidly evolving to challenge this dominance.
Maintenance Requirements and Operational Lifespan
One of the most significant advantages of high voltage vacuum circuit breakers is their minimal maintenance requirements. The sealed vacuum interrupter eliminates the need for periodic gas refills or oil changes, resulting in lower operational costs over the breaker's lifetime. Vacuum breakers also boast a higher number of operations before requiring maintenance, often exceeding 10,000 operations for load switching. In contrast, SF6 breakers require regular gas pressure checks and potentially gas refills, adding to their maintenance burden.
Economic and Environmental Impact
The economic considerations between vacuum and SF6 breakers extend beyond initial purchase price to total lifecycle costs. While SF6 breakers may have a lower upfront cost in some voltage ranges, the long-term expenses associated with maintenance and potential environmental liabilities often favor vacuum technology. Environmentally, vacuum breakers have a clear advantage due to the absence of greenhouse gases. The increasing focus on sustainability in the power industry is driving a shift towards vacuum technology where technically feasible, particularly in medium voltage applications.
Future Trends and Innovations
Advancements in Vacuum Interrupter Technology
The field of high voltage vacuum circuit breakers is witnessing rapid technological advancements. Research is focused on extending the voltage range of vacuum interrupters, with prototypes demonstrating feasibility at 245 kV and beyond. Innovations in contact materials and interrupter designs are improving the current interruption capabilities and reducing contact erosion. These developments are pushing the boundaries of what's possible with vacuum technology, potentially expanding its application into voltage ranges traditionally dominated by SF6 breakers.
Alternative Gases and Hybrid Solutions
In response to environmental concerns surrounding SF6, manufacturers are exploring alternative gases with lower global warming potential. Mixtures of CO2 and fluoronitriles or fluoroketones show promise as SF6 replacements in certain applications. Additionally, hybrid solutions combining vacuum interrupters with alternative gases are being developed, aiming to leverage the strengths of both technologies. These innovations could reshape the landscape of high voltage circuit breaker technology in the coming years.
Smart Grid Integration and Digitalization
The integration of circuit breakers into smart grid systems is driving innovation in both vacuum and SF6 technologies. Advanced sensors and monitoring systems are being incorporated to provide real-time data on breaker health and performance. This digital integration enables predictive maintenance strategies, optimizing operational efficiency and reliability. As power systems become more complex and dynamic, the role of intelligent circuit breakers in grid management and protection is set to expand significantly.
Conclusion
The choice between high voltage vacuum circuit breakers and SF6 circuit breakers involves careful consideration of technical, economic, and environmental factors. While SF6 breakers continue to dominate in ultra-high voltage applications, vacuum technology is rapidly advancing, offering compelling advantages in terms of maintenance, environmental impact, and operational lifespan. As the power industry evolves towards more sustainable and efficient solutions, the role of vacuum circuit breakers is likely to expand. However, ongoing innovations in both technologies ensure that the debate between vacuum and SF6 will continue to shape the future of power system protection.
