How are operating mechanisms classified?

An operating mechanism is a device that converts energy (human power, electricity, hydraulic energy, etc.) into a specific mechanical action, used to drive or control the state of another device (usually a switch, valve or clutch).

Main Components

A typical operating mechanism typically consists of the following parts:

Power Source:

Manual: Human power, via a handle, button, lever, etc.

Electric: Electric motor or electromagnet (solenoid).

Hydraulic: Pressure provided by hydraulic fluid.

Pneumatic: Pressure provided by compressed air.

Spring: Often used as an energy storage element in conjunction with other power sources.

Energy Transmission and Conversion Mechanism:

Connecting Rod Mechanism: Converts rotary motion into linear motion or more complex trajectories.

Gear Set: Changes torque and speed.

Cam Mechanism: Implements specific, nonlinear motion patterns.

Hydraulic/Pneumatic Cylinder: Converts fluid pressure into linear motion.

Actuator:

The component directly connected to the controlled device, such as an output shaft or drive rod, is used to ultimately complete the "closing" or "opening" action.

Control and Auxiliary Unit (optional but common):

Control Circuit: Receives remote or automatic signals and controls the motor or electromagnet.

Position Indicator: Displays the current status (e.g., "Open" or "Closed").

Interlock: Ensures safe and logical operation, preventing incorrect operation.

Buffer: Absorbs impact energy at the end of actuation, preventing equipment damage.



Core Functions and Requirements

The core function of an operating mechanism is to quickly, reliably, and accurately change the state of the controlled device. Key requirements include:

Sufficient operating power: There must be sufficient energy to overcome the resistance of the controlled device (such as contact pressure, frictional resistance, etc.).

High speed: Especially for protective devices such as circuit breakers, opening speed must be extremely fast to quickly interrupt fault currents.

High reliability: Reliable operation is required in emergency situations, as failure to do so could result in serious accidents.

Precise position control: The device must be accurately driven to the "closed" or "open" position and held there.



Main Application Areas and Examples

The most classic and important application of operating mechanisms is in power systems.

1. Circuit Breaker Operating Mechanism
This is the most complex and demanding application scenario for operating mechanisms.

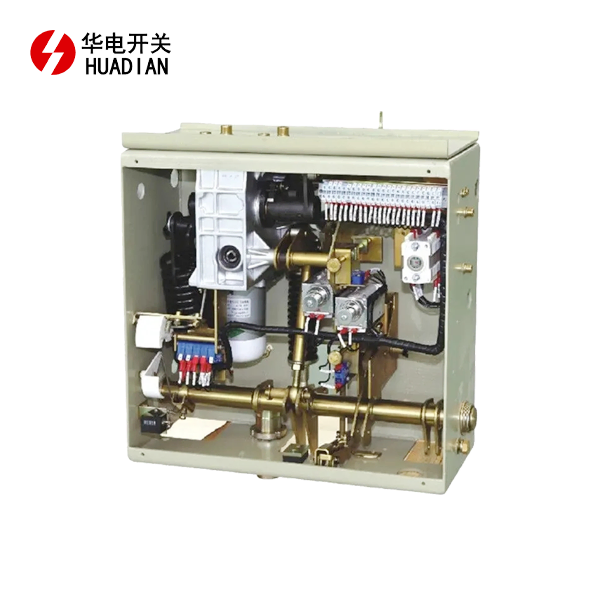

Spring Operating Mechanism:

Principle: An electric motor (or manual) charges the closing spring with energy. Operation releases the spring energy to close the circuit breaker. Simultaneously, the closing process charges the opening spring with energy.

Features: Reliable operation, fast speed, and unaffected by power supply voltage, making it the most widely used.

Electromagnetic Operating Mechanism:

Principle: Directly utilizes the enormous suction force of the electromagnet to close the circuit breaker.

Features: Simple structure, but requires a high closing current (over 100s of DC amperes), high power requirements, and is gradually being replaced by spring mechanisms.

Hydraulic Operating Mechanism:
Principle: A motor drives an oil pump to generate hydraulic pressure. During operation, high-pressure oil propels the piston, thereby actuating the circuit breaker.
Characteristics: High operating power, low noise, and rapid speed. Commonly employed in high-capacity circuit breakers for ultra-high voltage levels (e.g., 500kV and above).
Pneumatic Operating Mechanism:
Principle: Similar to hydraulic mechanisms, but utilises compressed air as the power medium.
Characteristics: Requires a stable compressed air supply and is predominantly employed in specific sectors such as railway electrification.


2.Disconnector Operating Mechanism
Typically manual, employing a handle and linkage for slow operation with distinct open/closed position indicators. Some variants incorporate electric motors or actuators for remote control.

Summary​​​​​​​



Features	Description
Essence	Intermediate devices for energy conversion and action execution
Core Tasks	Drive switchgear (such as circuit breakers and disconnectors) to reliably complete opening and closing operations
Key Requirements	Sufficient operating power, high speed, high reliability, and precise position control
Main Types	Spring mechanisms, electromagnetic mechanisms, hydraulic mechanisms, pneumatic mechanisms, manual mechanisms
Main Applications	Power systems (core applications), automotive, industrial automation, etc.
