How do I Test an ERD-12/1250-25 Vacuum INTERRUPTER for Proper Functioning?

Testing an ERD-12/1250-25 vacuum interrupter for proper functioning involves a comprehensive approach. Begin by conducting a visual inspection for any external damage or wear. Next, perform electrical tests, including contact resistance measurement and high-voltage withstand tests. Utilize specialized equipment to evaluate the vacuum integrity and measure the operating mechanism's performance. Additionally, conduct timing tests to ensure proper opening and closing sequences. Always adhere to manufacturer guidelines and safety protocols throughout the testing process. Regular testing and maintenance of the ERD-12/1250-25 vacuum interrupter are crucial for ensuring its reliability and longevity in electrical distribution systems.

Understanding the ERD-12/1250-25 Vacuum Interrupter

Key Components and Their Functions

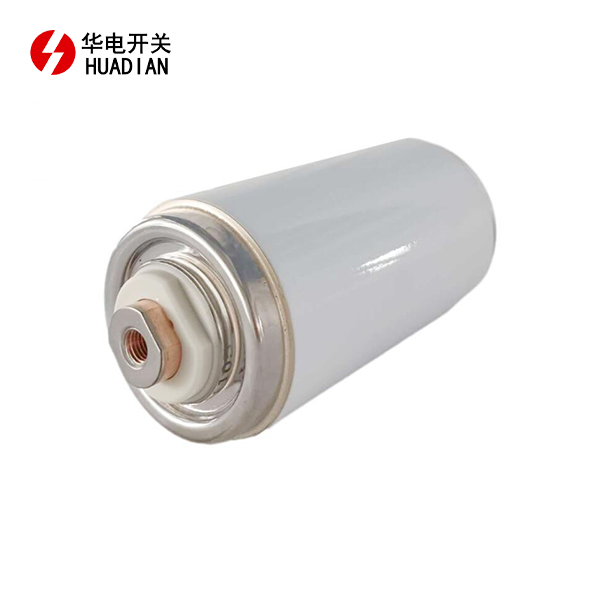

The ERD-12/1250-25 vacuum interrupter is a sophisticated device designed for efficient current interruption in medium-voltage power systems. Its primary components include the vacuum chamber, contacts, and insulating envelope. The vacuum chamber houses the contacts and provides an ideal environment for arc extinction. The contacts, typically made of copper-chromium alloy, are responsible for conducting current and separating during interruption. The insulating envelope maintains the vacuum integrity and provides electrical insulation.

Operating Principles of Vacuum Interrupters

Vacuum interrupters operate on the principle of arc extinction in a high-vacuum environment. When the contacts separate, an arc forms between them. The vacuum rapidly dissipates the arc energy, allowing for quick current interruption. This process occurs within milliseconds, making vacuum interrupters highly efficient for switching and fault protection. The ERD-12/1250-25 model is engineered to handle voltages up to 12 kV and currents up to 1250 A, with a short-circuit breaking capacity of 25 kA.

Importance of Regular Testing and Maintenance

Regular testing and maintenance of the ERD-12/1250-25 vacuum interrupter are paramount for ensuring its optimal performance and longevity. Over time, factors such as contact wear, vacuum degradation, and mechanical stress can affect the interrupter's functionality. By implementing a robust testing regimen, operators can identify potential issues before they escalate into major problems. This proactive approach not only enhances the reliability of the electrical system but also contributes to significant cost savings by preventing unplanned outages and extending the interrupter's service life.

Comprehensive Testing Procedures for ERD-12/1250-25 Vacuum Interrupters

Visual Inspection and Preliminary Checks

Begin the testing process with a thorough visual inspection of the ERD-12/1250-25 vacuum interrupter. Examine the external housing for any signs of damage, cracks, or corrosion. Check the insulator surfaces for contamination or tracking marks. Verify that all bolts and connections are properly tightened. Inspect the interrupter's bushings and terminals for any discoloration or signs of overheating. This initial assessment can reveal obvious issues and guide subsequent testing procedures.

Electrical Tests and Measurements

Electrical testing is crucial for evaluating the ERD-12/1250-25 vacuum interrupter's performance. Start with contact resistance measurement using a micro-ohmmeter. The resistance should be low and consistent across all three phases. Conduct high-voltage withstand tests to verify the interrupter's insulation integrity. Apply the manufacturer-specified test voltage and monitor for any signs of breakdown or excessive leakage current. Perform power factor tests to assess the overall condition of the interrupter's insulation system. These electrical tests provide valuable insights into the interrupter's ability to perform its primary functions effectively.

Vacuum Integrity and Mechanical Operation Tests

Assessing the vacuum integrity of the ERD-12/1250-25 vacuum interrupter is essential for ensuring its arc-extinguishing capabilities. Utilize a specialized vacuum tester to measure the pressure inside the interrupter chamber. The vacuum level should meet or exceed the manufacturer's specifications. Conduct mechanical operation tests to evaluate the performance of the operating mechanism. Measure the opening and closing times, and verify that they fall within the acceptable range. Check for any unusual sounds or vibrations during operation, as these may indicate mechanical issues. Additionally, perform endurance tests by cycling the interrupter multiple times to simulate real-world conditions and assess its reliability under repeated operations.

Interpreting Test Results and Maintaining ERD-12/1250-25 Vacuum Interrupters

Analyzing Test Data and Identifying Potential Issues

After conducting comprehensive tests on the ERD-12/1250-25 vacuum interrupter, it's crucial to analyze the collected data meticulously. Compare the results against manufacturer specifications and industry standards. Look for any deviations or trends that may indicate deterioration or impending failure. Pay special attention to contact resistance values, as increasing resistance can signify contact wear or misalignment. Evaluate the vacuum integrity test results to ensure the interrupter maintains its arc-extinguishing capabilities. Scrutinize the timing test data to verify consistent and synchronized operation across all phases. By thoroughly analyzing these results, you can identify potential issues before they escalate into major problems, ensuring the continued reliability of your electrical system.

Preventive Maintenance Strategies

Implementing effective preventive maintenance strategies is key to prolonging the life and maintaining the performance of ERD-12/1250-25 vacuum interrupters. Develop a regular inspection and testing schedule based on the interrupter's operating conditions and manufacturer recommendations. This may include annual visual inspections, bi-annual electrical tests, and comprehensive testing every three to five years. Keep detailed records of all maintenance activities and test results to track performance trends over time. Regularly clean and lubricate mechanical components to ensure smooth operation. Consider using advanced diagnostic tools, such as partial discharge monitoring, to detect insulation degradation in its early stages. By adopting a proactive maintenance approach, you can minimize unexpected failures and optimize the interrupter's lifecycle costs.

Troubleshooting Common Issues

Even with regular maintenance, ERD-12/1250-25 vacuum interrupters may occasionally experience issues. Familiarize yourself with common problems and their symptoms to facilitate quick diagnosis and resolution. If you encounter high contact resistance, investigate for contact wear, misalignment, or contamination. Vacuum leaks may manifest as degraded interrupting performance or failed high-voltage withstand tests. In such cases, the interrupter may require factory refurbishment or replacement. Mechanical operation issues, such as slow opening or closing times, could indicate problems with the operating mechanism or control circuitry. Always consult the manufacturer's troubleshooting guide and seek expert assistance for complex issues to ensure safe and effective resolution.

Conclusion

Testing and maintaining ERD-12/1250-25 vacuum interrupters is a critical aspect of ensuring the reliability and safety of electrical distribution systems. By following a comprehensive testing regimen that includes visual inspections, electrical tests, and mechanical evaluations, operators can effectively assess the interrupter's condition and performance. Regular maintenance, coupled with data-driven analysis and preventive strategies, significantly extends the lifespan of these crucial components. As technology evolves, staying updated with the latest testing methods and diagnostic tools will further enhance the efficiency and reliability of ERD-12/1250-25 vacuum interrupters in power systems worldwide.

Contact Us

Are you looking for high-quality ERD-12/1250-25 vacuum interrupters or need expert advice on testing and maintenance? Contact Shaanxi Huadian Electric Co., Ltd. today. Our team of specialists is ready to assist you with all your circuit breaker needs. Reach out to us at austinyang@hdswitchgear.com/rexwang@hdswitchgear.com/pannie@hdswitchgear.com for personalized support and cutting-edge solutions.
