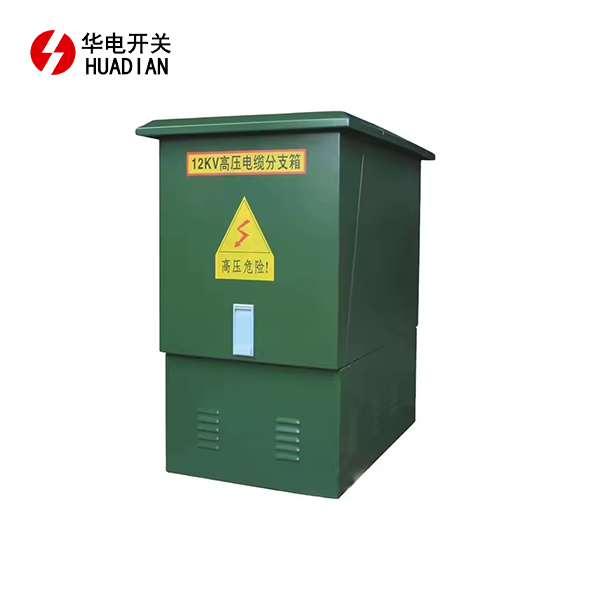

How does a DFW10-12 Cable Branch Box work?

A DFW10-12 cable branch box is an essential component in electrical distribution systems, designed to safely and efficiently distribute power from a main cable to multiple branch circuits. This device operates by providing a secure connection point for incoming power cables and multiple outgoing branch cables. The DFW10-12 model typically handles voltages up to 12kV and currents up to 630A, making it suitable for medium-voltage applications. Inside the box, bus bars and insulated compartments ensure proper isolation and distribution of electrical energy. The box's design incorporates safety features such as interlocks and grounding mechanisms to protect operators during installation and maintenance.

Key Components and Functions of a DFW10-12 Cable Branch Box

Main Cable Termination

The DFW10-12 cable branch box features a robust main cable termination point, designed to securely connect the incoming power supply. This termination is engineered to handle high voltages and currents, ensuring a reliable and safe connection. The main cable enters through a specially designed gland or bushing, which provides insulation and environmental protection. Inside the box, the main cable connects to a set of bus bars, which serve as the primary distribution point for the electrical power.

Branch Circuit Connections

One of the key functions of the DFW10-12 cable branch box is to distribute power to multiple branch circuits. The box typically contains several branch circuit connection points, each designed to accommodate specific cable sizes and types. These connections are usually made through specialized terminations or connectors that ensure proper insulation and current-carrying capacity. The branch circuit connections are arranged in a way that allows for easy installation and maintenance, with clear labeling to prevent confusion during operation.

Insulation and Isolation Systems

To maintain safety and reliability, the DFW10-12 cable branch box incorporates advanced insulation and isolation systems. These systems prevent electrical arcing and ensure that different electrical potentials remain separated. The box may use air insulation, solid insulation materials, or a combination of both, depending on the specific design and application requirements. Barriers and compartments within the box further enhance isolation between different components, reducing the risk of faults and improving overall system reliability.

Safety Features and Protective Mechanisms in DFW10-12 Cable Branch Boxes

Interlocking Systems

Safety is paramount in the design of DFW10-12 cable branch boxes. One of the key safety features is the interlocking system, which prevents access to live parts when the system is energized. This mechanism typically involves mechanical or electrical interlocks that ensure covers or access panels cannot be opened unless the power is disconnected. Some advanced models may incorporate key-based interlocking systems, adding an extra layer of security and preventing unauthorized access.

Grounding and Earthing Provisions

Proper grounding is crucial for the safe operation of any electrical distribution system. The DFW10-12 cable branch box includes dedicated grounding points and earthing bars. These components ensure that any fault currents or stray voltages are safely conducted to the ground, protecting both equipment and personnel. The grounding system is typically designed to handle high fault currents and is easily accessible for regular inspection and maintenance.

Overcurrent and Short Circuit Protection

To safeguard the electrical system and connected equipment, DFW10-12 cable branch boxes often incorporate overcurrent and short circuit protection mechanisms. These may include fuses, circuit breakers, or other protective devices integrated into the box or designed to work in conjunction with it. These protective elements are calibrated to trip or disconnect the circuit in case of abnormal current flows, preventing damage to the equipment and reducing the risk of electrical fires.

Installation and Maintenance Considerations for DFW10-12 Cable Branch Boxes

Site Preparation and Mounting

Proper installation of a DFW10-12 cable branch box begins with careful site preparation. The mounting location must be carefully chosen to ensure accessibility for maintenance while protecting the box from environmental factors. The box is typically mounted on a sturdy wall or frame, capable of supporting its weight and withstanding the forces exerted during cable connections. Proper leveling and alignment are crucial to ensure the box functions correctly and maintains its IP (Ingress Protection) rating. Adequate clearance around the box must be maintained to allow for ventilation and ease of access during maintenance operations.

Cable Entry and Termination

The process of cable entry and termination in a DFW10-12 cable branch box requires precision and expertise. Cables must be properly prepared, with outer sheaths removed to the correct length and individual conductors carefully stripped. The use of appropriate cable glands or bushings is essential to maintain the box's environmental protection rating. Inside the box, cables are terminated using specialized connectors or lugs, ensuring a secure and low-resistance connection. Proper torque application during termination is crucial to prevent loose connections that could lead to heating and potential failures.

Regular Inspection and Preventive Maintenance

To ensure the long-term reliability and safety of a DFW10-12 cable branch box, regular inspection and preventive maintenance are essential. This typically involves visual inspections for signs of wear, damage, or corrosion. Thermal imaging may be used to detect hot spots that could indicate loose connections or overloaded circuits. Electrical tests, including insulation resistance and continuity checks, should be performed periodically. The integrity of seals and gaskets should be verified to maintain the box's environmental protection. Any accumulation of dust or debris should be carefully removed to prevent insulation breakdown or overheating. Lubrication of moving parts, such as hinges and locking mechanisms, helps maintain smooth operation and prolongs the life of these components.

Conclusion

The DFW10-12 cable branch box is a crucial component in medium-voltage electrical distribution systems, offering a safe and efficient means of power distribution. Its robust design, incorporating advanced safety features and protective mechanisms, ensures reliable operation in various industrial and commercial applications. Understanding its components, functions, and maintenance requirements is essential for electrical professionals involved in its installation and upkeep. As power distribution needs continue to evolve, the role of well-designed cable branch boxes like the DFW10-12 remains pivotal in ensuring the safety and efficiency of electrical systems.
