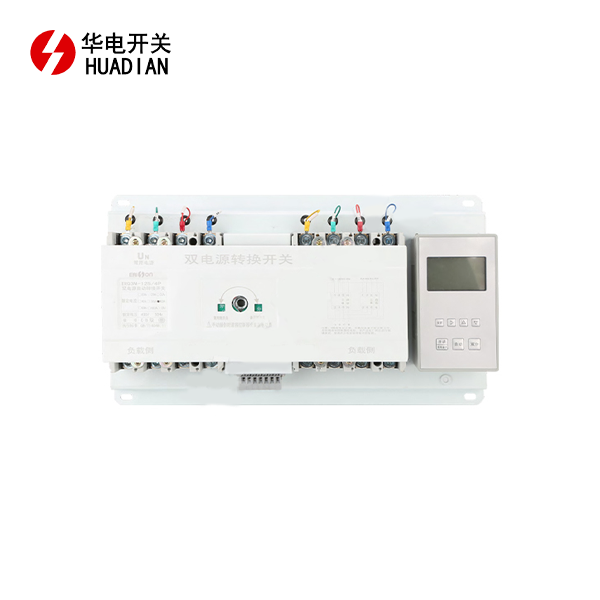

Understanding the ERQ3 Dual Power Automatic Transfer Switch
Core Components of the ERQ3 Switch
The ERQ3 dual power automatic transfer switch comprises several crucial components that work in harmony to ensure reliable power transfer. At its heart lies a microprocessor-based controller, which serves as the brain of the operation. This sophisticated unit constantly analyzes power quality parameters and makes split-second decisions based on pre-programmed criteria.
Another vital element is the power sensing module, which monitors voltage, frequency, and phase angle of both primary and secondary power sources. This module provides real-time data to the controller, enabling it to detect any anomalies promptly.
The switch mechanism itself is a marvel of engineering, featuring high-speed contactors or solid-state switching devices. These components are designed to handle high currents and voltages while minimizing arcing and wear during transitions.
Operating Principles of ERQ3 Technology
The ERQ3 dual power automatic transfer switch operates on a set of sophisticated principles that ensure seamless power transition. When the primary power source experiences an abnormality, such as a voltage drop or complete failure, the switch's sensing circuits immediately detect the issue.
The controller then initiates a transfer sequence, first opening the contactor connected to the failing power source. After a brief, programmable delay to allow for any transient conditions to stabilize, it closes the contactor linked to the alternate power source. This process happens so quickly that most connected equipment experiences no noticeable interruption in power supply.
Moreover, the ERQ3 incorporates advanced algorithms to prevent unnecessary switching due to momentary fluctuations, thus reducing wear on the system and connected equipment.
Advantages of ERQ3 Over Traditional Transfer Switches
The ERQ3 dual power automatic transfer switch offers several advantages over traditional transfer switches. Its rapid response time, often in the range of 10-20 milliseconds, significantly outperforms older mechanical switches that may take several seconds to complete a transfer.
Additionally, the ERQ3's intelligent control system allows for more nuanced decision-making. It can be programmed to respond differently to various types of power abnormalities, providing a more tailored approach to power management.
The switch also boasts superior diagnostic capabilities. It can log events, record power quality data, and even communicate with building management systems, offering unprecedented insight into power system performance and facilitating proactive maintenance.
Handling Power Source Abnormalities with ERQ3
Detection and Analysis of Power Fluctuations
The ERQ3 dual power automatic transfer switch excels in its ability to detect and analyze power fluctuations with exceptional precision. Its advanced sensing circuits continuously monitor key electrical parameters, including voltage, frequency, and phase angle, across both primary and secondary power sources.
When a deviation from the norm is detected, the switch's microprocessor-based controller swings into action. It rapidly assesses the nature and severity of the fluctuation, comparing it against pre-set thresholds. This analysis happens in real-time, allowing the ERQ3 to distinguish between momentary glitches and more serious power issues that require immediate action.
The switch's sophisticated algorithms also consider the duration of the abnormality. Short-lived fluctuations may be tolerated to prevent unnecessary switching, while persistent issues trigger an immediate response. This intelligent approach helps minimize wear on the system and connected equipment while ensuring reliable power delivery.
Rapid Response and Seamless Power Transfer
Once the ERQ3 dual power automatic transfer switch determines that a power transfer is necessary, it initiates a remarkably swift and smooth transition process. The entire sequence, from detection to completion of transfer, typically occurs within milliseconds, far surpassing the capabilities of traditional mechanical switches.
The transfer process begins with the rapid opening of the contactor connected to the failing power source. This action effectively isolates the load from the problematic supply. Following a brief, programmable delay to allow for any transient conditions to stabilize, the ERQ3 then closes the contactor linked to the alternate power source.
This seamless transition is so quick that most connected equipment experiences no perceptible interruption in power supply. The ERQ3's ability to maintain power continuity is crucial in applications where even momentary outages can have significant consequences, such as in data centers, healthcare facilities, or industrial processes.
Post-Transfer Monitoring and Retransfer Capabilities
The ERQ3 dual power automatic transfer switch doesn't simply "set and forget" after initiating a power transfer. It continues to monitor both power sources even after the switch has been made. This ongoing vigilance allows the ERQ3 to respond to any further changes in power conditions.
If the primary power source returns to normal parameters, the ERQ3 can be configured to automatically initiate a retransfer. However, this process is not immediate. The switch typically incorporates a time delay to ensure that the restored power source is stable before switching back. This prevents rapid back-and-forth transfers that could stress the system and connected equipment.
Moreover, the ERQ3 offers flexible programming options for retransfer. It can be set to return to the primary source automatically after a set delay, or it can require manual intervention, depending on the specific needs of the application. This adaptability makes the ERQ3 suitable for a wide range of power management scenarios.
Applications and Importance of ERQ3 in Various Sectors
Critical Infrastructure and Data Centers
In the realm of critical infrastructure and data centers, the ERQ3 dual power automatic transfer switch plays a pivotal role in maintaining uninterrupted operations. These facilities, which form the backbone of our digital economy, cannot tolerate even brief power outages without risking data loss or service disruptions.
The ERQ3's millisecond-level response time ensures that servers, storage systems, and networking equipment continue to receive stable power even in the face of grid instabilities. This capability is particularly crucial in today's cloud-based services landscape, where any downtime can have far-reaching consequences for businesses and consumers alike.
Moreover, the switch's advanced monitoring and diagnostic features allow data center operators to gain valuable insights into their power systems' performance. This data can be used to optimize energy efficiency, plan maintenance activities, and enhance overall reliability.
Healthcare Facilities and Life Support Systems
In healthcare settings, where lives literally depend on continuous power supply, the ERQ3 dual power automatic transfer switch serves as a critical safeguard. Hospitals, clinics, and other medical facilities rely on these switches to ensure that life support systems, diagnostic equipment, and essential services remain operational at all times.
The ERQ3's ability to transfer power sources without any perceptible interruption is particularly valuable in operating rooms, intensive care units, and other critical care areas. Here, even a brief power fluctuation could have severe consequences for patient safety and treatment outcomes.
Furthermore, the switch's flexibility in handling different types of power abnormalities makes it well-suited to the complex electrical environments often found in modern healthcare facilities. It can be programmed to prioritize certain circuits, ensuring that the most critical systems always receive power, even in scenarios where load shedding becomes necessary.
Industrial Processes and Manufacturing
In industrial and manufacturing environments, the ERQ3 dual power automatic transfer switch plays a crucial role in maintaining production continuity and preventing costly downtime. Many industrial processes are highly sensitive to power interruptions, which can lead to product defects, equipment damage, or even safety hazards.
The ERQ3's rapid response time helps protect sensitive machinery and control systems from voltage fluctuations or brief outages that could otherwise disrupt production lines. This capability is particularly valuable in industries such as semiconductor manufacturing, chemical processing, and automotive production, where precision and consistency are paramount.
Additionally, the switch's advanced monitoring capabilities allow plant managers to gain a more comprehensive understanding of their facility's power quality and consumption patterns. This data can be leveraged to implement energy-saving measures, schedule preventive maintenance, and optimize overall plant efficiency.
Conclusion
The ERQ3 dual power automatic transfer switch stands as a testament to modern power management technology. Its ability to swiftly detect and respond to power abnormalities ensures continuity of operations across various critical sectors. From safeguarding data centers to protecting life-saving medical equipment and maintaining industrial productivity, the ERQ3 plays an indispensable role in our increasingly power-dependent world. As we continue to rely more heavily on uninterrupted power supply, the importance of advanced solutions like the ERQ3 will only grow, making it a crucial component in building resilient and reliable power infrastructures for the future.
