Understanding Dual Power Automatic Transfer Switches
Definition and Purpose

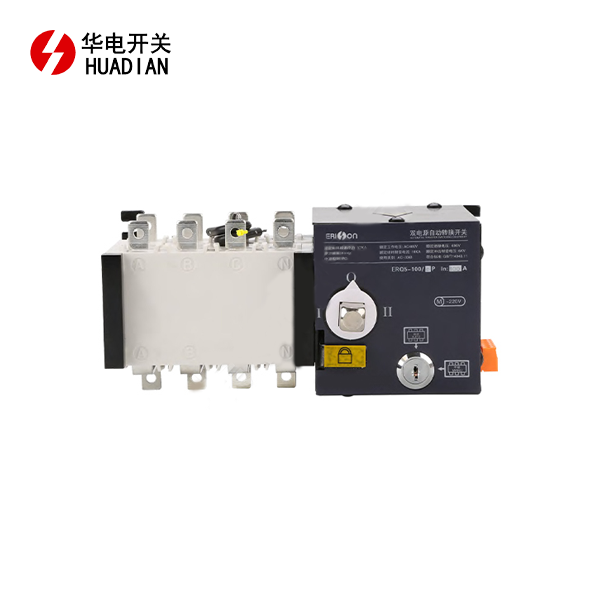

A dual power automatic transfer switch is an essential device in electrical systems that seamlessly transitions between two power sources, typically a primary utility supply and a backup generator. Its primary function is to ensure continuous power delivery to critical loads during main power outages or fluctuations. By automatically detecting power failures and initiating the switch to the alternate source, these devices play a pivotal role in maintaining operational continuity for various applications, from residential backup systems to industrial facilities.
Components and Operation
The core components of a dual power automatic transfer switch include power contacts, a control module, and sensing mechanisms. The power contacts are responsible for physically connecting and disconnecting power sources, while the control module orchestrates the switching process based on predefined parameters. Voltage and frequency sensors continuously monitor both power sources, triggering the transfer when necessary. Advanced models may incorporate microprocessors for enhanced control and diagnostic capabilities, enabling more sophisticated operations and remote monitoring features.
Types of Dual Power Automatic Transfer Switches
Dual power automatic transfer switches come in various configurations to suit different applications. Open transition switches, also known as "break-before-make," momentarily disconnect the load during transfer, suitable for less sensitive equipment. Closed transition switches, or "make-before-break," provide a brief parallel connection between sources, ensuring zero interruption. Delayed transition switches introduce a deliberate time delay between source disconnection and reconnection, allowing residual voltage to decay in motor loads. Static transfer switches utilize solid-state components for ultra-fast transfers, ideal for critical loads requiring millisecond-level switching times.
Key Factors in Choosing a Dual Power Automatic Transfer Switch
Load Requirements and Capacity
When selecting a dual power automatic transfer switch, accurately assessing your load requirements is paramount. Consider both the total connected load and potential future expansions. The switch's amperage rating must exceed your maximum anticipated load to prevent overloading and ensure reliable operation. Factor in surge currents from motor starts or other inrush loads, which can momentarily exceed normal operating currents. For three-phase systems, ensure balanced loading across all phases. Some advanced switches offer load-shedding capabilities, allowing prioritization of critical loads during extended outages or when operating on limited backup power.
Transfer Time and Speed
The transfer time of a dual power automatic transfer switch is a critical parameter, especially for sensitive equipment or processes that cannot tolerate even brief power interruptions. Standard open transition switches typically complete transfers within 100-400 milliseconds, suitable for many applications. However, for mission-critical operations like data centers or healthcare facilities, faster transfer times may be necessary. Static transfer switches can achieve sub-cycle transfer times, often less than 4 milliseconds, providing near-seamless power transitions. Consider the specific requirements of your loads and any potential consequences of momentary power loss when evaluating transfer speed options.
Voltage and Frequency Ratings
Ensure the dual power automatic transfer switch is compatible with your electrical system's voltage and frequency characteristics. Verify that the switch can handle the nominal voltage of both your primary and backup power sources, as well as any potential fluctuations. For applications involving sensitive electronic equipment, look for switches with tight voltage and frequency tolerances to prevent damage from out-of-spec power. Some advanced models offer programmable voltage and frequency sensing thresholds, allowing customization to your specific needs. Consider switches with power quality monitoring features for applications where maintaining precise voltage and frequency levels is critical.
Advanced Features and Considerations
Communication and Monitoring Capabilities
Modern dual power automatic transfer switches often come equipped with advanced communication and monitoring features. Look for switches that offer integration with building management systems (BMS) or supervisory control and data acquisition (SCADA) networks. Remote monitoring capabilities allow for real-time status updates and alerts, enabling proactive maintenance and rapid response to power events. Some switches provide detailed power quality analytics, logging transfer events, voltage fluctuations, and load profiles. Consider switches with user-friendly interfaces, such as touchscreen displays or web-based portals, for easier configuration and monitoring. Ensure compatibility with your existing network infrastructure and cybersecurity protocols when selecting a switch with remote access features.
Maintenance and Testing Requirements
Regular maintenance and testing are crucial for ensuring the reliability of dual power automatic transfer switches. Choose switches with built-in self-diagnostic features that can detect potential issues before they lead to failures. Look for models that facilitate easy manual testing without disrupting power to critical loads. Some advanced switches offer automated testing schedules, reducing the need for manual intervention and ensuring consistent performance verification. Consider the accessibility of components for maintenance and the availability of spare parts when selecting a switch. Opt for switches from reputable manufacturers that provide comprehensive documentation, training resources, and technical support to streamline maintenance processes and minimize downtime.
Environmental and Installation Considerations
The operating environment plays a significant role in the selection and performance of dual power automatic transfer switches. Consider factors such as ambient temperature, humidity, altitude, and potential exposure to dust or corrosive atmospheres. Switches designed for outdoor installation should have appropriate ingress protection ratings to withstand weather conditions. For installations in seismic zones, look for switches with appropriate certifications for earthquake resistance. Evaluate the physical dimensions and mounting options to ensure compatibility with your available space and installation requirements. Some switches offer modular designs or separate control sections, providing flexibility in challenging installation scenarios. Pay attention to cooling requirements, especially for high-capacity switches, and ensure adequate ventilation in the installation area.
Conclusion
Choosing the right dual power automatic transfer switch is a critical decision that impacts the reliability and efficiency of your power distribution system. By carefully evaluating factors such as load requirements, transfer speed, voltage ratings, and advanced features, you can select a switch that best meets your specific needs. Remember to consider long-term factors like maintenance requirements and potential system expansions. Consulting with experienced professionals and reputable manufacturers can provide valuable insights and ensure you make an informed decision. With the right dual power automatic transfer switch in place, you can enhance the resilience of your electrical system and safeguard your operations against power disruptions.
