How to Test AC Contactor?

Testing an AC contactor is a crucial process to ensure its proper functionality and reliability in electrical systems. To test an AC contactor, start by conducting a visual inspection for any signs of damage or wear. Then, use a multimeter to check the coil resistance and continuity of the contacts. Perform an operational test by applying the rated coil voltage and verifying that the contactor engages and disengages smoothly. Finally, measure the voltage drop across the closed contacts to ensure proper conductivity. Regular testing helps prevent unexpected failures and maintains the safety and efficiency of electrical systems.

​​​​​​​

Understanding AC Contactors

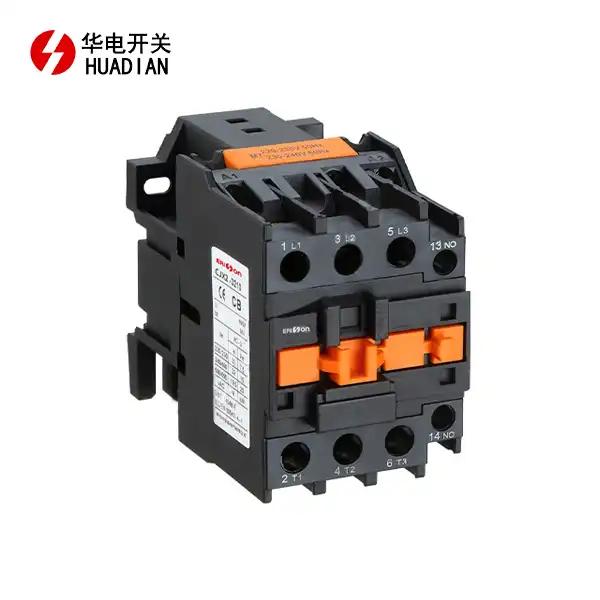

What is an AC Contactor?

An AC contactor is an essential component in electrical systems, designed to control the flow of electricity in high-power circuits. It functions as a switch, allowing or interrupting the current flow based on control signals. AC contactors are widely used in industrial applications, HVAC systems, and motor control circuits.

Components of an AC Contactor

AC contactors consist of several key components that work together to perform their switching function. These include:

- Electromagnet coil: Generates the magnetic field to operate the contactor

- Movable contacts: The main switching mechanism that opens or closes the circuit

- Fixed contacts: Stationary contacts that mate with the movable contacts

- Spring mechanism: Ensures rapid opening and closing of contacts

- Arc suppression system: Minimizes electrical arcing during switching

Importance of AC Contactors in Electrical Systems

AC contactors play a vital role in ensuring the safe and efficient operation of electrical systems. They provide several benefits, including:

- Remote control of high-power circuits

- Protection against overloads and short circuits

- Increased safety by isolating power sources

- Improved energy efficiency through controlled switching

- Extended equipment lifespan by reducing wear on other components

Preparation for Testing AC Contactors

Safety Precautions

Before testing an AC contactor, it's crucial to prioritize safety. Follow these precautions:

- De-energize the circuit and use appropriate lockout/tagout procedures

- Wear personal protective equipment (PPE) such as insulated gloves and safety glasses

- Use properly rated test equipment

- Ensure a clear workspace free from potential hazards

- Never work alone when dealing with high-voltage systems

Required Tools and Equipment

To effectively test an AC contactor, you'll need the following tools and equipment:

- Multimeter capable of measuring resistance, continuity, and voltage

- Insulated screwdrivers and pliers

- AC power source for operational testing

- Magnifying glass for visual inspection

- Cleaning supplies (e.g., contact cleaner, lint-free cloths)

Identifying AC Contactor Specifications

Before testing, familiarize yourself with the AC contactor's specifications:

- Rated coil voltage and frequency

- Contact configuration (e.g., normally open, normally closed)

- Maximum current and voltage ratings

- Operating temperature range

- Manufacturer's recommended maintenance procedures

Step-by-Step Testing Procedure

Visual Inspection

Begin the testing process with a thorough visual inspection:

- Check for signs of overheating, such as discoloration or melting

- Inspect for loose connections or damaged insulation

- Look for any debris or contamination on the contacts

- Examine the housing for cracks or other physical damage

- Verify that all mounting hardware is secure

Coil Resistance Test

Measure the resistance of the contactor's coil:

- Set the multimeter to the appropriate resistance range

- Connect the multimeter probes to the coil terminals

- Compare the measured resistance to the manufacturer's specifications

- Check for any significant deviations that may indicate a faulty coil

- Repeat the measurement at different temperatures if specified by the manufacturer

Contact Continuity Test

Verify the continuity of the contactor's contacts:

- Set the multimeter to the continuity testing mode

- Test normally closed contacts for continuity when the contactor is de-energized

- Check normally open contacts for an open circuit when de-energized

- Manually actuate the contactor and retest to ensure proper operation

- Listen for the audible indicator on the multimeter to confirm continuity

Advanced Testing Techniques

Operational Testing

Perform an operational test to verify the AC contactor's functionality:

- Connect the contactor to an appropriate AC power source

- Apply the rated coil voltage and observe the contactor's operation

- Check for smooth engagement and disengagement of contacts

- Listen for any unusual noises during operation

- Measure the pick-up and drop-out voltages to ensure they meet specifications

Contact Resistance Measurement

Measure the contact resistance to ensure proper conductivity:

- Use a low-resistance ohmmeter or micro-ohmmeter for accurate measurements

- Apply a small test current through the closed contacts

- Measure the voltage drop across the contacts

- Calculate the contact resistance using Ohm's law

- Compare the results to the manufacturer's specifications

Insulation Resistance Test

Assess the insulation integrity of the contactor:

- Use a megohmmeter (insulation tester) with the appropriate voltage rating

- Disconnect all external wiring from the contactor

- Apply the test voltage between the coil and contacts, and between separate contact poles

- Measure the insulation resistance and compare to minimum acceptable values

- Look for any sudden drops in resistance that may indicate insulation breakdown

Interpreting Test Results

Normal vs. Abnormal Readings

Understanding how to interpret test results is crucial for accurate diagnosis:

- Compare all measurements to the manufacturer's specifications

- Look for consistency in readings across similar components

- Be aware of acceptable tolerances for each measurement

- Consider environmental factors that may affect readings

- Document all results for future reference and trend analysis

Common Issues and Their Indicators

Recognize common AC contactor problems based on test results:

- High contact resistance: Indicates worn or contaminated contacts

- Inconsistent coil resistance: Suggests damaged or shorted windings

- Poor insulation resistance: Points to potential insulation breakdown

- Erratic operation: May indicate mechanical issues or control circuit problems

- Overheating signs: Often related to loose connections or overloading

Decision Making Based on Test Results

Use test results to make informed decisions about contactor maintenance:

- Determine if the contactor requires cleaning, repair, or replacement

- Consider the criticality of the application when evaluating borderline results

- Weigh the cost of replacement against the risk of potential failure

- Consult with manufacturers or specialists for complex issues

- Implement preventive maintenance schedules based on test trends

Maintenance and Troubleshooting

Cleaning and Lubrication

Proper maintenance can extend the life of AC contactors:

- Use appropriate contact cleaners to remove dirt and oxidation

- Apply lubricant sparingly to mechanical parts as recommended by the manufacturer

- Avoid using abrasive materials that could damage contact surfaces

- Ensure all cleaning agents are fully evaporated before reassembly

- Implement a regular cleaning schedule based on environmental conditions

Replacing Worn Components

When replacement is necessary, follow these guidelines:

- Use only manufacturer-approved replacement parts

- Ensure new components match the specifications of the original

- Follow proper installation procedures to maintain alignment and spacing

- Retest the contactor after component replacement

- Update maintenance records with details of replaced parts

Troubleshooting Common Problems

Address frequent issues with AC contactors effectively:

- Investigate and resolve any underlying causes of frequent tripping

- Check for proper voltage and frequency supply to the contactor coil

- Examine the control circuit for loose connections or faulty components

- Verify proper sizing of the contactor for the connected load

- Consider environmental factors such as temperature and humidity that may affect performance

Conclusion

Testing AC contactors is a critical aspect of maintaining electrical systems' safety and reliability. By following a systematic approach that includes visual inspection, electrical tests, and operational verification, technicians can identify potential issues before they lead to system failures. Regular testing, combined with proper maintenance and timely replacement of worn components, ensures that AC contactors continue to perform their vital role in controlling high-power circuits efficiently. As technology advances, staying updated with the latest testing techniques and equipment is essential for accurate diagnosis and effective troubleshooting of AC contactors.
