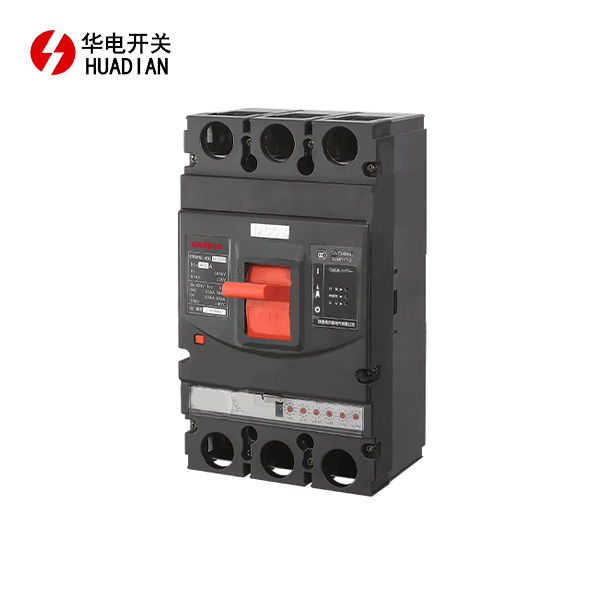

Understanding Plastic Case Circuit Breakers
Definition and Basic Functionality
Plastic case circuit breakers are electrical protection devices housed in durable, insulating plastic enclosures. Their primary function is to interrupt the flow of electricity when a fault condition is detected, such as an overload or short circuit. This interruption prevents damage to electrical equipment and reduces the risk of electrical fires. The plastic casing provides several advantages, including improved insulation, reduced weight, and enhanced safety for operators.
Components of Plastic Case Circuit Breakers
The internal structure of a plastic case circuit breaker comprises several key components working in harmony to ensure reliable operation. These include:
- Contacts: Movable and fixed contacts that open and close the circuit
- Operating mechanism: A spring-loaded system that rapidly separates the contacts
- Arc chute: A chamber designed to extinguish the electrical arc formed during contact separation
- Trip unit: The sensing element that detects fault conditions and initiates the tripping action
- Terminal connections: Points where the circuit breaker connects to the electrical system
Understanding these components helps appreciate the complexity and precision engineering involved in plastic case circuit breakers.
Types of Plastic Case Circuit Breakers
Plastic case circuit breakers come in various types, each designed for specific applications and current ratings. Some common types include:
- Miniature Circuit Breakers (MCBs): Ideal for residential and light commercial use
- Molded Case Circuit Breakers (MCCBs): Suitable for industrial applications with higher current ratings
- Residual Current Circuit Breakers (RCCBs): Provide additional protection against ground faults
- Combination Arc Fault Circuit Interrupters (CAFCIs): Detect and protect against arc faults in addition to overloads and short circuits
Each type offers unique features and benefits, catering to diverse electrical protection needs across various sectors.
Advantages of Plastic Case Circuit Breakers
Safety Features
Plastic case circuit breakers offer numerous safety advantages that make them a preferred choice in many electrical installations. The non-conductive plastic housing provides an additional layer of insulation, reducing the risk of electrical shock. Many models incorporate tamper-resistant designs, preventing unauthorized access to internal components. Advanced plastic case circuit breakers also feature trip-free mechanisms, ensuring that the breaker trips even if the operating handle is held in the "on" position during a fault condition.
Cost-effectiveness
The use of plastic materials in circuit breaker construction offers significant cost benefits without compromising on performance. Plastic case circuit breakers are generally more affordable to manufacture than their metal-encased counterparts, resulting in lower initial costs for consumers. Additionally, their lightweight nature reduces shipping and installation costs. The durability of modern engineering plastics used in these breakers contributes to a longer lifespan, further enhancing their cost-effectiveness over time.
Versatility and Adaptability
Plastic case circuit breakers demonstrate remarkable versatility across various applications. Their modular design allows for easy integration into different electrical systems, from residential panel boards to industrial motor control centers. Many plastic case circuit breakers offer adjustable trip settings, enabling fine-tuning of protection parameters to suit specific load requirements. This adaptability makes them suitable for a wide range of environments, from standard household circuits to specialized industrial applications requiring precise overcurrent protection.
Applications and Installation Considerations
Residential Applications
In residential settings, plastic case circuit breakers play a crucial role in ensuring electrical safety and compliance with building codes. They are commonly used in distribution panels to protect individual circuits powering lighting, appliances, and outlets. Modern homes often incorporate specialized plastic case circuit breakers such as Ground Fault Circuit Interrupters (GFCIs) for wet areas and Arc Fault Circuit Interrupters (AFCIs) for bedrooms and living spaces. These advanced breakers provide enhanced protection against electrical hazards, contributing to overall home safety.
Commercial and Industrial Uses
The robust design and higher current ratings of certain plastic case circuit breakers make them ideal for commercial and industrial applications. In these settings, they protect larger equipment, motor circuits, and distribution systems. Plastic case Molded Case Circuit Breakers (MCCBs) are particularly popular in industrial environments due to their ability to handle higher fault currents and their adjustable trip settings. Some industrial-grade plastic case circuit breakers also incorporate advanced features such as electronic trip units, communication capabilities, and energy monitoring functions, enhancing their utility in modern industrial electrical systems.
Installation Best Practices
Proper installation of plastic case circuit breakers is essential for their effective operation and longevity. Key considerations include:
- Correct sizing: Selecting breakers with appropriate current and voltage ratings for the protected circuit
- Proper mounting: Ensuring secure attachment to panel boards or enclosures
- Adequate ventilation: Allowing sufficient airflow to prevent overheating
- Torque specifications: Tightening terminal connections to manufacturer-specified torque values
- Environmental factors: Considering temperature, humidity, and potential exposure to contaminants
- Accessibility: Installing breakers in locations that allow for easy inspection and maintenance
Adherence to these best practices, along with compliance with local electrical codes and manufacturer guidelines, ensures optimal performance and safety of plastic case circuit breakers.
Conclusion
Plastic case circuit breakers have revolutionized electrical protection systems with their blend of safety, efficiency, and cost-effectiveness. From safeguarding residential circuits to protecting industrial equipment, these versatile devices play a pivotal role in modern electrical infrastructure. As technology advances, we can expect further innovations in plastic case circuit breaker design, potentially incorporating smart features and enhanced diagnostic capabilities. For anyone involved in electrical system design, installation, or maintenance, understanding the capabilities and proper application of plastic case circuit breakers is crucial for ensuring safe and reliable electrical systems.
