The Fundamental Principles of Lightning Arresters

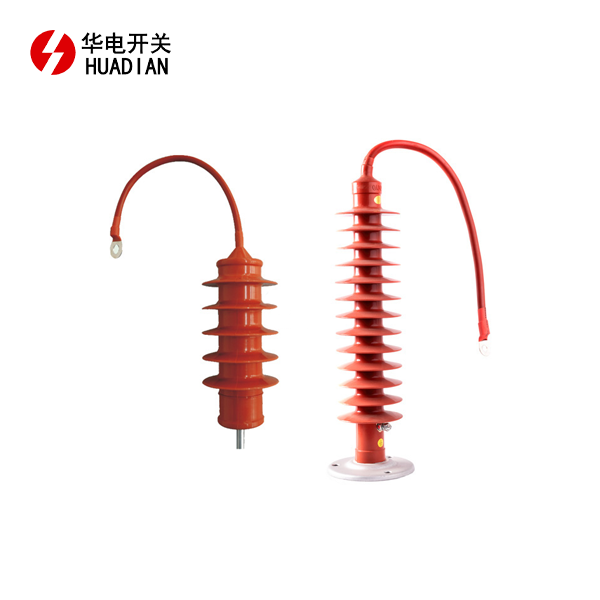

How Lightning Arresters Operate?
Lightning arresters function on the principle of providing a path of least resistance for lightning strikes and voltage surges. When a surge occurs, the arrester rapidly switches from a high-impedance state to a low-impedance state, allowing the excess current to flow through it to the ground. This swift action prevents the surge from reaching and damaging connected equipment.
The core of a lightning arrester typically consists of a non-linear resistive element, such as metal oxide varistors (MOVs) or silicon carbide blocks. These materials have the unique property of decreasing their resistance as voltage increases, making them ideal for surge protection applications.
Types of Lightning Arresters
There are several types of lightning arresters available, each designed for specific applications and voltage levels:
- Rod Gap Arresters: Simple and cost-effective, suitable for low-voltage applications
- Horn Gap Arresters: Used in medium-voltage systems, featuring a characteristic horn-shaped design
- Multi-Gap Arresters: Offer improved performance over single-gap designs
- Valve-Type Arresters: Utilize non-linear resistive elements for more precise surge suppression
- Metal Oxide Varistor (MOV) Arresters: Modern, highly efficient arresters used in a wide range of voltage applications
The choice of arrester depends on factors such as the system voltage, expected surge levels, and environmental conditions.
Key Components of Lightning Arresters
A typical lightning arrester consists of several key components:
- Electrode Assembly: The main conductive element that intercepts and diverts the surge current
- Non-linear Resistive Element: The heart of the arrester, responsible for voltage-dependent conductivity
- Housing: Provides insulation and protection for the internal components
- Ground Connection: Ensures a low-impedance path to earth for surge dissipation
- Disconnector: A safety feature that isolates the arrester in case of failure
These components work in harmony to provide reliable protection against lightning and surge events.
Benefits and Applications of Lightning Arresters
Protection of Electrical Equipment
Lightning arresters play a pivotal role in safeguarding a wide array of electrical equipment. From power transformers and switchgear to sensitive electronic devices, arresters prevent catastrophic damage that can result from lightning strikes and voltage surges. This protection extends the lifespan of equipment, reduces maintenance costs, and ensures uninterrupted operation of critical systems.
In industrial settings, where downtime can result in significant financial losses, lightning arresters are indispensable. They protect expensive machinery, control systems, and production lines from sudden electrical disturbances, maintaining productivity and safety.
Enhanced Power System Reliability
By mitigating the impact of lightning strikes and surges, arresters contribute significantly to the overall reliability of power distribution networks. They help prevent widespread outages, reduce the frequency of equipment failures, and minimize the need for emergency repairs. This enhanced reliability is crucial for maintaining consistent power supply to homes, businesses, and essential services.
In regions prone to frequent thunderstorms, lightning arresters are particularly valuable in ensuring the stability of the electrical grid. They allow utilities to maintain service quality and reduce the occurrence of blackouts and brownouts.
Safety Considerations
Lightning arresters are not just about protecting equipment; they also play a crucial role in ensuring human safety. By preventing electrical fires and equipment explosions that can result from lightning strikes, arresters contribute to a safer environment in both residential and industrial settings.
Moreover, in facilities where flammable materials are present, such as oil refineries or chemical plants, lightning arresters are critical safety components. They help prevent ignition sources that could lead to catastrophic incidents, safeguarding both personnel and property.
Installation and Maintenance of Lightning Arresters
Proper Installation Techniques
The effectiveness of a lightning arrester heavily depends on its proper installation. Key considerations include:
- Placement: Arresters should be installed at the entry point of power lines into a building or at critical junctions in the electrical system
- Grounding: A low-resistance ground connection is crucial for effective surge dissipation
- Lead Length: Minimizing the length of connecting leads reduces inductance and improves arrester performance
- Coordination: Proper coordination with other protective devices ensures optimal system protection
Professional installation by qualified electricians is recommended to ensure compliance with local electrical codes and standards.
Regular Maintenance and Inspection
While lightning arresters are generally low-maintenance devices, regular inspections are essential to ensure their continued effectiveness. Maintenance activities typically include:
- Visual inspections for signs of physical damage or degradation
- Checking and tightening of electrical connections
- Testing of ground resistance
- Thermal imaging to detect any abnormal heat signatures
- Periodic electrical testing to verify arrester characteristics
Regular maintenance not only ensures the reliability of the arrester but also helps in identifying potential issues before they lead to failure.
Replacement and Upgrade Considerations
Lightning arresters have a finite lifespan and may require replacement or upgrade over time. Factors that influence the need for replacement include:
- Age of the arrester
- Number and severity of surge events experienced
- Changes in the protected electrical system
- Advances in arrester technology
When considering upgrades, it's important to assess the current and future needs of the electrical system. Modern arresters often offer improved performance and additional features, such as condition monitoring capabilities, which can enhance overall system protection.
Conclusion
Lightning arresters are indispensable components in modern electrical systems, providing critical protection against the destructive forces of lightning strikes and voltage surges. Their ability to safeguard equipment, enhance system reliability, and ensure safety makes them essential in both residential and industrial applications. As technology advances, the role of lightning arresters continues to evolve, offering more sophisticated protection and monitoring capabilities. By understanding the principles, benefits, and proper management of lightning arresters, organizations and individuals can significantly enhance the resilience and longevity of their electrical infrastructure.
