Understanding Lightning Arresters
What is a Lightning Arrester?

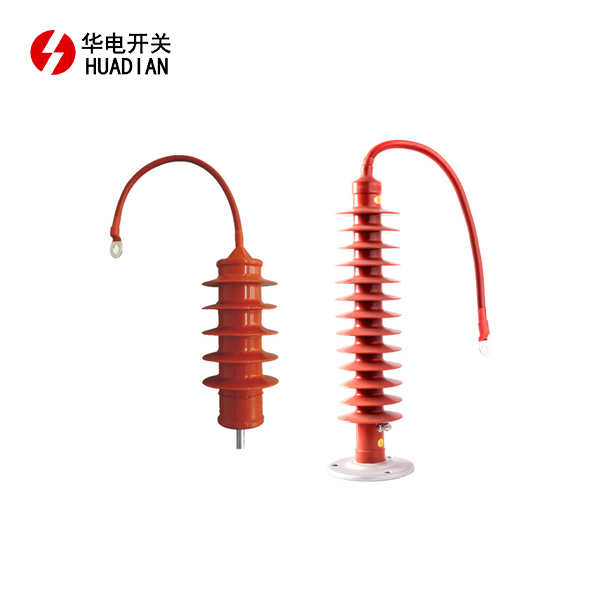

A lightning arrester, also known as a surge arrester, is a vital component in electrical systems designed to protect equipment from overvoltage caused by lightning strikes or switching surges. It acts as a safety valve, diverting excess current to the ground when voltage exceeds a predetermined threshold. Lightning arresters are typically installed at substations, on power lines, and near sensitive equipment to provide a first line of defense against electrical disturbances.
Types of Lightning Arresters
There are several types of lightning arresters, each suited for specific applications and voltage levels. Common types include:
- Metal Oxide Varistor (MOV) Arresters: These are widely used due to their excellent performance and reliability.
- Silicon Carbide Arresters: An older technology still found in some installations.
- Gas Discharge Tube Arresters: Often used in telecommunications and low-voltage applications.
- Hybrid Arresters: Combining different technologies for enhanced protection.
Understanding the type of arrester in use is crucial for proper testing and replacement procedures.Importance of Regular Maintenance
Regular maintenance of lightning arresters is paramount to ensure their effectiveness and longevity. Over time, arresters can degrade due to environmental factors, repeated surge events, or manufacturing defects. Without proper maintenance, an arrester may fail to protect equipment during a critical moment, leading to catastrophic damage. Routine inspections and tests help identify potential issues before they escalate, ensuring continuous protection and minimizing the risk of equipment failure.
Lightning Arrester Testing Procedures
Visual Inspection
The first step in testing a lightning arrester is a thorough visual inspection. This non-invasive procedure can reveal a wealth of information about the arrester's condition. Technicians should look for:
- Physical damage such as cracks, chips, or burns on the arrester's housing
- Signs of moisture ingress or contamination
- Loose or corroded connections
- Misalignment or improper mounting
Any visible abnormalities should be documented and may warrant further investigation or immediate replacement.Electrical Testing
Electrical testing is a critical component of lightning arrester maintenance. These tests evaluate the arrester's electrical characteristics and performance. Common electrical tests include:
- Insulation Resistance Test: Measures the arrester's ability to withstand normal operating voltage
- Leakage Current Test: Assesses the arrester's condition by measuring current flow under normal voltage
- Power Factor Test: Determines the arrester's overall health and detects internal degradation
- Voltage Withstand Test: Verifies the arrester's ability to withstand temporary overvoltages
These tests require specialized equipment and should be performed by trained professionals to ensure accuracy and safety.Thermographic Analysis
Thermographic analysis, or infrared imaging, is an advanced technique used to detect thermal anomalies in lightning arresters. This non-contact method can reveal:
- Hot spots indicating internal damage or degradation
- Uneven temperature distribution suggesting imbalanced current flow
- Cooling system inefficiencies in larger arrester installations
Thermographic analysis is particularly useful for identifying issues that may not be apparent through visual inspection or electrical testing alone.Lightning Arrester Replacement Procedures
Safety Precautions
Before initiating any replacement procedure, safety must be the top priority. Essential safety precautions include:
- De-energizing and grounding the electrical system
- Verifying the absence of voltage using appropriate testing equipment
- Wearing proper personal protective equipment (PPE)
- Establishing a safe work zone and communicating with all involved personnel
Adhering to these safety measures protects workers and prevents accidental equipment damage during the replacement process.Removal of Old Arrester
Removing the old lightning arrester requires careful attention to detail:
- Document the existing installation, including connections and mounting arrangements
- Disconnect all electrical connections, ensuring proper labeling for reconnection
- Remove mounting hardware and carefully extract the arrester from its position
- Inspect the surrounding area for any signs of damage or wear that may have contributed to the arrester's failure
Proper removal techniques prevent damage to adjacent equipment and facilitate a smooth transition to the new arrester.Installation of New Arrester
Installing the new lightning arrester is a critical process that demands precision and attention to detail:
- Verify that the new arrester matches the specifications of the system and the removed unit
- Mount the new arrester securely, ensuring proper alignment and orientation
- Make all electrical connections according to manufacturer guidelines and system requirements
- Apply appropriate torque to all fasteners and connections
- Verify proper grounding and insulation
After installation, conduct a final visual inspection to ensure all components are correctly positioned and secured.Post-Replacement Testing and Verification
Electrical Performance Tests
Once the new lightning arrester is installed, a series of electrical performance tests should be conducted to verify its proper operation:
- Insulation resistance test to confirm the integrity of the new installation
- Leakage current measurement to establish a baseline for future comparisons
- Power factor test to ensure the arrester meets manufacturer specifications
- Voltage withstand test to verify the arrester's protective capabilities
These tests provide assurance that the new arrester is functioning as intended and is ready to protect the system.System Integration Checks
Integrating the new lightning arrester into the existing system requires thorough verification:
- Check all connections for proper tightness and continuity
- Verify correct phasing and polarity
- Ensure coordination with other protective devices in the system
- Test any monitoring or diagnostic systems connected to the arrester
System integration checks help prevent issues that could arise from improper installation or incompatibility with existing equipment.Documentation and Reporting
Comprehensive documentation is essential for maintaining a record of the replacement procedure:
- Record all test results and compare them to manufacturer specifications
- Document any observations or anomalies encountered during the replacement process
- Update system diagrams and equipment logs to reflect the new installation
- Prepare a detailed report summarizing the replacement procedure and test results
Proper documentation supports future maintenance efforts and provides valuable data for system performance analysis.Conclusion
Lightning arrester testing and replacement procedures are critical for maintaining the integrity and reliability of electrical systems. By following a structured approach that includes thorough testing, careful replacement, and comprehensive post-installation verification, technicians can ensure optimal protection against lightning strikes and voltage surges. Regular maintenance and timely replacement of lightning arresters not only safeguard valuable equipment but also contribute to the overall safety and efficiency of electrical infrastructure. As technology advances, staying informed about the latest testing methods and arrester technologies is essential for implementing the most effective lightning protection strategies.
