The Importance of Lightning Protection in Renewable Energy
Vulnerabilities of Renewable Energy Systems
Renewable energy systems, such as wind turbines and solar panels, are often located in exposed areas, making them susceptible to lightning strikes. These structures typically feature tall components or large surface areas, increasing their likelihood of being hit. Without adequate protection, a single lightning strike can cause catastrophic damage, resulting in equipment failure, fires, and significant financial losses. Moreover, the sensitive electronic components used in modern renewable energy systems are particularly vulnerable to voltage surges, emphasizing the need for robust lightning arresters.
Economic Implications of Lightning Damage
The economic impact of lightning-related damage to renewable energy projects can be substantial. Beyond the immediate costs of equipment repair or replacement, downtime can lead to significant revenue losses. In competitive energy markets, reliability is paramount, and frequent outages due to lightning strikes can damage a project's reputation and long-term viability. Additionally, insurance premiums for unprotected installations may be higher, further affecting the overall project economics. By investing in high-quality lightning arresters, renewable energy operators can mitigate these risks and ensure a more stable and profitable operation.
Regulatory Compliance and Safety Standards
Many countries have implemented strict regulations and safety standards for renewable energy installations, including requirements for lightning protection. Compliance with these standards is not only a legal obligation but also a crucial factor in securing financing and insurance for projects. Lightning arresters play a vital role in meeting these regulatory requirements, demonstrating a commitment to safety and reliability. Furthermore, adhering to international standards such as IEC 62305 for lightning protection systems can enhance a project's credibility and facilitate its integration into the broader energy infrastructure.
Types of Lightning Arresters for Renewable Energy Applications
Metal Oxide Varistor (MOV) Arresters

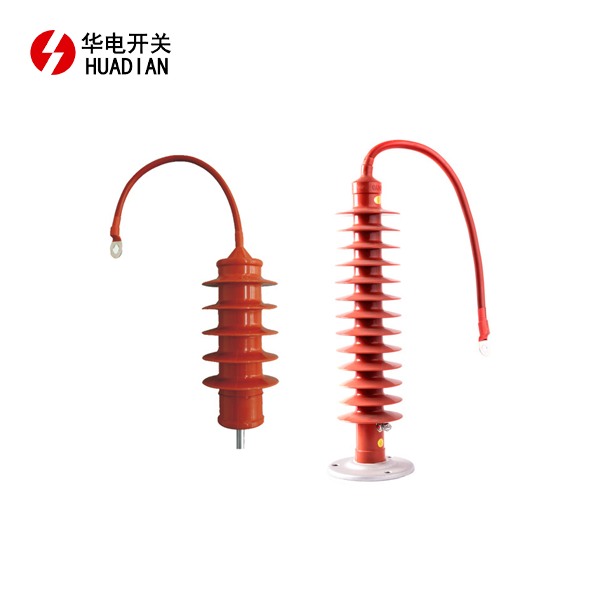

Metal Oxide Varistor (MOV) arresters are widely used in renewable energy projects due to their excellent performance characteristics. These devices consist of zinc oxide discs stacked in series and parallel configurations, encased in a polymeric or porcelain housing. MOV arresters offer rapid response times to voltage surges, low residual voltages, and high energy absorption capabilities. Their non-linear resistance properties allow them to conduct excess current to the ground during overvoltage events while maintaining high resistance under normal operating conditions. This makes MOV arresters particularly suitable for protecting sensitive electronic components in solar inverters and wind turbine control systems.
Silicon Carbide (SiC) Arresters
Silicon Carbide (SiC) arresters, although less common in modern installations, still find applications in certain renewable energy projects. These lightning arresters consist of silicon carbide discs with spark gaps, providing a robust and cost-effective solution for lightning protection. SiC arresters are known for their durability and ability to withstand multiple lightning strikes. However, they typically have higher residual voltages compared to MOV arresters, which may limit their use in systems with sensitive electronics. In some cases, SiC arresters are used in combination with MOV technology to create hybrid solutions that leverage the strengths of both types.
Externally Gapped Line Arresters (EGLA)
Externally Gapped Line Arresters (EGLA) represent an advanced solution for lightning protection in renewable energy projects, particularly for overhead transmission lines connecting wind farms or large solar installations to the grid. These arresters feature an external air gap in series with an MOV block, providing enhanced protection against both lightning impulses and switching surges. The external gap design allows for better heat dissipation and improved energy handling capabilities. EGLAs are particularly effective in areas with high lightning activity or where transmission lines are exposed to severe environmental conditions, offering a reliable means of protecting both the renewable energy assets and the broader power infrastructure.
Design Considerations for Lightning Arrester Systems in Renewable Energy Projects
Site-Specific Risk Assessment
Implementing an effective lightning protection system for renewable energy projects begins with a comprehensive site-specific risk assessment. This process involves analyzing factors such as local lightning frequency, soil resistivity, and the layout of the installation. Advanced tools like Lightning Location Systems (LLS) and Geographical Information Systems (GIS) can be employed to map lightning strike patterns and identify high-risk areas within the project site. The risk assessment should also consider the potential impact of lightning strikes on different components of the renewable energy system, including generators, transformers, and control equipment. By conducting a thorough risk analysis, project designers can optimize the placement and specifications of lightning arresters, ensuring comprehensive protection while managing costs.
Grounding System Design
A well-designed grounding system is fundamental to the effectiveness of lightning arresters in renewable energy projects. The grounding network must be capable of dissipating the enormous energy of a lightning strike safely into the earth without causing voltage rises that could damage equipment or pose safety risks. For large-scale installations like wind farms or solar parks, this often involves creating an extensive interconnected grounding grid. Factors such as soil composition, moisture content, and temperature variations must be considered when designing the grounding system. Advanced techniques like deep-driven rods, chemical ground enhancers, and ring earth electrodes may be employed to achieve low ground resistance values. Regular testing and maintenance of the grounding system are essential to ensure its continued effectiveness throughout the project's lifespan.
Coordinated Protection Strategy
Developing a coordinated protection strategy is crucial for ensuring comprehensive lightning protection in renewable energy projects. This approach involves integrating lightning arresters with other protective devices such as surge protective devices (SPDs), circuit breakers, and insulation coordination schemes. The goal is to create a layered defense that can handle various types of overvoltage events, from direct lightning strikes to induced surges. Coordination studies should be conducted to ensure that the various protective devices operate in harmony, with lightning arresters serving as the first line of defense. Additionally, the protection strategy should consider the specific vulnerabilities of different system components, such as the need for specialized arresters for photovoltaic panels or wind turbine blades. By implementing a well-coordinated protection system, renewable energy projects can achieve optimal reliability and longevity in the face of lightning threats.
Conclusion
Lightning arresters are indispensable components in the quest for reliable and sustainable renewable energy production. As the world increasingly relies on wind, solar, and other green energy sources, the importance of robust lightning protection systems cannot be overstated. By carefully selecting and implementing appropriate lightning arrester technologies, conducting thorough risk assessments, and adopting coordinated protection strategies, renewable energy projects can significantly enhance their resilience against the destructive forces of nature. This not only safeguards substantial investments but also ensures the consistent delivery of clean energy to power our future. As technology advances and our understanding of lightning protection deepens, the role of lightning arresters in renewable energy projects will continue to evolve, contributing to the overall efficiency and reliability of the global energy transition.
