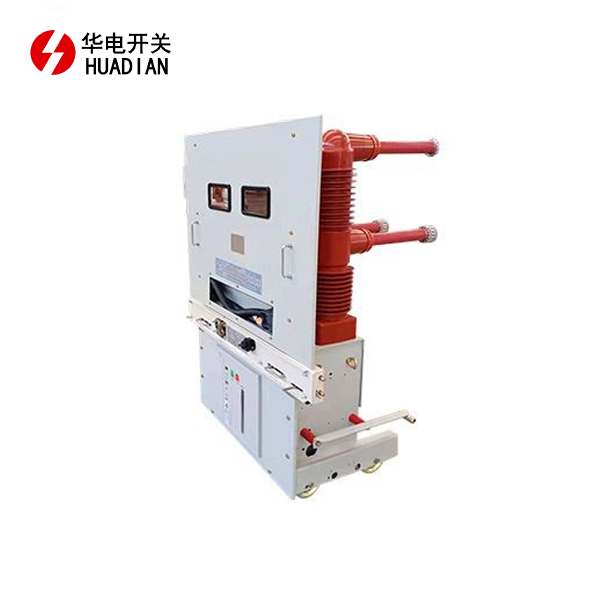

Key Safety Standards for Medium Voltage Vacuum Circuit Breakers
IEC 62271-100: High-voltage switchgear and controlgear
The IEC 62271-100 standard is a cornerstone in the realm of medium voltage vacuum circuit breakers. This comprehensive standard outlines the requirements for alternating current circuit-breakers designed for operation at frequencies of 50 Hz and 60 Hz in systems with voltages above 1000 V. It covers crucial aspects such as rated characteristics, design and construction requirements, type tests, routine tests, and transport, storage, installation, operation, and maintenance.
Medium voltage vacuum circuit breakers must meet stringent criteria set forth in this standard to ensure their safe and reliable operation. The standard addresses various parameters, including:
- Rated voltage and insulation levels
- Rated normal current and short-time withstand current
- Rated short-circuit breaking and making currents
- Mechanical and electrical endurance
- Operating mechanisms and auxiliary equipment
Adherence to IEC 62271-100 guarantees that medium voltage vacuum circuit breakers can withstand the rigors of their intended applications while maintaining a high level of safety and performance.
IEEE C37.09: Standard Test Procedure for AC High-Voltage Circuit Breakers
The IEEE C37.09 standard complements the IEC standard by providing detailed test procedures for alternating current high-voltage circuit breakers, including medium voltage vacuum circuit breakers. This standard is essential for verifying the performance and safety of these devices under various operating conditions.
Key test procedures outlined in IEEE C37.09 include:
- Dielectric tests to assess insulation strength
- Temperature rise tests to ensure proper thermal performance
- Short-circuit current interrupting tests
- Mechanical operation tests
- Capacitive current switching tests
By subjecting medium voltage vacuum circuit breakers to these rigorous tests, manufacturers can demonstrate compliance with safety standards and ensure their products meet the demanding requirements of modern electrical systems.
ANSI C37.06: AC High-Voltage Circuit Breakers Rated on a Symmetrical Current Basis
The ANSI C37.06 standard provides specific ratings and related requirements for AC high-voltage circuit breakers, including medium voltage vacuum circuit breakers. This standard is particularly relevant in North American markets and complements the IEC and IEEE standards.
ANSI C37.06 addresses crucial aspects such as:
- Preferred ratings for circuit breakers
- Standard operating duty requirements
- Rated continuous current and short-time current values
- Rated interrupting time and reclosing time
Compliance with ANSI C37.06 ensures that medium voltage vacuum circuit breakers meet the specific requirements of North American power systems, enhancing their interoperability and safety in these applications.
Design and Construction Requirements for Safe Medium Voltage Vacuum Circuit Breakers
Insulation and Dielectric Strength
Proper insulation is paramount in the design of safe medium voltage vacuum circuit breakers. The insulation system must withstand the high voltages and electrical stresses encountered during normal operation and fault conditions. Manufacturers employ various insulating materials and techniques to achieve the required dielectric strength.
Key considerations in insulation design include:
- Selection of appropriate insulating materials (e.g., epoxy resins, ceramic insulators)
- Optimized insulation geometries to minimize electric field stress
- Incorporation of creepage and clearance distances as per safety standards
- Implementation of effective partial discharge control measures
Advanced computational tools, such as finite element analysis, are often employed to optimize the insulation design of medium voltage vacuum circuit breakers, ensuring they meet or exceed the safety standards' requirements.
Arc Interruption and Contact Design
The heart of a medium voltage vacuum circuit breaker lies in its ability to interrupt arcs safely and efficiently. The design of the vacuum interrupter and its contacts plays a crucial role in achieving this objective. Manufacturers must adhere to stringent safety standards when developing these critical components.
Key aspects of arc interruption and contact design include:
- Optimization of contact materials (e.g., copper-chromium alloys) for high current-carrying capacity and arc resistance
- Implementation of advanced contact geometries to promote efficient arc extinction
- Integration of arc control devices to manage the arc energy effectively
- Ensuring proper contact separation speeds to minimize arcing time
Rigorous testing, as outlined in safety standards, is conducted to verify the arc interruption capabilities of medium voltage vacuum circuit breakers under various fault conditions, ensuring their safe operation in real-world scenarios.
Mechanical Endurance and Reliability
The mechanical components of medium voltage vacuum circuit breakers must withstand thousands of operations over their lifetime without compromising safety or performance. Safety standards stipulate strict requirements for mechanical endurance and reliability.
Key considerations in ensuring mechanical robustness include:
- Design of durable operating mechanisms (spring-operated, magnetic actuators)
- Selection of high-quality materials for moving parts
- Implementation of effective lubrication systems
- Integration of reliable interlocking mechanisms to prevent unsafe operations
Manufacturers conduct extensive mechanical endurance tests, often exceeding the requirements of safety standards, to demonstrate the long-term reliability of their medium voltage vacuum circuit breakers. This commitment to robustness ensures that these critical devices can perform their protective functions consistently throughout their operational life.
Testing and Certification Procedures for Medium Voltage Vacuum Circuit Breakers
Type Tests
Type tests are comprehensive evaluations conducted on representative samples of medium voltage vacuum circuit breakers to verify their compliance with safety standards. These tests are typically performed once for each design and are crucial in demonstrating the overall safety and performance of the product line.
Key type tests for medium voltage vacuum circuit breakers include:
- Dielectric tests (power frequency withstand and lightning impulse withstand)
- Temperature rise tests
- Short-circuit making and breaking tests
- Mechanical operation tests
- Capacitive current switching tests
- Critical current tests
These rigorous tests, conducted in accredited laboratories, ensure that medium voltage vacuum circuit breakers can withstand the most demanding operational conditions while maintaining the highest safety standards.
Routine Tests
Routine tests are performed on every manufactured unit of medium voltage vacuum circuit breakers to ensure consistency in quality and adherence to safety standards. These tests are essential in identifying any manufacturing defects or deviations from the type-tested design.
Typical routine tests include:
- Power frequency voltage withstand tests (dry)
- Measurement of the resistance of the main circuit
- Mechanical operation tests
- Design and visual checks
- Tightness tests (for vacuum interrupters)
By subjecting each medium voltage vacuum circuit breaker to these routine tests, manufacturers can guarantee that every unit leaving their facility meets the required safety and performance standards.
Special Tests and Customer Witness Tests
In addition to type and routine tests, medium voltage vacuum circuit breakers may undergo special tests to address specific application requirements or customer concerns. These tests go beyond the standard requirements and provide additional assurance of the product's safety and performance.
Examples of special tests include:
- Seismic qualification tests
- X-ray tests for vacuum integrity
- Extended mechanical endurance tests
- Environmental tests (e.g., salt spray, humidity)
Customer witness tests allow clients to observe critical tests being performed on their ordered medium voltage vacuum circuit breakers. This transparency builds confidence in the product's compliance with safety standards and specific project requirements.
Conclusion
Safety standards for medium voltage vacuum circuit breakers are indispensable in ensuring the reliability and protection of electrical systems. These standards, developed by international organizations, cover crucial aspects such as design requirements, testing procedures, and operational guidelines. Adherence to these standards not only guarantees the safe operation of medium voltage vacuum circuit breakers but also promotes consistency and interoperability across different manufacturers and applications. As technology advances, these standards continue to evolve, incorporating new insights and addressing emerging challenges in the field of electrical power distribution and protection.
