Understanding Surge Protection Devices (SPDs)
Definition and Purpose of SPDs
Surge Protection Devices, commonly known as SPDs, are electronic components designed to safeguard electrical systems and equipment from transient voltage surges. These devices play a crucial role in maintaining the integrity of sensitive electronic equipment by diverting excess voltage to the ground. SPDs are typically installed at the service entrance, distribution panels, or directly at the equipment they protect, forming a comprehensive defense against voltage fluctuations.
Types of SPDs and Their Applications
There are several types of SPDs and lightning arresters available, each suited for specific applications. Type 1 SPDs are installed at the service entrance and provide protection against direct lightning strikes. Type 2 SPDs are used in distribution panels to protect against switching surges and indirect lightning effects. Type 3 SPDs are point-of-use devices that offer localized protection for specific equipment. Understanding the appropriate type of SPD for each application is crucial for ensuring optimal protection across an electrical system.
Working Principle of SPDs
SPDs operate on the principle of voltage clamping. When a surge occurs, the SPD rapidly diverts the excess current to the ground, preventing it from reaching the protected equipment. This process happens within nanoseconds, ensuring that sensitive electronics remain unharmed. SPDs typically employ metal oxide varistors (MOVs), silicon avalanche diodes, or gas discharge tubes to achieve this rapid response. The effectiveness of an SPD is measured by its voltage protection level (VPL) and its ability to handle repeated surges without degradation.
Lightning Arresters: A Comprehensive Overview
Definition and Function of Lightning Arresters

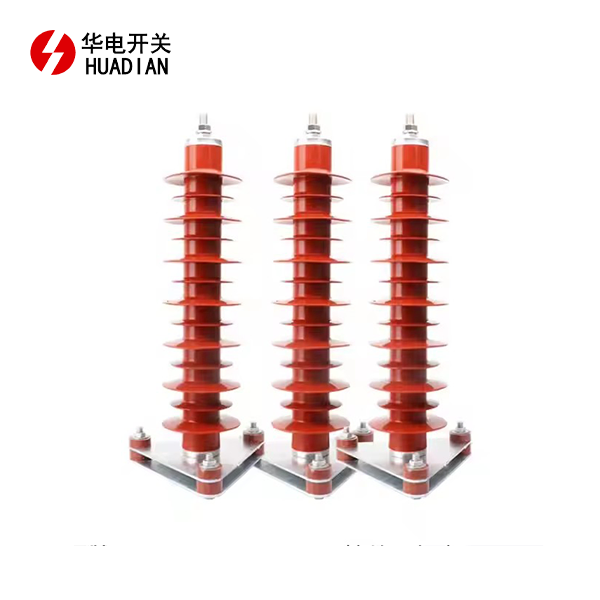

Lightning arresters, also known as surge arresters, are specialized protective devices designed to safeguard electrical systems and equipment from the devastating effects of lightning strikes. These robust devices are primarily used in outdoor electrical installations, such as power distribution networks, substations, and telecommunications towers. The primary function of a lightning arrester is to intercept lightning strikes and safely divert the enormous surge of current to the ground, preventing damage to critical infrastructure and ensuring the continuity of electrical services.
Types of Lightning Arresters
There are several types of lightning arresters available, each suited for specific applications and voltage levels. Rod gap arresters are among the simplest and oldest designs, consisting of two electrodes separated by an air gap. Horn gap arresters feature a horn-shaped upper electrode that helps to extinguish the arc more effectively. Valve type arresters use non-linear resistors to provide a low resistance path for surge currents while maintaining high resistance during normal operation. Modern metal oxide varistor (MOV) arresters offer superior performance and reliability, making them the preferred choice for many high-voltage applications.
Operating Mechanism of Lightning Arresters
The operating mechanism of a lightning arrester is based on its ability to rapidly change from a high-impedance state to a low-impedance state when a surge occurs. During normal conditions, the arrester maintains a high resistance, effectively isolating it from the electrical system. When a lightning strike or severe overvoltage event occurs, the arrester's impedance drops dramatically, creating a low-resistance path to ground. This sudden change allows the surge current to be safely diverted away from sensitive equipment. Once the surge has passed, the arrester quickly returns to its high-impedance state, ready to protect against future events.
Comparing SPDs and Lightning Arresters
Key Differences in Design and Construction
While both Surge Protection Devices (SPDs) and Lightning Arresters serve to protect electrical systems from voltage surges, their design and construction differ significantly. SPDs are typically compact devices designed for indoor use and integration into existing electrical panels or equipment. They often utilize multiple stages of protection, combining different technologies such as MOVs and gas discharge tubes. In contrast, lightning arresters are rugged, outdoor-rated devices built to withstand extreme environmental conditions. They are generally larger and more robust, capable of handling the immense energy associated with direct lightning strikes.
Voltage Ratings and Surge Handling Capacity
One of the most notable differences between SPDs and lightning arresters lies in their voltage ratings and surge handling capacities. SPDs are typically designed for low to medium voltage applications, ranging from 120V to 600V in most cases. Their surge handling capacity is generally in the range of 10kA to 100kA. Lightning arresters, on the other hand, are engineered for high voltage systems, with ratings that can exceed hundreds of kilovolts. They are capable of handling surge currents in the range of 100kA to 200kA or more, making them suitable for protecting large-scale electrical infrastructure from direct lightning strikes.
Application Areas and Installation Considerations
The application areas for SPDs and lightning arresters are distinct, reflecting their specific design purposes. SPDs are primarily used within buildings and facilities to protect sensitive electronic equipment, such as computers, telecommunications systems, and industrial control panels. They are typically installed at the service entrance, distribution panels, and point-of-use locations. Lightning arresters, conversely, are deployed in outdoor environments to protect power distribution systems, substations, and tall structures. Their installation requires careful consideration of factors such as grounding systems, clearance distances, and coordination with other protective devices to ensure optimal performance during lightning events.
Conclusion
In conclusion, while Surge Protection Devices (SPDs) and Lightning Arresters both play crucial roles in safeguarding electrical systems, they serve distinct purposes and operate in different environments. SPDs excel in protecting sensitive indoor equipment from transient voltage surges, offering rapid response times and integration with existing electrical systems. Lightning Arresters, with their robust construction and high voltage ratings, are indispensable for outdoor installations, providing critical protection against the immense power of direct lightning strikes. Understanding these key differences is essential for electrical engineers, facility managers, and homeowners alike, enabling them to implement comprehensive protection strategies that ensure the reliability and longevity of electrical systems in diverse settings.
