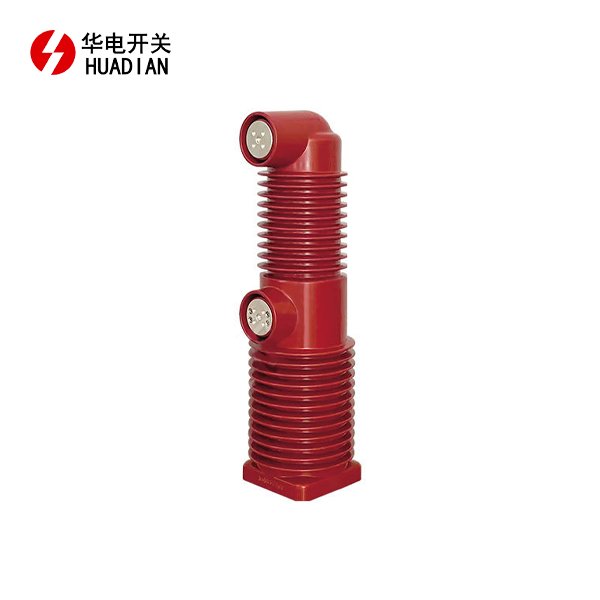

Raw Materials and Component Preparation
Selection of High-Grade Materials
The journey of creating embedded poles begins with the careful selection of premium materials. High-grade copper conductors form the core of the pole, chosen for their exceptional electrical conductivity and durability. These conductors are meticulously inspected for impurities and dimensional accuracy, ensuring they meet the stringent standards required for high-voltage applications.
Alongside copper, specially formulated epoxy resin plays a crucial role. This resin is engineered to possess superior dielectric properties, thermal stability, and mechanical strength. The composition of the epoxy is fine-tuned to achieve the optimal balance between electrical insulation and thermal management, critical factors in the performance of embedded poles.
Conductor Preparation and Positioning
Once the materials are selected, the copper conductors undergo a series of preparatory steps. They are precision-cut to the required lengths and shapes, often involving complex geometries to optimize current flow and minimize electrical losses. The surface of the conductors is then treated to enhance adhesion with the epoxy resin, typically through a combination of chemical etching and mechanical roughening processes.
Positioning the conductors is a critical phase in the manufacturing process. Using advanced jigs and fixtures, technicians carefully align the conductors within the mold. This step requires extreme precision, as the position of the conductors directly impacts the electrical characteristics and overall performance of the embedded pole.
Mold Design and Preparation
The design of the mold is a crucial aspect of embedded pole manufacturing. Engineers utilize sophisticated CAD software to create mold designs that ensure uniform resin distribution and prevent void formation. These molds are typically made from high-quality steel or aluminum and are precision-machined to tight tolerances.
Before each production run, the molds undergo thorough cleaning and preparation. This includes the application of release agents to facilitate easy removal of the finished product and the preheating of molds to the optimal temperature for resin curing. The meticulous preparation of molds is essential for achieving consistent quality across production batches.
Epoxy Resin Casting and Curing Process
Resin Mixing and Degassing
The epoxy resin used in embedded poles is typically a two-part system, consisting of a base resin and a hardener. These components are mixed in precise ratios using automated mixing equipment to ensure consistency. The mixing process is carried out under controlled conditions to prevent the introduction of air bubbles or contaminants.
Following mixing, the resin undergoes a crucial degassing step. This process, often performed in a vacuum chamber, removes any trapped air or volatile compounds from the resin mixture. Degassing is essential for producing a void-free insulation system, which is critical for the electrical performance and longevity of the embedded pole.
Casting Techniques
The casting of epoxy resin around the positioned conductors is a delicate operation that requires precision and control. Advanced casting techniques are employed to ensure complete and uniform encapsulation of the conductors. One common method is vacuum casting, where the resin is introduced into the mold under vacuum conditions. This technique helps to eliminate air pockets and ensures thorough impregnation of all spaces within the mold.
Another technique used in high-end production is pressure gelation. In this method, the resin is injected into the mold under high pressure, which helps to compact the material and further reduce the likelihood of voids or imperfections. The choice of casting technique depends on factors such as the complexity of the pole design and the specific electrical requirements of the end product.
Curing and Post-Curing Processes
After casting, the embedded poles enter the curing phase. This process involves carefully controlled heating cycles designed to optimize the cross-linking of the epoxy resin. The curing temperature and duration are precisely managed to achieve the desired mechanical and electrical properties of the insulation system.
Following initial curing, many manufacturers employ a post-curing process. This additional heat treatment further enhances the properties of the epoxy resin, improving its thermal stability and electrical characteristics. Post-curing can also help to relieve internal stresses within the material, contributing to the long-term reliability of the embedded pole.
Quality Control and Testing
Non-Destructive Testing Methods
Quality control is paramount in the production of embedded poles. Non-destructive testing methods play a crucial role in ensuring the integrity of each unit without compromising its functionality. One common technique is ultrasonic testing, which uses high-frequency sound waves to detect internal flaws or voids within the epoxy insulation. This method is particularly effective in identifying areas of poor adhesion between the conductor and the insulation material.
X-ray imaging is another valuable tool in the quality control arsenal. It allows inspectors to visualize the internal structure of the embedded pole, verifying the correct positioning of conductors and identifying any anomalies in the insulation system. Advanced imaging techniques, such as computed tomography (CT) scans, provide even more detailed three-dimensional information about the internal structure of the poles.
Electrical Performance Testing
Rigorous electrical testing is conducted to verify the performance and safety of embedded poles. Partial discharge testing is a critical evaluation that assesses the integrity of the insulation system under high voltage conditions. This test can detect minute imperfections or air pockets within the insulation that could lead to electrical breakdown over time.
High voltage withstand tests subject the embedded poles to voltages significantly above their rated operating levels. These tests ensure that the poles can safely withstand temporary overvoltages that may occur in real-world applications. Additionally, power frequency voltage tests and impulse voltage tests simulate various electrical stress scenarios to verify the pole's ability to maintain insulation under different operating conditions.
Mechanical and Environmental Testing
The mechanical integrity of embedded poles is crucial for their long-term reliability. Mechanical tests include bending tests to assess the pole's structural strength and vibration tests to evaluate its resistance to mechanical stresses encountered during transportation and operation. Impact tests may also be performed to ensure the pole can withstand accidental physical shocks.
Environmental testing subjects the embedded poles to extreme conditions to verify their performance across a wide range of operating environments. These tests may include thermal cycling, which exposes the poles to repeated cycles of high and low temperatures, and humidity tests to assess their resistance to moisture ingress. For poles destined for outdoor applications, additional tests such as salt spray resistance and UV exposure may be conducted to ensure long-term durability in harsh environmental conditions.
Conclusion
The manufacturing process behind embedded poles is a testament to the convergence of material science, electrical engineering, and precision manufacturing. From the careful selection of raw materials to the sophisticated casting techniques and rigorous quality control measures, every step is designed to produce a component that meets the exacting standards of modern electrical systems. The result is an embedded pole that not only delivers superior electrical performance but also ensures long-term reliability and safety in critical power distribution applications. As technology continues to advance, the manufacturing processes for embedded poles will undoubtedly evolve, driving further improvements in efficiency, performance, and sustainability in the field of electrical engineering.
