The structure and working principleof plastic case circuit breaker

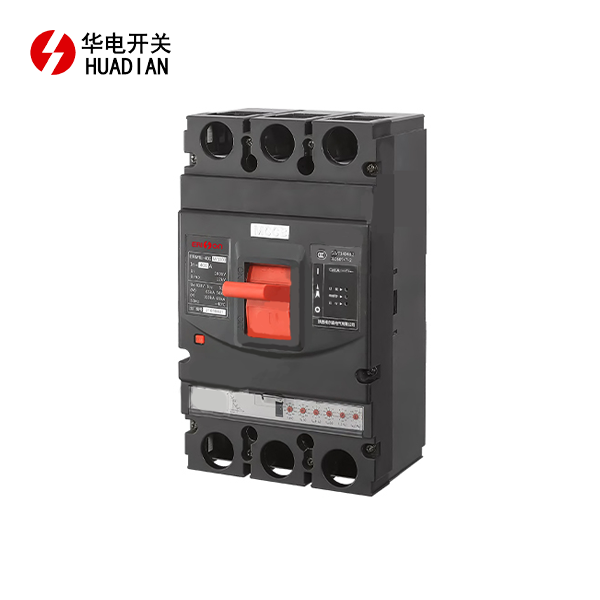

Plastic case circuit breakers, such as the ERM1E plastic case circuit breaker, are essential components in electrical systems, providing protection against overloads and short circuits. These devices are designed with a robust plastic casing that houses intricate mechanisms responsible for interrupting electrical current when necessary. The working principle of a plastic case circuit breaker involves detecting abnormal current conditions and rapidly opening the circuit to prevent damage to electrical equipment and potential hazards. Understanding the structure and operation of these devices is crucial for ensuring reliable and safe electrical installations in various applications.

Components of a Plastic Case Circuit Breaker

Main Contacts

The main contacts in a plastic case circuit breaker are the primary conducting elements responsible for carrying and interrupting the electrical current. These contacts are typically made of highly conductive materials, such as silver alloys, to minimize resistance and ensure efficient current flow. When the circuit breaker is in its closed position, the main contacts are pressed together, allowing electricity to pass through. In the event of a fault or overload, these contacts separate rapidly to break the circuit and stop the flow of current.

Arc Extinguishing System

An essential component of the ERM1E plastic case circuit breaker is its arc extinguishing system. When the main contacts separate during a fault condition, an electric arc is formed. The arc extinguishing system is designed to quickly cool and dissipate this arc, preventing damage to the breaker and surrounding equipment. This system typically consists of arc chutes or chambers filled with insulating materials that help to elongate, cool, and eventually extinguish the arc. The effectiveness of the arc extinguishing system is crucial for the overall performance and safety of the circuit breaker.

Trip Mechanism

The trip mechanism is the heart of the plastic case circuit breaker's protective function. It consists of various elements, including thermal and magnetic trip units, that respond to different types of fault conditions. The thermal trip unit uses a bimetallic strip that bends when heated by excessive current, triggering the breaker to open. The magnetic trip unit, on the other hand, uses an electromagnetic coil that generates a magnetic field proportional to the current flowing through it. When the current exceeds a predetermined threshold, the magnetic force becomes strong enough to activate the tripping mechanism, instantly opening the circuit.

Operating Principles of Plastic Case Circuit Breakers

Normal Operation

During normal operation, the ERM1E plastic case circuit breaker remains in its closed position, allowing current to flow through its main contacts. The internal components of the breaker are designed to handle the rated current without any adverse effects. The trip mechanism remains inactive as long as the current stays within the acceptable range. The plastic casing provides insulation and protection for the internal components, ensuring safe operation under normal conditions.

Overload Protection

Overload protection is a crucial function of plastic case circuit breakers. When the current flowing through the breaker exceeds its rated value for an extended period, the thermal trip unit comes into play. The bimetallic strip in the thermal unit gradually heats up and deforms, eventually triggering the tripping mechanism. This time-delayed response allows for temporary current surges that may occur during motor starting or other normal operational scenarios. The overload protection ensures that equipment connected to the circuit is safeguarded against prolonged exposure to excessive current, preventing overheating and potential damage.

Short Circuit Protection

Short circuit protection is another vital aspect of the ERM1E plastic case circuit breaker's functionality. In the event of a short circuit, where the current rises rapidly to extremely high levels, the magnetic trip unit responds almost instantaneously. The sudden increase in current generates a strong magnetic field in the electromagnetic coil, which quickly activates the tripping mechanism. This rapid response is crucial for preventing severe damage to the electrical system and minimizing the risk of fire or other hazards associated with short circuits. The combination of fast-acting magnetic protection and the arc extinguishing system enables the circuit breaker to safely interrupt high fault currents.

Advanced Features and Technologies

Adjustable Trip Settings

Modern plastic case circuit breakers, including advanced models of the ERM1E, often feature adjustable trip settings. These adjustable parameters allow for fine-tuning of the breaker's response to different current levels and fault conditions. Users can customize the thermal and magnetic trip thresholds to match the specific requirements of their electrical system. This flexibility enables better coordination with other protective devices in the circuit and enhances overall system reliability. Adjustable trip settings also facilitate easier adaptation to changing load conditions or system modifications without the need for breaker replacement.

Electronic Trip Units

Some high-end plastic case circuit breakers incorporate electronic trip units, which offer enhanced protection and monitoring capabilities. These units use microprocessor-based technology to precisely measure and analyze current flow. Electronic trip units can provide more accurate and consistent protection across a wide range of current levels. They often include advanced features such as ground fault protection, harmonics monitoring, and communication interfaces for integration with building management systems. The use of electronic trip units in ERM1E plastic case circuit breakers can significantly improve the overall performance and functionality of electrical distribution systems.

Arc Fault Detection

Arc fault detection is an advanced safety feature found in some modern plastic case circuit breakers. This technology is designed to detect and respond to low-level arcing faults that may not trigger traditional overload or short circuit protection. Arc faults can occur due to damaged insulation, loose connections, or other wiring issues, potentially leading to fires if left undetected. Circuit breakers equipped with arc fault detection technology continuously monitor the electrical waveform for characteristic patterns associated with arcing. When an arc fault is detected, the breaker rapidly trips to prevent the fault from escalating into a more serious hazard.

Conclusion

The structure and working principle of plastic case circuit breakers, exemplified by the ERM1E plastic case circuit breaker, demonstrate the intricate design and sophisticated technology behind these essential protective devices. From their robust components to their advanced operating principles, these circuit breakers play a crucial role in ensuring electrical safety and system reliability. As technology continues to evolve, plastic case circuit breakers are incorporating more advanced features, such as adjustable trip settings, electronic trip units, and arc fault detection, further enhancing their capabilities and adaptability to diverse electrical applications.
