Understanding Plastic Case Circuit Breakers
What Are Plastic Case Circuit Breakers?

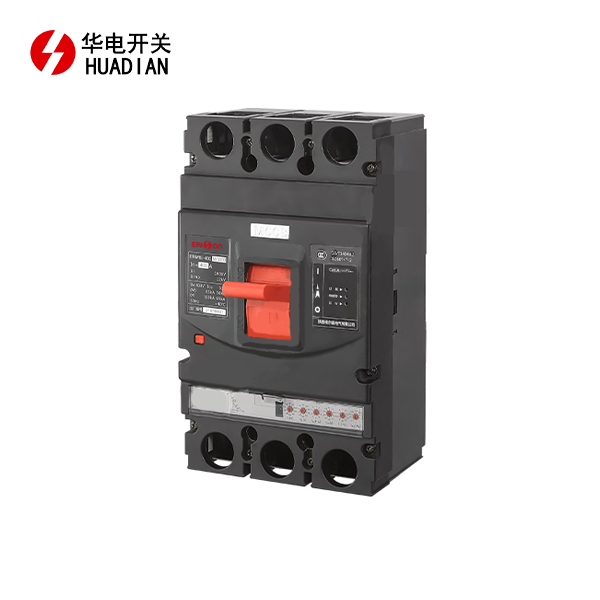

Plastic case circuit breakers are protective devices designed to safeguard electrical circuits from damage caused by overloads or short circuits. Unlike their metallic counterparts, these breakers are encased in a durable plastic housing, offering benefits such as lightweight construction, corrosion resistance, and enhanced insulation properties. The ERM1E plastic case circuit breaker exemplifies these advantages, making it a popular choice in various industrial and commercial applications.
Key Components of Plastic Case Circuit Breakers
To fully appreciate the functionality of plastic case circuit breakers, it's crucial to understand their key components. These typically include:
- Operating mechanism: Responsible for opening and closing the breaker contacts
- Arc extinguishing system: Designed to quickly quench electrical arcs during circuit interruption
- Trip unit: Detects abnormal conditions and initiates the breaker's tripping mechanism
- Terminals: Provide connection points for incoming and outgoing conductors
- Plastic enclosure: Offers insulation and protection for internal components
Advantages of Plastic Case Circuit Breakers
Plastic case circuit breakers, such as the ERM1E model, offer several advantages over traditional metal-enclosed breakers:
- Lightweight construction: Facilitates easier handling and installation
- Corrosion resistance: Ideal for use in harsh environments
- Enhanced insulation: Provides additional protection against electrical shocks
- Cost-effectiveness: Often more economical than metal-enclosed alternatives
- Versatility: Suitable for a wide range of applications and environments
Selection Criteria for Plastic Case Circuit Breakers
Voltage and Current Ratings
When selecting a plastic case circuit breaker like the ERM1E, it's imperative to consider the voltage and current ratings. The voltage rating should match or exceed the system voltage, while the current rating must be appropriate for the expected load. For instance, the ERM1E plastic case circuit breaker might be available in various voltage classes, such as 240V, 415V, or 690V, and current ratings ranging from 16A to 3200A. Choosing the correct ratings ensures optimal protection and prevents nuisance tripping or inadequate circuit protection.
Interrupting Capacity
The interrupting capacity, also known as the short-circuit current rating, is a critical factor in selecting a plastic case circuit breaker. This rating indicates the maximum fault current that the breaker can safely interrupt without causing damage to itself or the surrounding equipment. The ERM1E plastic case circuit breaker, for example, may offer interrupting capacities ranging from 10kA to 150kA, depending on the specific model. It's essential to choose a breaker with an interrupting capacity that exceeds the maximum potential fault current in the circuit it's protecting.
Environmental Considerations
Environmental factors play a significant role in the selection of plastic case circuit breakers. Consider the following aspects when choosing a breaker like the ERM1E:
- Operating temperature range: Ensure the breaker can function reliably in the expected ambient temperatures
- Humidity levels: Select a breaker with appropriate ingress protection for humid environments
- Altitude: High-altitude applications may require derating of the breaker's electrical characteristics
- Presence of corrosive substances: Choose a breaker with suitable corrosion resistance for harsh environments
- Electromagnetic interference: Consider EMI shielding for sensitive applications
Best Practices for Using Plastic Case Circuit Breakers
Proper Installation Techniques
Correct installation of plastic case circuit breakers, including the ERM1E model, is crucial for their optimal performance and longevity. Follow these guidelines for proper installation:
- Ensure the mounting surface is clean, dry, and level
- Use appropriate mounting hardware and torque specifications
- Maintain proper clearances around the breaker for ventilation and operation
- Connect conductors securely, using the recommended wire sizes and types
- Verify that all connections are tight and free from mechanical stress
Regular Maintenance and Inspection
To ensure the continued effectiveness of ERM1E plastic case circuit breakers like the ERM1E, regular maintenance and inspection are essential. Implement the following maintenance practices:
-Conduct visual inspections for signs of damage, overheating, or loose connections
- Test the breaker's mechanical operation periodically
- Clean the breaker and its surroundings to prevent dust accumulation
- Verify that the breaker's ratings remain appropriate for the protected circuit
- Keep maintenance records to track the breaker's performance over time
Safety Considerations
Safety should always be a top priority when working with plastic case circuit breakers. Observe these safety guidelines when handling or operating ERM1E breakers:
- Always de-energize the circuit before performing any work on the breaker
- Use appropriate personal protective equipment (PPE) when working with electrical equipment
- Follow lockout/tagout procedures to prevent accidental energization
- Never attempt to modify or bypass the breaker's protective features
- Train personnel on proper breaker operation and emergency procedures
Conclusion
The use and selection of plastic case circuit breakers, such as the ERM1E plastic case circuit breaker, require careful consideration of various factors to ensure optimal performance and safety. By understanding the key components, advantages, and selection criteria of these breakers, you can make informed decisions when designing or upgrading electrical systems. Proper installation, regular maintenance, and adherence to safety guidelines are essential for maximizing the benefits of plastic case circuit breakers. As technology continues to evolve, staying informed about the latest developments in circuit breaker design and application will help you maintain efficient and reliable electrical protection systems.
