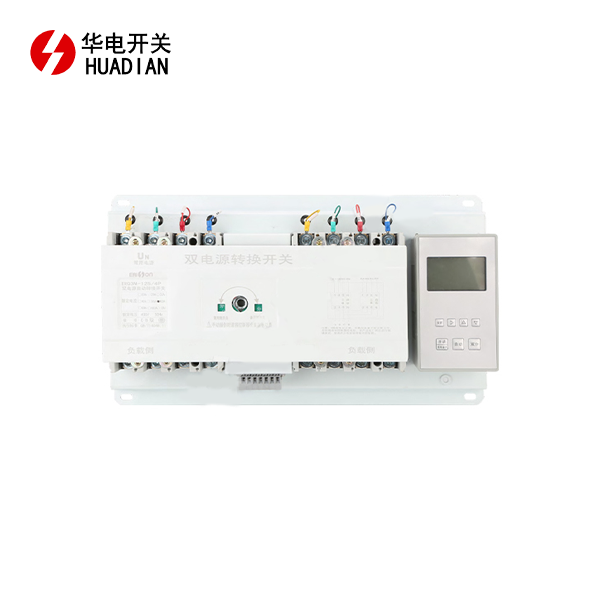

Understanding the ERQ3 Dual Power Automatic Transfer Switch
Core Components of the ERQ3 Switch
The ERQ3 dual power automatic transfer switch comprises several essential components that work in harmony to ensure reliable power transfer. These include:
- Main contacts: Responsible for switching between power sources
- Control module: Monitors power conditions and initiates transfer
- Voltage sensors: Detect fluctuations in power supply
- Time delay mechanisms: Prevent unnecessary switching
- Auxiliary contacts: Provide status information to external systems
Understanding these components is crucial for effective troubleshooting and maintenance of the ERQ3 switch.
Operational Principles
The ERQ3 dual power automatic transfer switch operates on a set of sophisticated principles to ensure uninterrupted power supply:
- Constant monitoring of primary and secondary power sources
- Rapid detection of power failures or irregularities
- Automated switching to backup power when necessary
- Seamless return to primary power once restored
- Adjustable time delays to prevent nuisance transfers
Understanding these operational principles helps in recognizing possible challenges and allows for the development of effective solutions. By being familiar with these principles, one can better anticipate issues and apply the necessary corrective actions, ensuring smoother and more efficient processes within any given system or environment.
Importance in Power Distribution Systems
The ERQ3 dual power automatic transfer switch plays a pivotal role in maintaining power continuity:
- Ensures critical systems remain operational during power outages
- Protects sensitive equipment from power fluctuations
- Facilitates planned maintenance without disrupting power supply
- Enhances overall reliability of electrical infrastructure
- Contributes to regulatory compliance in various industries
Recognizing the switch's importance underscores the need for proper troubleshooting and maintenance practices.
Common Issues and Troubleshooting Techniques
Failure to Transfer
A key issue with the ERQ3 dual power automatic transfer switch is its inability to switch between power sources. This malfunction can present itself in various forms, including failure to detect a power outage, incorrect switching sequence, or complete failure to transfer power. Such issues can cause significant disruptions in power supply, impacting the system's reliability and potentially leading to equipment downtime or operational inefficiencies. This problem can manifest in several ways:
- Switch remains on primary power despite outage
- Inability to switch back to primary power after restoration
- Incomplete transfer causing power interruption
To troubleshoot this issue:
- Check power source availability and connections
- Verify control module functionality
- Inspect main contacts for wear or damage
- Test voltage sensors for accuracy
- Review time delay settings
Erratic Switching
Erratic switching can cause unnecessary power interruptions and equipment stress. Symptoms include:
- Frequent transfers between power sources
- Momentary outages during transfer
- Inconsistent transfer timing
Troubleshooting steps for erratic switching:
- Analyze power quality on both sources
- Adjust sensitivity settings in the control module
- Check for loose connections or faulty wiring
- Calibrate voltage sensors
- Review and adjust time delay settings
Control Module Malfunctions
The control module is the brain of the ERQ3 dual power automatic transfer switch. Malfunctions can lead to various issues:
- Failure to initiate transfer
- Incorrect status indications
- Communication errors with external systems
To address control module issues:
- Perform a soft reset of the control module
- Update firmware if available
- Check for loose connections or damaged wiring
- Verify power supply to the control module
- Consider replacing the module if issues persist
Preventive Maintenance and Best Practices
Regular Inspection Schedule
Implementing a regular inspection schedule is crucial for maintaining the ERQ3 dual power automatic transfer switch:
- Conduct visual inspections monthly
- Perform operational tests quarterly
- Schedule comprehensive maintenance annually
- Document all inspections and test results
- Address any identified issues promptly
Adhering to a consistent inspection schedule helps prevent potential problems and ensures optimal performance.
Cleaning and Lubrication
Proper cleaning and lubrication are essential for the longevity of the ERQ3 dual power automatic transfer switch:
- Remove dust and debris from enclosures and components
- Clean contact surfaces with appropriate solvents
- Lubricate moving parts as per manufacturer recommendations
- Inspect and replace air filters if present
- Ensure proper sealing of enclosures after maintenance
Regular cleaning and lubrication minimize wear and tear, reducing the likelihood of component failure.
Software Updates and Calibration
Keeping the ERQ3 dual power automatic transfer switch's software up-to-date and properly calibrated is crucial:
- Check for firmware updates regularly
- Implement updates following manufacturer guidelines
- Calibrate voltage sensors annually or after significant events
- Verify time delay settings align with system requirements
- Document all software changes and calibrations
Maintaining current software and accurate calibration ensures optimal performance and reliability of the ERQ3 switch.
Conclusion
The ERQ3 dual power automatic transfer switch is a critical component in ensuring uninterrupted power supply. By understanding common issues, implementing effective troubleshooting techniques, and adhering to preventive maintenance best practices, facility managers and technicians can significantly enhance the reliability and longevity of their power distribution systems. Regular inspections, proper cleaning and lubrication, and staying current with software updates are key to minimizing downtime and maintaining optimal performance. With these strategies in place, organizations can confidently rely on their ERQ3 switches to provide seamless power transition and protect critical operations from disruptions.
