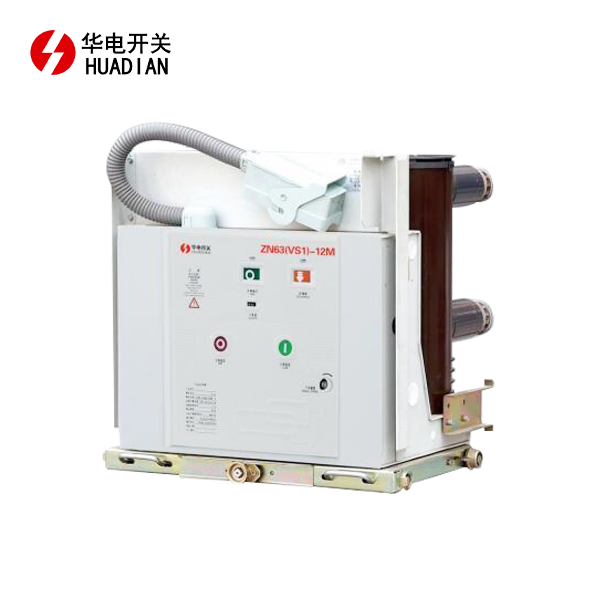

Fundamental Ratings of High Voltage Vacuum Circuit Breakers
Nominal Voltage Rating
The nominal voltage rating of a high voltage vacuum circuit breaker defines the maximum system voltage it can safely handle during normal operation. Typically expressed in kilovolts (kV), this rating reflects the root mean square (RMS) line-to-line voltage. It ensures the circuit breaker provides adequate insulation and arc interruption capabilities. Choosing a breaker with a nominal voltage rating equal to or higher than the system voltage is essential to prevent electrical failures, maintain safety, and ensure long-term reliability in medium and high voltage applications, especially under fluctuating grid conditions.
Continuous Current Rating
The continuous current rating represents the maximum electrical current that a high voltage vacuum circuit breaker can carry continuously without exceeding permissible temperature limits. Measured in amperes (A), this rating depends on several factors, including contact material, internal design, and cooling mechanisms. A breaker must be selected with a rating that exceeds the system’s peak load to avoid overheating, maintain performance, and reduce long-term wear. Proper selection helps ensure uninterrupted operation and extends the lifespan of the breaker even in demanding industrial and utility environments.
Short-Circuit Current Rating
The short-circuit current rating, or interrupting capacity, indicates the highest level of fault current a vacuum circuit breaker can safely interrupt without damage. Expressed in kiloamperes (kA), this rating is determined through rigorous standardized testing to verify performance under extreme conditions. It is essential to select a breaker with a rating higher than the system’s maximum prospective fault current to ensure effective fault isolation, system protection, and operator safety. This parameter is critical in high voltage networks where potential fault currents can reach extremely high levels in a very short time.
Advanced Ratings and Considerations
Making Current Rating
The making current rating represents the maximum current that a circuit breaker can safely close into under fault conditions. This rating is typically higher than the interrupting capacity and is crucial for applications where the breaker may need to close onto a fault. Understanding the making current rating ensures that the breaker can withstand the mechanical and thermal stresses associated with high-current switching operations.
Operating Frequency
The operating frequency rating specifies the frequency range at which the circuit breaker is designed to function. Most high voltage vacuum circuit breakers are rated for 50 or 60 Hz operation, corresponding to standard power system frequencies. However, some specialized applications may require breakers rated for different frequencies or even DC operation. It's essential to verify that the breaker's operating frequency rating matches the intended application to ensure proper performance and reliability.
Mechanical and Electrical Endurance
Mechanical and electrical endurance ratings indicate the number of operations a circuit breaker can perform under various conditions. Mechanical endurance refers to the number of open-close cycles the breaker can withstand without mechanical failure, while electrical endurance pertains to the number of fault interruptions it can perform successfully. These ratings are crucial for determining maintenance schedules and estimating the breaker's expected lifespan in a given application.
Environmental and Application-Specific Ratings
Temperature and Altitude Ratings
High voltage vacuum circuit breakers are designed to operate within specific temperature and altitude ranges. The temperature rating typically includes both ambient and storage temperature limits. Altitude ratings are important because air density decreases with elevation, affecting insulation and cooling properties. When installing circuit breakers at high altitudes, derating factors may need to be applied to ensure proper operation and performance.
Seismic Ratings
In regions prone to earthquakes, seismic ratings become crucial for high voltage vacuum circuit breakers. These ratings indicate the breaker's ability to withstand seismic forces without compromising its operational integrity. Seismic ratings are typically expressed in terms of peak ground acceleration (PGA) or spectral acceleration. When selecting circuit breakers for seismically active areas, it's essential to choose models with appropriate seismic ratings to ensure continued operation during and after seismic events.
Special Application Ratings
Certain applications may require high voltage vacuum circuit breakers with specialized ratings. For instance, capacitor switching applications may necessitate breakers with enhanced dielectric recovery characteristics. Similarly, generator circuit breakers may require additional ratings related to out-of-phase switching capabilities. Understanding these special application ratings ensures that the selected breaker is suitable for the specific requirements of unique or demanding installations.
Conclusion
Understanding high voltage vacuum circuit breaker ratings is paramount for ensuring the safety, reliability, and efficiency of electrical power systems. By comprehending the fundamental, advanced, and application-specific ratings, engineers and technicians can make informed decisions when selecting, installing, and maintaining these critical components. As power systems continue to evolve and face new challenges, staying abreast of circuit breaker ratings and their implications becomes increasingly important. By leveraging this knowledge, professionals can optimize system performance, enhance safety, and contribute to the overall advancement of electrical infrastructure worldwide.
