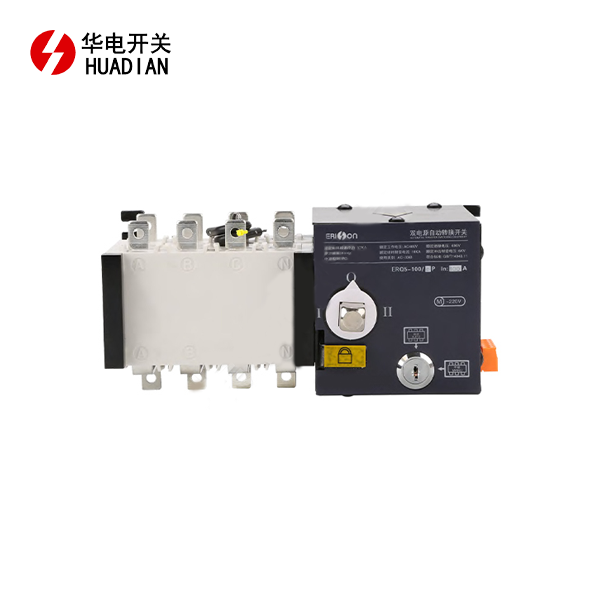

Understanding Dual Power Automatic Transfer Switches

Dual power automatic transfer switches (ATS) are critical components in electrical systems that ensure uninterrupted power supply. These devices automatically switch between two power sources, typically a primary source and a backup, to maintain continuous electricity flow. When the primary power source fails, the ATS swiftly transfers the load to the secondary source, minimizing downtime and protecting sensitive equipment. This seamless transition is crucial for facilities that require constant power, such as hospitals, data centers, and industrial plants. Understanding the functionality and benefits of dual power automatic transfer switches is essential for businesses and organizations seeking to enhance their power reliability and operational continuity.

The Mechanics of Dual Power Automatic Transfer Switches

Core Components

Dual power automatic transfer switches comprise several key components that work in harmony to ensure smooth power transitions. The main contactor or transfer mechanism is the heart of the system, responsible for physically switching between power sources. Voltage sensors continuously monitor both power sources, while a control module processes this information and makes decisions. Auxiliary contacts provide status information, and time delay relays prevent unnecessary switching due to momentary power fluctuations.

Operating Principles

The operation of a dual power automatic transfer switch is based on a series of logical steps. When the primary power source voltage drops below a preset threshold, the ATS initiates a transfer sequence. It first opens the connection to the primary source, then engages a brief time delay to allow for any transient conditions to stabilize. Subsequently, it closes the connection to the secondary power source, restoring power to the load. This process occurs rapidly, often within seconds, to minimize disruption.

Types of ATS Systems

There are various types of dual power automatic transfer switches available, each suited to different applications. Open transition switches, also known as "break-before-make," completely disconnect from one source before connecting to another. Closed transition switches, or "make-before-break," momentarily connect both sources during transfer, eliminating any power interruption. Delayed transition switches incorporate an adjustable time delay between disconnecting from one source and connecting to another, which can be beneficial for motor-driven loads.

Advantages of Implementing Dual Power Automatic Transfer Switches

Enhanced Reliability

The primary benefit of dual power automatic transfer switches is the significant improvement in power reliability. By automatically switching to a backup power source during outages, these devices ensure that critical systems remain operational. This enhanced reliability is particularly crucial for facilities where power interruptions can lead to safety hazards, data loss, or substantial financial losses. The automatic nature of the switch eliminates human error and reduces response time, further bolstering system dependability.

Minimized Downtime

Dual power automatic transfer switches dramatically reduce downtime associated with power failures. The rapid switching capability means that power can be restored within seconds, often before many systems even register an interruption. This minimized downtime is invaluable in maintaining productivity, preserving sensitive processes, and ensuring customer satisfaction in various industries. For businesses that rely heavily on continuous operations, such as manufacturing plants or e-commerce platforms, this reduction in downtime can translate to significant cost savings.

Simplified Maintenance

Implementing dual power automatic transfer switches can simplify maintenance procedures for electrical systems. These devices allow for easier testing and maintenance of generators and other backup power systems without disrupting the main power supply. Technicians can safely work on one power source while the ATS keeps the load connected to the alternate source. This capability not only enhances safety but also allows for more frequent and thorough maintenance checks, ultimately extending the lifespan of the entire power distribution system.

Considerations for Selecting and Installing Dual Power Automatic Transfer Switches

Load Requirements

When selecting a dual power automatic transfer switch, it's crucial to carefully assess the load requirements of the facility. The ATS must be capable of handling the maximum expected load, including any potential future expansions. Factors such as inrush currents, motor starting loads, and harmonic distortion should be considered to ensure the switch can manage all operational scenarios. Undersizing the ATS can lead to premature failure or inadequate performance during critical moments, while oversizing may result in unnecessary costs.

Environmental Factors

The environment in which the dual power automatic transfer switch will be installed plays a significant role in its selection and setup. Considerations such as ambient temperature, humidity, altitude, and exposure to contaminants or corrosive substances must be taken into account. Switches designed for indoor use may require additional protection if installed in outdoor or harsh environments. Proper environmental assessment ensures that the chosen ATS will operate reliably and have a longer service life, reducing the need for premature replacements or frequent maintenance.

Integration with Existing Systems

Integrating a dual power automatic transfer switch into an existing electrical system requires careful planning and execution. Compatibility with current infrastructure, including power sources, distribution panels, and control systems, is essential for seamless operation. The ATS should be able to communicate effectively with building management systems or SCADA networks if required. Additionally, consideration must be given to any necessary modifications to the existing electrical layout to accommodate the new switch. Proper integration ensures that the ATS functions as intended and enhances overall system performance rather than introducing new complications.

Conclusion

Dual power automatic transfer switches are indispensable components in modern electrical systems, providing crucial protection against power disruptions. Their ability to swiftly and automatically switch between power sources ensures continuous operation of critical equipment and processes. By implementing these devices, organizations can significantly enhance their power reliability, minimize downtime, and simplify maintenance procedures. However, careful consideration must be given to load requirements, environmental factors, and system integration when selecting and installing an ATS. As power demands continue to grow and the need for uninterrupted operations becomes increasingly vital, the role of dual power automatic transfer switches in maintaining electrical system resilience will only become more pronounced.

Contact Us

Are you looking to enhance your facility's power reliability with a dual power automatic transfer switch? Contact Shaanxi Huadian Electric Co., Ltd. for expert guidance and high-quality solutions tailored to your specific needs. Reach out to us at austinyang@hdswitchgear.com/rexwang@hdswitchgear.com/pannie@hdswitchgear.com to discuss how we can help safeguard your operations against power disruptions.
