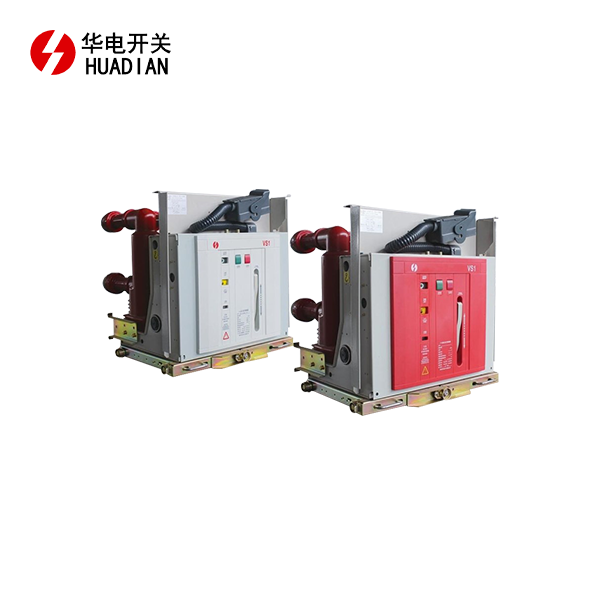

Voltage Ratings and Insulation Levels
Nominal Voltage and Maximum Operating Voltage
The nominal voltage rating of a medium voltage vacuum circuit breaker defines the standard voltage level it is designed to operate within, typically aligning with system voltage classifications such as 11 kV or 33 kV. However, the maximum operating voltage is equally critical, as it represents the highest continuous voltage the breaker can handle safely without insulation failure. This rating accounts for temporary overvoltages, system transients, and voltage imbalances, ensuring the breaker maintains safe and stable performance during normal and slightly elevated voltage conditions.
Basic Impulse Level (BIL) and Power Frequency Withstand Voltage
The Basic Impulse Level (BIL) of a medium voltage vacuum circuit breaker is an essential specification that measures its capacity to withstand short-duration, high-magnitude voltage surges, such as those from lightning or switching events. Typically rated in kilovolts, the BIL ensures the breaker's insulation system can endure and recover from such impulses without damage. Meanwhile, the power frequency withstand voltage is the level of alternating voltage the breaker can resist for a specific time (usually 1 minute), reflecting its insulation strength under more sustained stress at operating frequencies like 50 or 60 Hz.
Dielectric Strength and Insulation Coordination
Dielectric strength is the inherent capability of a medium voltage vacuum circuit breaker's insulation system to resist electrical breakdown under high voltage stress. It directly affects the breaker's ability to isolate circuits safely during faults or switching operations. Insulation coordination ensures that the dielectric properties of the breaker align with those of other system components, including transformers and cables. This alignment minimizes the risk of insulation failure across the network, enhances operational safety, and contributes to the overall robustness and reliability of the medium voltage power distribution system.
Current Ratings and Interrupting Capabilities
Continuous Current Rating
The continuous current rating of a medium voltage vacuum circuit breaker defines the highest current the breaker can carry continuously without causing overheating or degradation of its components. This rating ensures that the breaker can support the steady-state load of the electrical system it protects. Environmental factors such as ambient temperature, altitude, and ventilation within the enclosure can influence heat dissipation and, therefore, affect the actual current-carrying capacity. Proper derating must be applied when conditions deviate from standard test environments to maintain safe and efficient operation.
Short-Circuit Breaking Capacity
The short-circuit breaking capacity of a medium voltage vacuum circuit breaker is a critical safety parameter that indicates the maximum fault current the breaker can safely interrupt without mechanical or thermal failure. Measured in kiloamperes (kA), this rating ensures the breaker can handle extreme fault conditions typical of electrical system failures. Rigorous type tests simulate real-world fault scenarios to verify the breaker's performance. To guarantee system protection, the breaker's interrupting capacity must exceed the calculated maximum short-circuit current at its installation point, including any margin for future load growth or system changes.
Making Capacity and Short-Time Withstand Current
The making capacity of a medium voltage vacuum circuit breaker reflects its ability to close onto a live fault current without mechanical damage or contact welding. This rating is typically higher than the breaking capacity due to the dynamic forces involved during initial contact closure. Meanwhile, the short-time withstand current rating defines the highest current the breaker can endure for a brief duration, such as 1 or 3 seconds, without compromising structural or thermal integrity. This capability is vital for coordination with downstream protection devices and ensuring selective fault clearing in time-critical scenarios.
Mechanical and Environmental Ratings
Operating Mechanism and Endurance
Medium voltage vacuum circuit breakers utilize different types of operating mechanisms, including spring-charged, motor-driven, and magnetic actuators, to open and close the breaker contacts with precision. The mechanical endurance rating defines how many operating cycles the breaker can perform before requiring maintenance or part replacement. This is especially important in high-demand applications, such as industrial automation or grid switching, where repeated operations are routine. A high endurance rating ensures sustained reliability and reduces downtime in mission-critical systems.
Environmental Conditions and IP Ratings
Medium voltage vacuum circuit breakers are engineered to withstand diverse environmental challenges. Their performance under varying conditions such as high humidity, extreme temperatures, pollution levels, and elevation is evaluated through standardized testing. The IP (Ingress Protection) rating indicates the level of protection against dust, solid objects, and water penetration. For example, an IP54-rated enclosure provides protection from limited dust ingress and water spray. Proper environmental and IP ratings are essential to ensure dependable breaker operation in outdoor substations, coastal areas, or dusty industrial settings.
Seismic Qualification and Vibration Resistance
In areas prone to earthquakes or in facilities with constant mechanical vibrations, the seismic qualification and vibration resistance of medium voltage vacuum circuit breakers are essential design considerations. These ratings confirm that the breaker can endure dynamic mechanical stresses without losing its electrical or structural integrity. Compliance with standards such as IEEE 693 or IEC 60068 ensures resilience against seismic shock and vibration. This makes the breaker suitable for deployment in nuclear power plants, heavy industrial zones, or transportation infrastructure where consistent operation during disruptive events is vital.
Conclusion
Understanding the ratings of medium voltage vacuum circuit breakers is fundamental for their proper selection, application, and maintenance. These ratings encompass a wide range of electrical, mechanical, and environmental parameters that determine the breaker's performance and reliability. By carefully considering factors such as voltage levels, current capacities, interrupting capabilities, and environmental conditions, engineers and procurement specialists can ensure optimal protection for electrical systems. As technology advances and power distribution networks evolve, staying informed about these ratings becomes increasingly important for maintaining safe and efficient electrical infrastructures.
