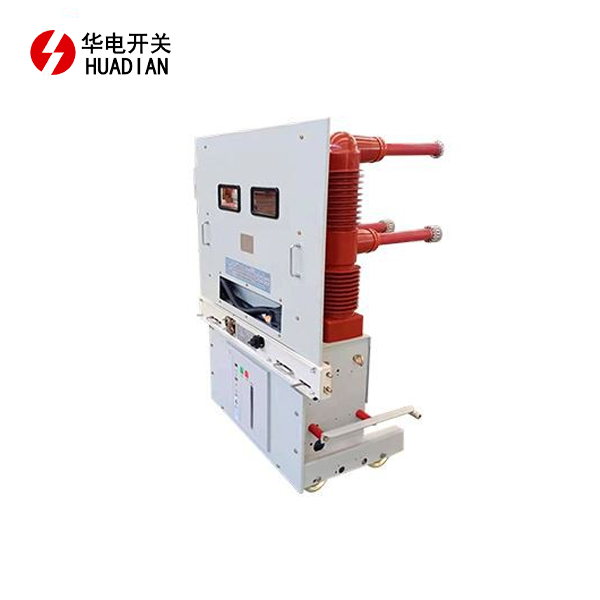

The Core Components of High Voltage Vacuum Circuit Breakers
Vacuum Interrupter: The Heart of the System
The vacuum interrupter is the central component of a high voltage vacuum circuit breaker. It consists of a sealed chamber that houses the contacts and maintains a high-level vacuum. This vacuum environment is crucial for the breaker's operation, as it facilitates rapid arc extinction and prevents the ionization of air molecules that could sustain the arc. The interrupter's design ensures that the vacuum integrity is maintained over thousands of operations, contributing to the breaker's longevity and reliability.
Contact System: Precision Engineering in Action
The contact system in a high voltage vacuum circuit breaker is a marvel of precision engineering. It typically comprises fixed and movable contacts made from specialized alloys that can withstand high temperatures and electrical stress. These contacts are designed to minimize contact resistance while maximizing current interruption capability. The movable contact is connected to an operating mechanism that provides the necessary force to open and close the circuit rapidly. The contact geometry is optimized to control the arc's movement and facilitate its extinction, ensuring efficient circuit breaking under various load conditions.
Operating Mechanism: The Power Behind the Break
The operating mechanism is the driving force behind the circuit breaker's action. It can be spring-operated, hydraulic, or pneumatic, depending on the specific requirements of the application. This mechanism must provide sufficient energy to separate the contacts quickly and maintain them in the open position against the electromagnetic forces generated during fault conditions. Advanced operating mechanisms incorporate features like anti-pumping devices and synchronous operation controls, enhancing the breaker's performance and reliability in high-stress environments.
The Intricate Process of Current Interruption
Arc Formation and Characteristics in Vacuum
When the contacts of a high voltage vacuum circuit breaker begin to separate, an arc is formed between them. This arc in a vacuum environment exhibits unique characteristics compared to arcs in air or oil. The vacuum arc is composed of metal vapor from the contact material, which becomes ionized due to the high temperature. The absence of gas molecules in the vacuum chamber means that the arc is confined to a small area, resulting in rapid cooling and deionization as the current approaches zero. This phenomenon contributes to the superior current interruption capabilities of vacuum circuit breakers.
The Role of Contact Material in Arc Extinction
The choice of contact material plays a crucial role in the performance of high voltage vacuum circuit breakers. Materials such as copper-chromium alloys or copper-bismuth composites are commonly used due to their excellent electrical conductivity and arc-resistant properties. These materials are engineered to withstand the high temperatures generated during arcing while minimizing contact erosion. The contact surface is often designed with specific patterns or grooves that help to disperse the arc energy and promote its rapid extinction. The ability of the contact material to quickly recover its dielectric strength after current zero is essential for preventing arc re-ignition and ensuring successful circuit interruption.
Post-Arc Recovery and Dielectric Strength
After the arc is extinguished, the vacuum interrupter must rapidly recover its dielectric strength to prevent arc reignition. This recovery process is facilitated by the rapid condensation of metal vapor on the contact surfaces and the chamber walls. The high-speed movement of the contacts also aids in the dispersion of any remaining charged particles. The vacuum's inherent dielectric strength, which is significantly higher than that of air, ensures that the gap between contacts can withstand the system voltage immediately after current interruption. This rapid recovery of dielectric strength is a key advantage of vacuum circuit breakers, allowing them to interrupt high-frequency current zeros effectively.
Applications and Advantages in Power Systems
Integration in Smart Grid Technologies
High voltage vacuum circuit breakers are increasingly being integrated into smart grid technologies. Their compact size, reliability, and fast operating speeds make them ideal for use in modern power distribution systems. In smart grids, these breakers can be equipped with sensors and communication modules that allow for real-time monitoring and control. This integration enables advanced features such as adaptive protection schemes, fault location, and predictive maintenance. The ability of vacuum circuit breakers to operate frequently without significant wear makes them particularly suitable for applications involving renewable energy sources, where rapid switching may be required to manage power fluctuations.
Environmental Benefits and Sustainability
The use of high voltage vacuum circuit breakers offers several environmental benefits. Unlike oil circuit breakers, vacuum breakers do not use insulating oil, eliminating the risk of oil spills and reducing maintenance requirements. The absence of oil also means that these breakers are fire-resistant, enhancing safety in electrical installations. Furthermore, the long operational life and minimal maintenance needs of vacuum circuit breakers contribute to resource conservation and reduced waste generation. As power systems evolve to accommodate more renewable energy sources, the reliability and eco-friendly nature of vacuum circuit breakers make them an important component in sustainable electrical infrastructure.
Future Developments and Innovations
The field of high voltage vacuum circuit breakers continues to evolve, with ongoing research and development focused on improving their performance and expanding their capabilities. Innovations in contact materials and designs are pushing the boundaries of current interruption capacity and operational life. There is also a trend towards the development of "smart" vacuum circuit breakers that incorporate advanced diagnostics and prognostics capabilities. These features allow for condition-based maintenance and improved asset management. Additionally, researchers are exploring ways to further miniaturize vacuum interrupters while maintaining their high voltage capabilities, potentially leading to more compact and efficient switchgear designs in the future.
Conclusion
High voltage vacuum circuit breakers represent a pinnacle of electrical engineering, combining sophisticated physics principles with robust mechanical design. Their ability to rapidly interrupt high currents in a vacuum environment makes them indispensable in modern power systems. As we've explored, the intricate interplay between vacuum technology, contact materials, and operating mechanisms enables these devices to provide reliable protection against electrical faults. With ongoing advancements in materials science and smart grid integration, high voltage vacuum circuit breakers are poised to play an even more crucial role in shaping the future of electrical power distribution and control.
