Understanding Universal Circuit Breakers
Key Features of Universal Circuit Breakers

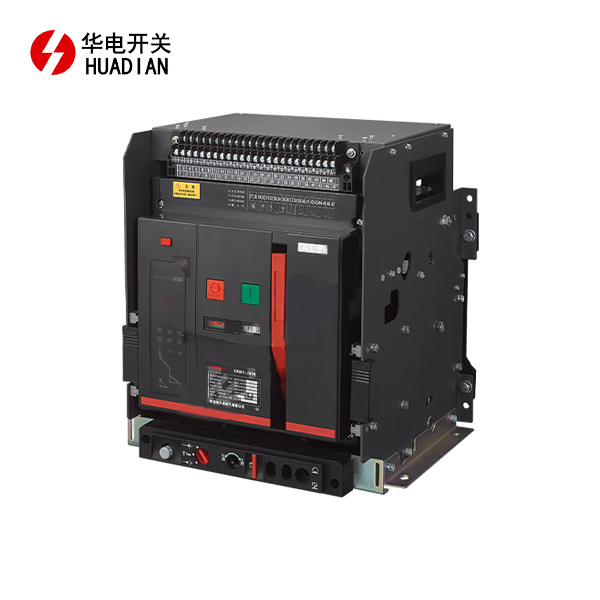

Universal Circuit Breakers (UCBs) are renowned for their adaptability and advanced features. These breakers are engineered to operate across a broad spectrum of voltage and current ratings, making them indispensable in various electrical systems. UCBs often incorporate microprocessor-based trip units, allowing for precise adjustments and enhanced protection settings. This level of customization enables users to fine-tune the breaker's response to specific load requirements and potential fault conditions.
Applications of Universal Circuit Breakers
The versatility of Universal Circuit Breakers (UCBs) makes them ideal for a wide range of applications. In industrial settings, they're frequently employed in motor control centers, switchgear, and power distribution panels. Commercial buildings benefit from Universal Circuit Breakers in main distribution boards and critical power systems. Their ability to handle diverse loads and their scalability make them particularly valuable in facilities where power requirements may change over time or vary significantly between different areas.
Advantages of Universal Circuit Breakers
One of the primary advantages of universal circuit breakers is their flexibility. They can be easily adjusted to accommodate changes in electrical systems without the need for replacement, which can lead to significant cost savings over time. Universal Circuit Breakers also offer superior coordination with other protective devices in the electrical system, enhancing overall safety and reliability. Additionally, many Universal Circuit Breakers come equipped with advanced monitoring and communication capabilities, allowing for real-time system analysis and remote operation, which is particularly beneficial in large-scale industrial applications.
Exploring Molded Case Circuit Breakers
Design and Construction of MCCBs
Molded case circuit breakers are characterized by their compact, self-contained design. the internal components, including the operating mechanism, arc extinguishing system, and trip unit, are encased in a molded insulating material. this construction provides excellent protection against environmental factors and ensures consistent performance. mccbs are typically designed for specific current ranges and voltage classes, making them a standardized solution for many low to medium voltage applications.
Common Uses of MCCBs
Universal circuit breakers and MCCBs find widespread use in commercial, residential, and light industrial settings. They're commonly installed in distribution boards, panel boards, and motor control centers. Their compact size makes them ideal for applications where space is at a premium. MCCBs are particularly effective in protecting branch circuits and smaller loads, offering reliable overcurrent and short-circuit protection. In residential settings, MCCBs are often used as main breakers or for protecting major appliance circuits.
Benefits of Using MCCBs
The simplicity and reliability of MCCBs are among their greatest benefits. They require minimal maintenance and are generally more cost-effective for standard applications compared to UCBs. MCCBs often feature visible trip indicators, making it easy to identify the source of a trip. Many modern MCCBs also incorporate thermal-magnetic trip units, providing both overload and short-circuit protection in a single device. Their standardized sizes and ratings simplify replacement and inventory management for facility maintenance teams.
Comparing UCBs and MCCBs: Making the Right Choice
Factors to Consider in Selection
When choosing between universal circuit breakers and Molded Case Circuit Breakers, several factors come into play. System voltage and current requirements are primary considerations. UCBs are typically more suitable for higher voltage and current applications, while MCCBs are often sufficient for lower-rated systems. The complexity of the electrical system is another crucial factor. UCBs offer more advanced features and customization options, making them ideal for complex industrial systems. In contrast, MCCBs are often the go-to choice for simpler, standardized protection needs.
Performance Comparison
In terms of performance, UCBs generally offer more precise trip characteristics and greater adjustability. This makes them superior in applications where coordinated protection is critical. UCBs also tend to have higher interrupting capacities, making them suitable for systems with potentially high fault currents. MCCBs, while less customizable, provide reliable and consistent performance within their designed parameters. They excel in quick response to overloads and short circuits in smaller distribution systems.
Cost and Maintenance Considerations
Cost is often a significant factor in the decision-making process. UCBs typically have a higher initial cost due to their advanced features and greater versatility. However, their adaptability can lead to long-term savings in systems where load requirements may change over time. MCCBs are generally more economical upfront and are often the cost-effective choice for standardized applications. Maintenance requirements also differ; UCBs may require more specialized maintenance due to their complex features, while MCCBs are known for their low maintenance needs and ease of replacement.
Conclusion
The choice between universal circuit breakers and Molded Case Circuit Breakers ultimately depends on the specific requirements of your electrical system. UCBs offer unparalleled flexibility and advanced features, making them ideal for complex, high-power applications where customization and precise control are essential. MCCBs, with their compact design and reliability, are excellent for standardized protection in lower voltage systems. By carefully considering factors such as system requirements, future scalability, and budget constraints, you can make an informed decision that ensures optimal protection and efficiency for your electrical infrastructure.
