Understanding Vacuum Interrupters and SF6 Technology

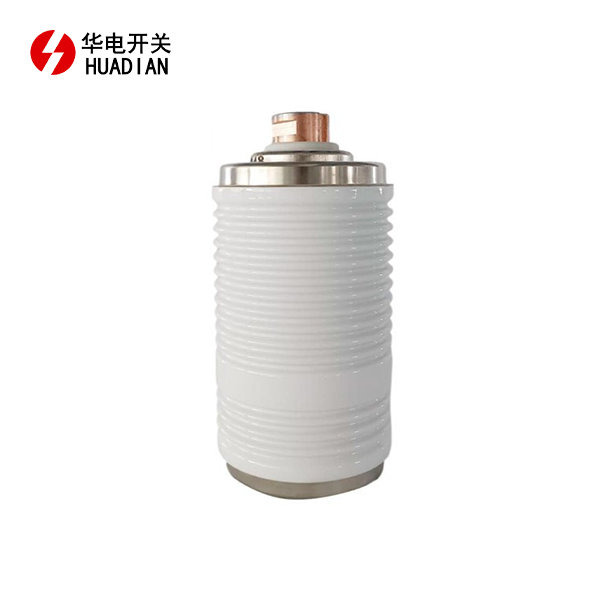

The Fundamentals of Vacuum Interrupter Technology
Vacuum interrupters operate on a simple yet ingenious principle. These devices utilize a sealed vacuum chamber to extinguish the electric arc that forms when interrupting high currents. Inside the chamber, two contacts separate to break the circuit. The vacuum environment rapidly dissipates the arc energy, effectively interrupting the current flow. This process occurs without the need for any insulating medium, making vacuum interrupters a clean and efficient solution for switchgear applications.
SF6 Technology: Principles and Applications
SF6, or sulfur hexafluoride, is a synthetic gas widely used in electrical equipment for its excellent insulating and arc-quenching properties. In SF6 circuit breakers, the gas is compressed and used to extinguish the electric arc. When the contacts separate, SF6 is blown into the arc path, cooling and extinguishing it rapidly. This technology has been prevalent in high-voltage applications due to its effectiveness in handling large currents and voltages.
Comparative Analysis of Operating Mechanisms
While both technologies aim to interrupt electrical currents safely, their operating mechanisms differ significantly. Vacuum interrupters rely on the properties of vacuum to quickly dissipate arc energy, whereas SF6 breakers use the gas's arc-quenching abilities. Vacuum interrupters generally offer faster interruption times and require less energy to operate. In contrast, SF6 systems may provide better insulation in some high-voltage scenarios but come with environmental concerns and more complex maintenance requirements.
Environmental Impact and Safety Considerations
Environmental Concerns of SF6 Gas
SF6 gas, while effective for electrical insulation, poses significant environmental risks. It is a potent greenhouse gas with a global warming potential 23,500 times that of carbon dioxide. The release of SF6 into the atmosphere, whether through leaks or during equipment maintenance, contributes to climate change. Moreover, SF6 has an extremely long atmospheric lifetime of approximately 3,200 years, making its impact on the environment long-lasting and severe. These environmental concerns have led to increasing regulatory pressure to phase out SF6 in electrical equipment.
Ecological Benefits of Vacuum Interrupters
In stark contrast, vacuum interrupters offer a much more environmentally friendly alternative. They operate without any insulating gas, eliminating the risk of harmful emissions. The sealed nature of vacuum interrupters means there's no risk of gas leakage during operation or maintenance. This eco-friendly characteristic aligns well with global efforts to reduce greenhouse gas emissions and promote sustainable technologies in the power sector. Companies adopting vacuum interrupter technology demonstrate their commitment to environmental stewardship and regulatory compliance.
Safety Aspects in Handling and Maintenance
From a safety perspective, vacuum interrupters hold a clear advantage. They require minimal handling of hazardous materials during installation, operation, or maintenance. In contrast, SF6 systems necessitate special handling procedures due to the potential health risks associated with exposure to SF6 and its byproducts. Vacuum interrupters eliminate these risks, providing a safer working environment for technicians and maintenance personnel. Additionally, the simpler design of vacuum interrupters reduces the likelihood of failures or accidents during operation, further enhancing overall safety in electrical installations.
Performance and Reliability Comparison
Interruption Capabilities and Speed
Vacuum interrupters excel in their interruption capabilities, particularly in medium voltage applications. They can break currents more quickly than SF6 breakers, typically within the first current zero crossing. This rapid interruption minimizes the stress on the system and connected equipment. Vacuum interrupters also maintain their performance consistently over their lifespan, with minimal degradation in interruption capability. SF6 breakers, while effective, may experience a gradual decline in performance due to gas decomposition and contamination over time.
Longevity and Maintenance Requirements
One of the most significant advantages of vacuum interrupters is their exceptional longevity and low maintenance requirements. These devices can operate for decades with minimal intervention, often exceeding 20,000 operations without the need for major maintenance. The sealed vacuum chamber eliminates the need for periodic gas refills or checks, which are necessary for SF6 systems. This reduced maintenance translates to lower operational costs and increased reliability over the life of the switchgear. SF6 breakers, in comparison, require regular gas monitoring, potential refills, and more frequent maintenance checks to ensure optimal performance.
Adaptability to Diverse Operating Conditions
Vacuum interrupters demonstrate remarkable adaptability across various operating conditions. They perform consistently in different environmental settings, including extreme temperatures and altitudes. This versatility makes them suitable for a wide range of applications, from industrial settings to power distribution networks. SF6 breakers, while robust, can be more sensitive to environmental factors. Extreme temperatures can affect the pressure and insulating properties of SF6 gas, potentially impacting performance. The adaptability of vacuum interrupters ensures reliable operation across diverse geographical and industrial contexts, making them a preferred choice for many modern switchgear applications.
Conclusion
In the comparison between vacuum interrupters and SF6 technology for switchgear applications, vacuum interrupters emerge as the superior choice. Their environmental friendliness, enhanced safety features, superior performance, and lower maintenance requirements make them an ideal solution for modern power systems. As industries worldwide shift towards more sustainable and efficient technologies, vacuum interrupters represent a forward-thinking approach to electrical switchgear. By choosing vacuum interrupter technology, businesses can ensure reliable power distribution while aligning with global environmental goals and regulatory standards.
