Understanding Circuit Breakers: Vacuum and SF6 Technologies
The Fundamentals of Circuit Breaker Operation
Circuit breakers are crucial components in electrical systems, designed to interrupt current flow during fault conditions. They protect equipment and personnel from potential damage and harm caused by electrical faults. The two main types we're focusing on – vacuum and SF6 circuit breakers – differ in their arc-quenching medium and operating principles.
Vacuum Circuit Breaker Technology

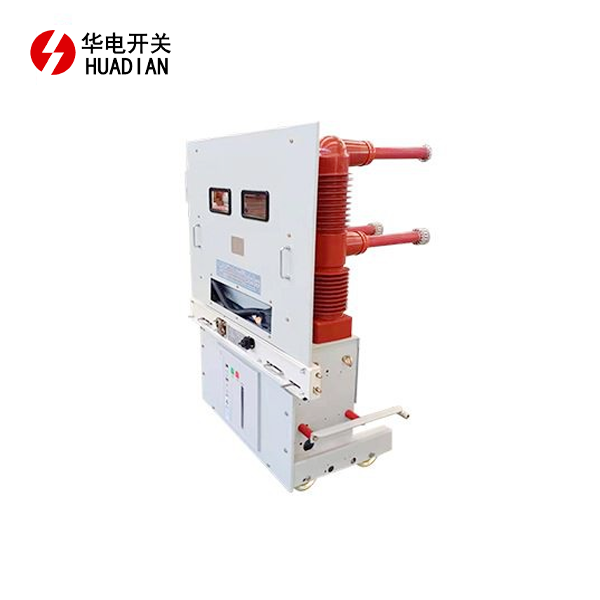

Vacuum circuit breakers utilize a high-vacuum interrupter as the medium for arc extinction. When contacts separate in a vacuum, the arc is quickly extinguished due to the rapid dispersion of charge carriers. This technology offers fast interruption times and minimal wear on contacts, making vacuum circuit breakers highly efficient and long-lasting.
SF6 Circuit Breaker Technology
SF6 (Sulfur Hexafluoride) circuit breakers use SF6 gas as the arc-quenching medium. This gas has excellent insulating and arc-extinguishing properties. When an arc forms, the SF6 gas decomposes, absorbs energy from the arc, and then recombines, effectively interrupting the current flow. While effective, SF6 is a potent greenhouse gas, raising environmental concerns.
Comparative Analysis: Vacuum vs SF6 Circuit Breakers
Performance and Reliability
Vacuum circuit breakers exhibit superior performance in many aspects. They offer faster operating times, typically in the range of 3-5 cycles, compared to SF6 breakers which may take 5-8 cycles. The vacuum interrupter's simple design contributes to its high reliability, with fewer moving parts susceptible to wear and tear. In contrast, SF6 breakers, while reliable, require more complex mechanisms and are more sensitive to environmental factors like humidity and temperature.
Maintenance Requirements
One of the significant advantages of vacuum circuit breakers is their low maintenance needs. The sealed vacuum interrupter requires virtually no maintenance throughout its operational life, which can exceed 20 years or 20,000 operations. SF6 breakers, however, necessitate regular checks on gas pressure and may require gas refilling over time. This not only increases maintenance costs but also poses potential environmental risks during servicing.
Environmental Impact
The environmental aspect heavily favors vacuum circuit breakers. They operate without any gas or oil, making them inherently eco-friendly. SF6, used in SF6 breakers, is a potent greenhouse gas with a global warming potential 23,900 times that of CO2. Despite stringent handling protocols, there's always a risk of SF6 leakage during operation or maintenance, contributing to environmental concerns. As global focus on sustainability intensifies, this factor is becoming increasingly significant in circuit breaker selection.
Applications and Future Trends
Current Application Scenarios
Vacuum circuit breakers have traditionally dominated medium-voltage applications (1kV to 72kV), owing to their compact size, reliability, and low maintenance requirements. They're widely used in industrial settings, power distribution systems, and renewable energy installations. SF6 breakers, on the other hand, have been the go-to choice for high-voltage applications (above 72kV) due to their superior insulation properties at higher voltages. However, recent advancements are challenging this status quo.
Technological Advancements
Recent innovations in vacuum interrupter design have expanded the voltage range of vacuum circuit breakers. Some manufacturers now offer vacuum breakers capable of operating at voltages up to 145kV, encroaching on the traditional domain of SF6 breakers. These high-voltage vacuum circuit breakers maintain the advantages of their lower-voltage counterparts while offering a viable alternative to SF6 technology in higher voltage applications.
Future Outlook
The trend is clearly shifting towards more widespread adoption of vacuum circuit breakers. Environmental regulations are becoming increasingly stringent, putting pressure on utilities and industries to phase out SF6 equipment. This regulatory landscape, combined with the technical advantages of vacuum technology, is driving research and development efforts to further enhance vacuum circuit breakers' capabilities. We can expect to see vacuum technology expanding into even higher voltage ranges in the coming years, potentially revolutionizing high-voltage switchgear markets.
Conclusion
While both vacuum and SF6 circuit breakers have their place in electrical systems, the scales are tipping in favor of vacuum technology. Vacuum circuit breakers offer superior performance, lower maintenance requirements, and significantly reduced environmental impact. As technology advances, we're seeing vacuum breakers increasingly capable of handling higher voltages, challenging the traditional dominance of SF6 in high-voltage applications. For most scenarios, particularly in medium-voltage ranges, vacuum circuit breakers emerge as the better choice, balancing technical performance with environmental responsibility. As the industry moves towards more sustainable solutions, vacuum technology is poised to play an increasingly pivotal role in electrical power systems.
