What are the causes and dangers of contact bouncing during the closing operation of high-voltage vacuum circuit breakers?

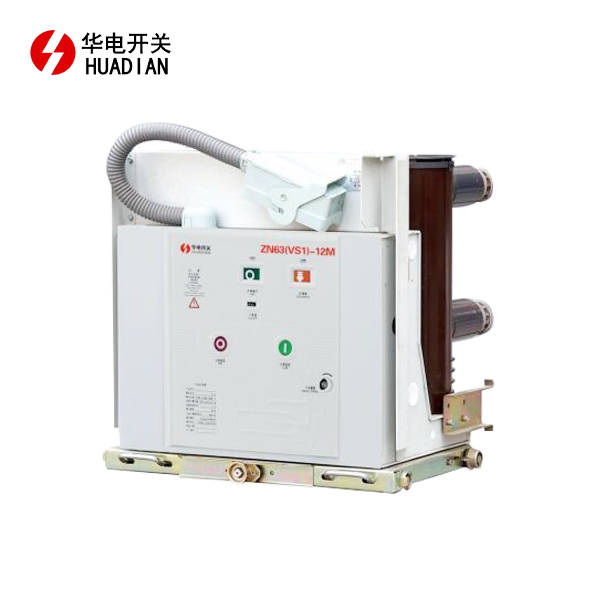

Contact bouncing in high-voltage vacuum circuit breakers refers to the phenomenon where the moving contact is pushed away by a reactive force after colliding with the stationary contact, and then repeatedly makes contact and is pushed away again. This process involves several cycles of reciprocal motion before stopping within the allowable time frame.

The following is a detailed analysis of the main causes and harmful effects of this phenomenon:

I. Main Causes of Contact Bounce During Closing

Mechanical Structure Factors

Clearance between operating mechanism and transmission components: Gaps or wear in the operating mechanism (such as spring mechanism, hydraulic mechanism) or transmission linkage can lead to discontinuous kinetic energy transfer during closing, easily causing contact rebound.

Contact material and structural design: Excessive hardness of the contact material or insufficient cushioning design can cause kinetic energy to be converted into elastic deformation during impact, leading to contact rebound.

Overly tight or improperly pre-compressed opening spring: During closing, the counterforce of the opening spring must be overcome. If the spring parameters are mismatched, it may exacerbate the rebound.

Electrical Factors

Electromagnetic force influence: The current passing through the contacts at the moment of closing (especially when closing a short-circuit current) generates an electromagnetic repulsive force, which may push the contacts apart.

Control circuit coordination problems: Excessive power supply time to the closing coil or improper timing of auxiliary switch switching can cause the mechanism to "overshoot" and then rebound.

External Conditions

Insufficient installation accuracy: Misalignment or deviation in perpendicularity between the moving and stationary contacts can generate lateral forces during contact.

Component aging or poor lubrication: Rusting of the mechanism or drying of the lubricant increases friction unevenness, resulting in unstable movement.

III. Improvement and Preventive Measures

Optimize mechanism design: Employ damping devices (such as hydraulic dampers) and elastic contact materials to reduce the impact of closing kinetic energy.

Strictly control manufacturing and installation accuracy: Ensure that contact alignment, travel, and overtravel parameters meet standards, and regularly check mechanism clearances and lubrication.

Select intelligent control strategies: Optimize the closing speed curve by adjusting the closing coil voltage or using adaptive control algorithms.

Strengthen condition monitoring: Utilize vibration sensors and arc signal monitoring to identify abnormal bouncing early and carry out timely maintenance.

Summary

Contact bounce is a typical mechanical-electrical coupling fault in high-voltage vacuum circuit breakers, stemming from insufficient kinetic energy control and structural instability. Its consequences are not limited to the circuit breaker itself but can also affect power grid safety. Through a combination of design optimization, precise installation, and intelligent monitoring, contact bounce can be significantly suppressed, improving equipment reliability.
