What are the differences and connections between low-voltage switchgear and low-voltage distribution cabinets?

Simply put, low-voltage switchgear is a type of low-voltage distribution cabinet, but not all low-voltage distribution cabinets are strictly speaking switchgear.

Below, we will provide a detailed distinction and explanation based on their definition, function, structure, and application scenarios.

Ⅰ. Summary of Core Differences and Connections

​​​​​​​

Features	Low-voltage switchgear	Low-voltage distribution cabinet
Conceptual scope	In a narrow and specific sense, it specifically refers to a set of equipment with a circuit breaker as the primary switching device and relatively simple functions.	A broad, general term for all low-voltage switchgear and control equipment.
Core functions	It focuses on "disconnection and connection." It primarily performs the reception, distribution, and control of electrical energy, emphasizing circuit protection.	It offers a more comprehensive range of functions. Besides distributing electrical energy, it may also include various other functions, including energy conversion, compensation, metering, protection, and monitoring.
Main components	It primarily consists of circuit breakers (framed and molded case), disconnectors, current/voltage transformers, and protective relays.	In addition to switchgear components, it may also include inverters, soft starters, capacitor compensation devices, smart meters, and PLCs.
Structural form	It has a relatively standard structure, often in fixed or drawer-type configurations, and its units have relatively simple functions.	It offers a variety of structural forms, including combinations of switchgear units or customized enclosures or panels, offering greater structural flexibility.
Application scenarios	It typically serves as a "node" in the power distribution system, such as the low-voltage outgoing line cabinet in a substation or the main distribution cabinet in a large building.	It has a wide range of applications, from the main distribution room to end-user equipment, such as power cabinets, capacitor compensation cabinets, and fire pump control cabinets.
Relationships	It is a very important and common subcategory within the distribution cabinet family.	It is a general term encompassing a variety of equipment, including low-voltage switchgear, low-voltage distribution boxes, and control boxes.



II. Detailed Explanation

1. Low-Voltage Switchgear
Definition: Generally refers to a complete set of equipment used to receive and distribute electrical energy, as well as control, protect, and monitor circuits in a low-voltage power supply system. Its core feature is a circuit breaker as the main switch.

Function:

Energy Distribution: Distributes electrical energy from a transformer or upstream power source to various power-consuming areas or equipment via multiple outgoing lines.

Circuit Protection: Rapidly disconnects circuits in the event of overloads, short circuits, undervoltages, and other faults using circuit breakers and fuses, protecting lines and equipment.

Control and Isolation: Conveniently connects and disconnects circuits and provides a clear disconnect point (via an isolating switch) for maintenance and isolation.

Common Types:

Fixed: For example, GGD cabinets, all electrical components are fixedly installed, resulting in low cost and requiring power outage for maintenance.

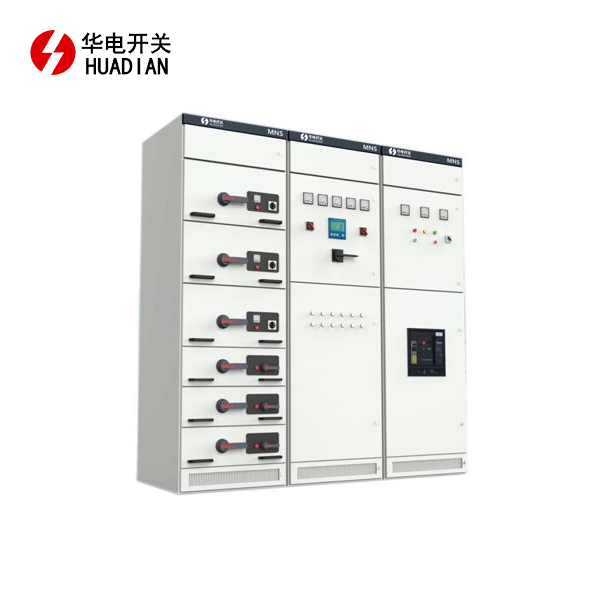

Drawer-Type: For example, GCK, GCS, and MNS cabinets, key electrical components are housed in removable drawers, offering high reliability, easy maintenance, and rapid power restoration.

Typical location: Installed in a distribution room or distribution center as the primary or secondary distribution center of the system.



2. Low-Voltage Distribution Panel
Definition: This is a broader concept, encompassing all complete sets of electrical equipment used for the distribution, control, conversion, compensation, and protection of electrical energy in low-voltage systems. It represents a large family.

Functions: In addition to possessing all the functions of switchgear, it may also integrate the following:

Motor Control: A power distribution panel or motor control center (MCC) is used to start, stop, regulate speed (variable frequency), and protect motors.

Reactive Power Compensation: A capacitor compensation panel is used to improve system power factor and reduce energy loss.

Lighting Control: Lighting circuits are distributed and controlled through a lighting distribution panel.

Terminal Power Distribution: A distribution panel provides power and protection to end-user devices (such as outlets and air conditioners).

Intelligent Monitoring: Integration of smart meters and communication modules enables real-time collection and remote control of power quality and consumption data.

Common switchgear types: In addition to the above switchgear types, these also include:

Power cabinets (boxes)

Capacitor compensation cabinets

Dual power switching boxes

Lighting distribution boxes

Outdoor integrated distribution boxes (JP cabinets)

Control boxes, operating columns, etc.



Conclusion



In short, Low-voltage switchgear is one of the most core and fundamental types of low-voltage distribution panels. In practical projects, a complete low-voltage power distribution system typically consists of multiple different types of low-voltage distribution panels. Low-voltage switchgear often handles the core tasks of power distribution and protection, while other specialized distribution panels fulfill their own specific functions.
