What are the differences between vacuum circuit breakers and vacuum contactors?

Both vacuum circuit breakers and vacuum contactors are excellent electrical devices that utilize "vacuum arc extinguishing" technology, but they have fundamental differences in design, function, and application.

Below, I will provide a detailed comparison and explanation of them from multiple perspectives.



Overview of Key Differences



Features	Vacuum circuit breaker	Vacuum contactor
Core Functions	Protection. It interrupts fault currents (short circuits, overloads), protecting the safety of circuits and equipment.	Control. It allows for frequent switching on and off of normal load currents, enabling remote/automatic control.
Arc Extinguishing Capability	Extremely powerful. Designed specifically for interrupting short-circuit currents of up to tens of kA.	Relatively strong. It can interrupt the rated current and a certain amount of overload current, but it cannot interrupt short-circuit current.
Operating Mechanism	Spring energy storage mechanism. Provides fast opening and closing speeds, independent of the operator's manual speed.	Electromagnetic mechanism. It operates quickly and is suitable for frequent operation.
Operating Frequency	Low (typically a mechanical lifespan of 10,000-20,000 cycles). Used in protection applications where frequent operation is not required.	Very high (mechanical life of several million cycles, electrical life of hundreds of thousands of cycles). Designed for frequent operation.
Holding Method	Mechanical latching mechanism. Once closed, it remains in the closed position without requiring continuous power supply.	Electrically held. Requires continuous power supply to the coil to maintain the closed state; it will open upon loss of power.
Size and Cost	Relatively large in size and high in cost (due to the need to meet short-circuit interruption requirements).	Relatively compact and low-cost.
Typical Applications	Substation incoming and outgoing lines, distribution transformer protection, and factory main incoming switchgear (main circuit protection).	Applications include the starting and stopping of high-voltage motors (such as those used in fans, water pumps, and compressors), and frequent operation scenarios in metallurgy and mining industries.



In-depth Analysis

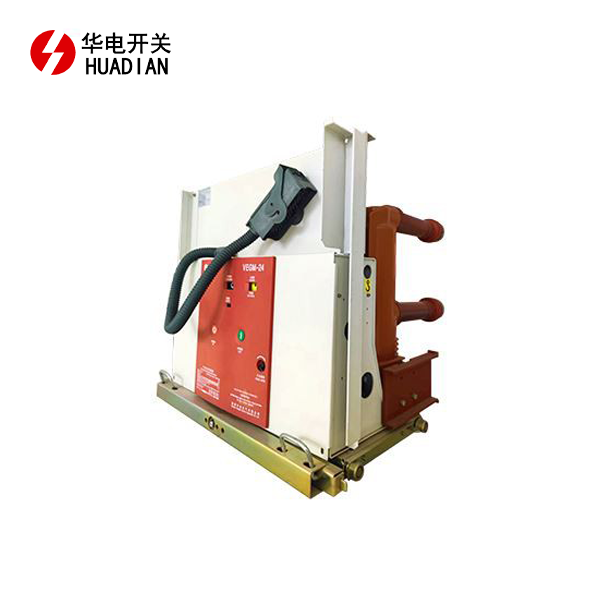

1. Vacuum Circuit Breaker
Function: Protects electrical equipment.

Working Principle: It is connected in series with the main circuit and contains a trip unit (electronic or electromagnetic). When a short circuit or severe overload occurs, the trip unit detects the abnormal current and triggers its operating mechanism (usually a spring energy storage mechanism) to act quickly, forcing the moving and stationary contacts to separate and extinguishing the resulting large arc in a vacuum.

Key Features:

Complete protection functions: Integrates overcurrent and short-circuit protection, and can even be equipped with relay protection devices for more complex protection.

"One-time" operation: Although it can be manually opened and closed, its main value lies in automatically and reliably "tripping" to isolate the fault in case of a fault.

Does it need to be used with a fuse? Usually not, because it can interrupt short-circuit current itself. However, there is a "F-C circuit" (fuse + contactor), where a high-voltage fuse provides short-circuit protection and the contactor provides control; in this case, the contactor is not a circuit breaker.

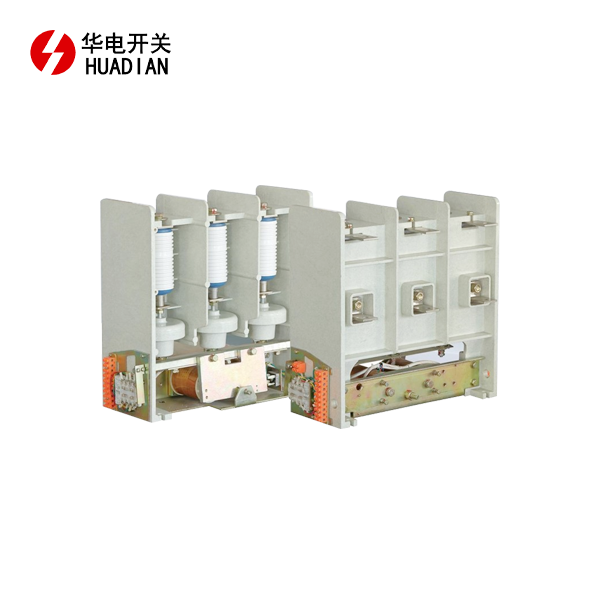

2. Vacuum Contactor
Function: Control electrical equipment.

Working Principle: It acts as a high-performance "remote switch." Applying power to its control coil generates a magnetic force, driving the contacts to close; when the power is removed, the contacts separate under the action of a return spring. Its vacuum arc extinguishing chamber ensures an extremely long lifespan even with frequent switching of rated current.

Key Features:

No Protection Function: It does not have built-in overload or short-circuit tripping capabilities. To achieve protection, it must be used in conjunction with a thermal relay (for overload protection) and a fuse (for short-circuit protection).

King of Frequent Operation: Its mechanical and electrical lifespan indicators are far superior to circuit breakers, making it the ideal choice for controlling high-voltage motors that require dozens or even hundreds of starts and stops daily.

Under-voltage Protection: Because it is electrically held, the contactor will automatically disconnect if the control power is lost or the voltage is too low. This is an important safety feature (under-voltage protection).



How to Choose? – Application Scenarios

Choose a vacuum circuit breaker when:
You need short-circuit and overload protection for a circuit or an important piece of equipment (such as a transformer).

The circuit does not require frequent operation, such as the incoming, outgoing, sectionalizing, and interconnecting cabinets of a power distribution system.

You require the equipment to have independent protection functions and be able to reclose manually or automatically.



Choose a vacuum contactor when:
You need frequent starting and stopping control for a high-voltage motor or other load. This is its core application.

You are building an "F-C circuit" or a combination scheme of "contactor + thermal relay + fuse," where the fuse provides economical and efficient short-circuit protection, and the contactor provides control.

The stability of the control power supply is important, and you want the equipment to automatically disconnect in case of voltage loss.



Summary

In simple terms, circuit breakers focus on "protection," while contactors focus on "control." Although both utilize vacuum arc extinguishing technology, their different design objectives lead to significant differences in structure, function, and application. In practical power distribution systems, they often work together; for example, a vacuum circuit breaker is used for upstream overall protection, and a vacuum contactor is used to control frequently starting and stopping motors downstream.

Shaanxi Huadian, deeply understanding the essence of power control, has built two cornerstone products based on its excellent vacuum arc extinguishing technology: high-voltage vacuum circuit breakers and high-voltage vacuum contactors, comprehensively covering your power control and protection needs. Please contact us if you have any requirements：pannie@hdswitchgear.com.
