The Vacuum Chamber: Heart of the Interrupter
Construction and Materials
The vacuum chamber serves as the critical enclosure in a vacuum interrupter, housing the main contacts and providing the isolated environment necessary for arc suppression. These chambers are typically fabricated from high-grade stainless steel or copper-chromium alloys, materials known for their excellent thermal conductivity and arc resistance. The inner surfaces are often specially treated to withstand high-energy arcs without degradation. Robust structural design ensures that the chamber can endure repeated thermal and mechanical stresses while maintaining long-term operational integrity and safety.
Vacuum Integrity
Vacuum integrity is essential to the effective operation of the interrupter, as even slight degradation can compromise insulation properties and interrupting capability. The chamber is evacuated to ultra-high vacuum levels, typically around 10⁻⁷ torr, during the manufacturing process using advanced vacuum pumps and sealing techniques. This ensures minimal presence of gas molecules that could interfere with arc extinction. Leak testing, helium mass spectrometry, and bake-out procedures are employed to confirm vacuum quality and ensure that the sealed chamber maintains its vacuum over decades of use.
Arc Quenching Properties
The vacuum chamber is uniquely suited for rapid arc quenching due to the absence of ionizable gas. When the contacts open, a metal vapor arc forms momentarily but is quickly extinguished as the electrons and ions lose energy in the vacuum. This rapid diffusion of the arc, combined with the short contact separation distance, enables high-speed interruption of current flow. Compared to other technologies, vacuum interrupters offer minimal contact erosion and heat generation, resulting in greater efficiency, extended service life, and reduced maintenance requirements.
Contact Systems: The Interrupter's Dynamic Duo
Fixed and Movable Contacts
Vacuum interrupters utilize a coordinated pair of contacts - one fixed and one movable - to control current flow and facilitate arc interruption. These contacts are generally composed of copper-chromium or copper-bismuth alloys, materials selected for their balance of electrical conductivity, thermal stability, and resistance to arc erosion. The movable contact is mechanically linked to an actuator or drive mechanism, enabling precise separation from the fixed contact during switching. This contact movement initiates arc formation and subsequent interruption, forming the core of the interrupter's switching function.
Contact Design Considerations
The effectiveness of a vacuum interrupter largely depends on the engineering of its contact system. Key design parameters include contact shape, surface texture, and material composition - all of which affect how arcs are initiated and extinguished. Optimized designs may feature spiral, slotted, or cup-shaped profiles to improve arc distribution and magnetic blowing, minimizing erosion and enhancing heat dissipation. These design strategies help reduce contact bounce, lower energy loss during operation, and extend the interrupter's life while maintaining high interrupting performance under various load conditions.
Contact Wear and Maintenance
Although vacuum interrupters are known for minimal maintenance requirements, their contacts are still subject to gradual wear from repeated switching cycles. Arc erosion can degrade contact surfaces, altering their geometry and electrical characteristics over time. Routine inspections help identify early signs of pitting, material transfer, or contact misalignment. Measuring contact erosion depth is a common practice to determine remaining service life. Scheduled maintenance ensures reliable operation, minimizes unexpected failures, and supports long-term cost efficiency in both utility and industrial applications.
Auxiliary Components: Enhancing Performance and Safety
Shield Assemblies
Shield assemblies are essential for ensuring effective arc control and protecting the vacuum chamber's internal structure. Typically constructed from high-conductivity materials like copper or corrosion-resistant stainless steel, these shields surround the contact area to confine the arc path. By preventing the arc from striking the inner chamber walls, the shields reduce the risk of vacuum degradation and material contamination. Their placement and geometry are carefully engineered to optimize arc dispersion, improve interrupting capacity, and extend the service life of the vacuum interrupter.
Insulation Systems

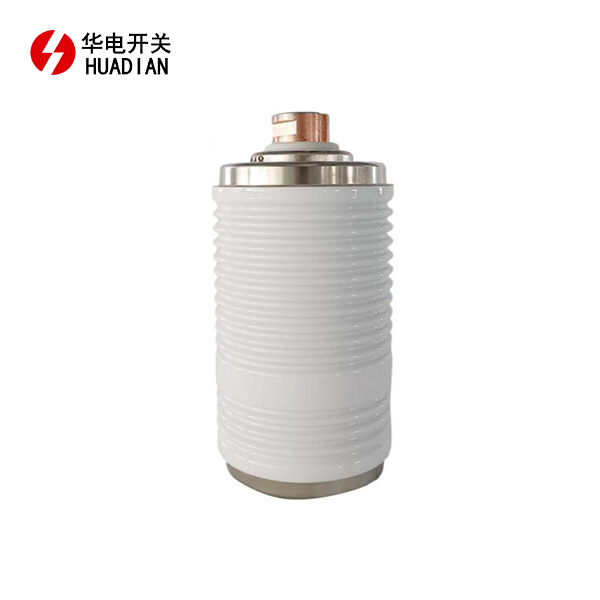

The insulation system in a vacuum interrupter is critical to maintaining dielectric separation between live parts and grounded components. Advanced ceramic materials, such as alumina, are widely used due to their excellent thermal endurance and high dielectric strength. These ceramic insulators also serve as load-bearing structures, supporting internal components and withstanding the mechanical stresses during operation. The integrity of the insulation system ensures safety, minimizes partial discharges, and supports reliable operation under both normal and fault conditions, especially in high-voltage applications.
Operating Mechanism
The operating mechanism, though external to the vacuum interrupter itself, plays a pivotal role in enabling fast and reliable switching actions. It drives the movement of the movable contact with precise timing and force to ensure consistent arc formation and extinction. Depending on the application, mechanisms may be spring-operated, magnetically actuated, or motor-driven. In complex systems, features such as phase synchronization, anti-pumping relays, and energy storage enhancements are incorporated to improve performance, reduce wear, and enhance safety during high-speed or high-frequency switching events.
Conclusion
The key parts of a vacuum interrupter work in harmony to provide efficient and reliable circuit protection. From the vacuum chamber that creates the ideal environment for arc extinction to the carefully designed contacts that handle the electrical current, each component plays a crucial role. The shield assemblies, insulation systems, and operating mechanisms further enhance the performance and safety of these sophisticated devices. As power systems continue to evolve, understanding and optimizing these components will remain essential for advancing vacuum interrupter technology and ensuring the reliability of electrical distribution networks worldwide.
