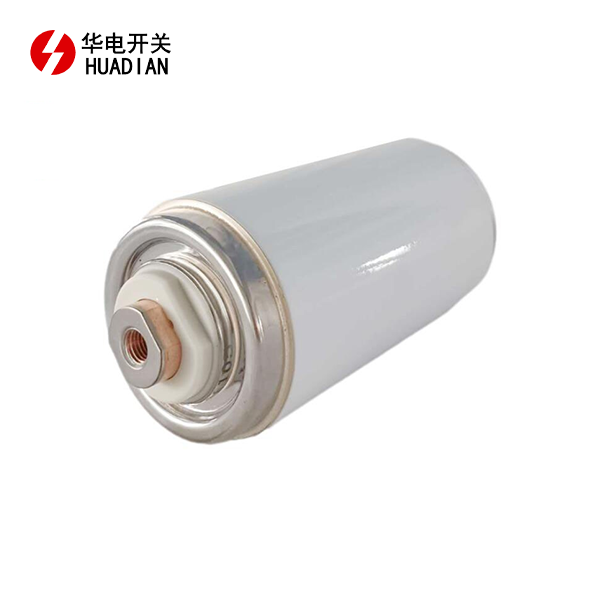

What Are the Key Specifications of the ERD-12/1250-25 Vacuum Interrupter?

The ERD-12/1250-25 vacuum interrupter is a crucial component in electrical systems, known for its exceptional performance and reliability. Its key specifications include a rated voltage of 12 kV, a rated current of 1250 A, and a rated short-circuit breaking current of 25 kA. This vacuum interrupter boasts a high insulation level, excellent arc extinguishing capabilities, and a compact design. It offers superior interruption performance, low contact resistance, and extended operational life, making it an ideal choice for medium-voltage switchgear applications in various industries.

Understanding the ERD-12/1250-25 Vacuum Interrupter

Principles of Operation

The ERD-12/1250-25 vacuum interrupter operates on the principle of vacuum interruption technology. When the contacts separate, an arc is formed in the vacuum chamber. The absence of air or gas in the chamber allows for rapid arc extinction, resulting in efficient current interruption. The vacuum environment also prevents oxidation and contamination of the contacts, ensuring long-term reliability and performance.

Design Features

This vacuum interrupter incorporates several innovative design features that contribute to its exceptional performance. The contacts are made of specialized alloys that resist welding and erosion, even under high-current conditions. The ceramic insulator provides excellent dielectric strength and thermal stability. The bellows system allows for contact movement while maintaining the vacuum seal, ensuring consistent operation over numerous switching cycles.

Applications

The ERD-12/1250-25 vacuum interrupter finds widespread use in medium-voltage switchgear, including circuit breakers, contactors, and reclosers. It is particularly well-suited for applications in power distribution systems, industrial plants, renewable energy installations, and traction systems. Its robust design and reliable performance make it an excellent choice for environments where frequent switching operations are required.

Key Performance Parameters

Electrical Characteristics

The electrical specifications of the ERD-12/1250-25 vacuum interrupter are impressive. With a rated voltage of 12 kV and a rated current of 1250 A, it can handle substantial power loads. The interrupter's ability to break short-circuit currents up to 25 kA demonstrates its capability to protect electrical systems from fault conditions effectively. Its high dielectric strength ensures excellent insulation properties, minimizing the risk of flashovers or breakdowns.

Mechanical Durability

Mechanical endurance is a critical factor in the longevity of vacuum interrupters. The ERD-12/1250-25 is designed to withstand numerous operations without significant degradation in performance. It typically offers a mechanical life of tens of thousands of operations, making it suitable for applications requiring frequent switching. The robust construction and precision engineering contribute to its ability to maintain consistent performance over an extended period.

Environmental Adaptability

The ERD-12/1250-25 vacuum interrupter demonstrates remarkable adaptability to various environmental conditions. It can operate reliably in a wide range of temperatures, from sub-zero to high-temperature environments. The sealed vacuum chamber protects the contacts from external contaminants, allowing the interrupter to function effectively in dusty or humid conditions. This environmental resilience makes it suitable for both indoor and outdoor installations across different climatic zones.

Advantages and Considerations

Benefits of Using ERD-12/1250-25

The ERD-12/1250-25 vacuum interrupter offers several advantages over other switching technologies. Its compact size allows for the design of more space-efficient switchgear. The vacuum interruption process is inherently faster and more efficient than air or oil-based systems, resulting in improved arc quenching and reduced wear on contacts. The absence of oil eliminates the risk of fire and reduces maintenance requirements. Additionally, the environmental impact is minimal due to the absence of SF6 gas, aligning with sustainability goals.

Maintenance Requirements

One of the notable benefits of the ERD-12/1250-25 vacuum interrupter is its low maintenance needs. The sealed vacuum chamber prevents contamination, reducing the frequency of cleaning or replacement. Regular inspections are typically sufficient to ensure optimal performance. However, it's essential to monitor the vacuum integrity and contact wear over time. Proper handling during installation and periodic checks of the mechanical linkages can further extend the operational life of the interrupter.

Integration Considerations

When integrating the ERD-12/1250-25 vacuum interrupter into switchgear designs, several factors need consideration. The interrupter's dimensions and mounting requirements should be carefully evaluated to ensure proper fit and alignment within the equipment. Adequate cooling and ventilation may be necessary, especially in high-current applications. The control and drive mechanisms must be compatible with the interrupter's specifications to ensure smooth and reliable operation. Proper grounding and insulation coordination are also crucial for optimal performance and safety.

Conclusion

The ERD-12/1250-25 vacuum interrupter stands out as a high-performance component in medium-voltage electrical systems. Its robust design, excellent interruption capabilities, and environmental adaptability make it a versatile choice for various applications. By offering a combination of reliability, efficiency, and low maintenance requirements, this vacuum interrupter contributes significantly to the overall performance and longevity of switchgear equipment. As power distribution networks continue to evolve, components like the ERD-12/1250-25 play a crucial role in ensuring safe and efficient electrical operations across diverse industrial and utility sectors.

Contact Us

Are you looking to enhance your electrical systems with high-quality vacuum interrupters? Discover how the ERD-12/1250-25 vacuum interrupter can improve your switchgear performance. For more information or to discuss your specific requirements, contact our experts at Shaanxi Huadian Electric Co., Ltd. Email us at austinyang@hdswitchgear.com/rexwang@hdswitchgear.com/pannie@hdswitchgear.com to explore how we can support your electrical infrastructure needs.
