What Are the Main Parts of an AC Contactor and Their Functions?

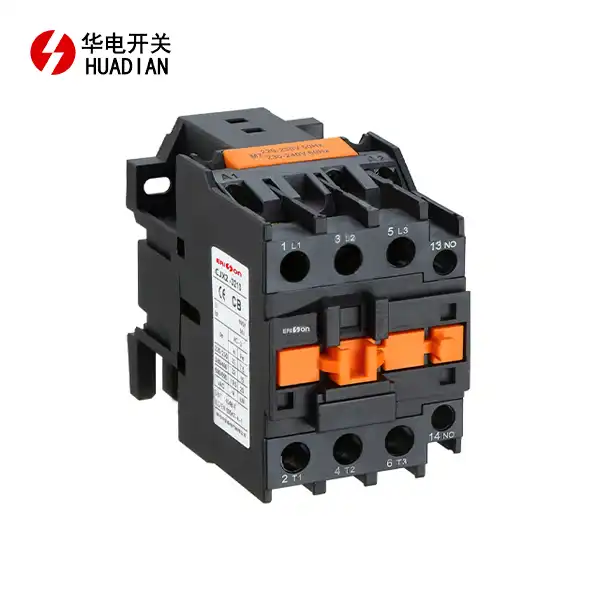

An AC contactor is a crucial component in electrical systems, designed to control the flow of electricity in various applications. The main parts of an AC contactor include the coil, contacts, armature, and housing. The coil generates a magnetic field when energized, attracting the armature, which in turn closes or opens the contacts. These contacts are responsible for making or breaking the electrical circuit. The housing provides protection and insulation for the internal components. Each part plays a vital role in the contactor's operation, ensuring efficient and safe control of electrical circuits in industrial and commercial settings.

The Coil: The Heart of the AC Contactor

Electromagnetic Properties of the Coil

The coil is the powerhouse of an AC contactor, utilizing electromagnetic principles to initiate the contactor's operation. When an electrical current passes through the coil, it generates a magnetic field. This field is the driving force behind the contactor's functionality, setting in motion a chain of events that ultimately controls the flow of electricity in the circuit.

The coil's design is crucial to its performance. Typically made of copper wire wound around a ferromagnetic core, it's engineered to produce a strong magnetic field with minimal power consumption. The number of turns in the coil, the wire gauge, and the core material all influence the coil's efficiency and strength.

Coil Voltage and Current Considerations

The voltage rating of the coil is a critical factor in AC contactor selection. Coils are designed to operate at specific voltages, commonly 24V, 120V, or 240V AC. It's essential to match the coil voltage to the control circuit voltage for proper operation. Using a coil with an incorrect voltage rating can lead to poor performance or premature failure.

The current draw of the coil is another important consideration. When the coil is first energized, it draws a higher inrush current, which then settles to a lower holding current. This characteristic must be factored into the design of the control circuit to ensure compatibility and longevity of both the contactor and the controlling devices.

Coil Insulation and Heat Dissipation

Proper insulation of the coil is crucial for the safe and reliable operation of an AC contactor. The coil's insulation class determines its ability to withstand high temperatures without degradation. Common insulation classes include Class A (105°C), Class B (130°C), and Class F (155°C).

Heat dissipation is a key consideration in coil design. Excessive heat can lead to coil failure and reduced contactor lifespan. Manufacturers employ various techniques to enhance heat dissipation, such as using high-quality insulation materials, optimizing coil winding patterns, and incorporating cooling fins into the contactor design.

Contacts: The Workhorses of Electrical Switching

Types of Contacts in AC Contactors

Contacts are the primary current-carrying components in an AC contactor. They come in two main types: main contacts and auxiliary contacts. Main contacts are designed to handle the high currents of the load circuit, while auxiliary contacts are used for control and signaling purposes.

Main contacts are typically larger and more robust, capable of withstanding the high currents and potential arcing associated with making and breaking electrical connections under load. They're often made of silver alloys or other materials with excellent electrical conductivity and arc-resistant properties.

Auxiliary contacts, on the other hand, are smaller and designed for lower current applications. They're used to provide feedback on the contactor's state, control indicator lights, or interlock with other control devices.

Contact Materials and Their Properties

The choice of contact material is crucial for the performance and longevity of an AC contactor. Common materials include silver, silver-cadmium oxide, and silver-tin oxide. Each material offers a unique balance of properties such as conductivity, arc resistance, and wear resistance.

Silver is prized for its excellent conductivity but can be prone to welding under high-current conditions. Silver-cadmium oxide offers improved arc resistance and anti-welding properties, making it suitable for high-current applications. Silver-tin oxide provides similar benefits to silver-cadmium oxide but is more environmentally friendly.

The contact material's hardness, melting point, and thermal conductivity all play roles in determining its suitability for different applications. Harder materials may offer better wear resistance but can increase contact resistance, while softer materials may provide better conductivity at the cost of increased wear.

Contact Arrangement and Configuration

The arrangement of contacts in an AC contactor can vary depending on the application requirements. Common configurations include single-pole, double-pole, three-pole, and four-pole arrangements. The number of poles corresponds to the number of separate circuits the contactor can control simultaneously.

Within each pole, contacts can be normally open (NO) or normally closed (NC). NO contacts are open when the contactor is de-energized and close when the contactor is energized, while NC contacts operate in the opposite manner. Many contactors feature a combination of NO and NC contacts to provide versatility in control applications.

The contact gap, or the distance between open contacts, is another important design consideration. A larger gap provides better insulation and arc suppression but requires more force to close, impacting the coil design and overall contactor size.

Armature and Housing: Structural Components for Reliable Operation

Armature Design and Movement

The armature is the movable part of the AC contactor that responds to the magnetic field generated by the coil. Its design is critical for the contactor's performance. Typically made of ferromagnetic materials, the armature is engineered to provide a low reluctance path for the magnetic flux, maximizing the force generated by the coil.

The armature's movement is precisely controlled to ensure rapid and reliable operation. It's often equipped with springs that provide the return force when the coil is de-energized. The balance between the magnetic force of the coil and the spring force determines the contactor's pick-up and drop-out characteristics.

Some advanced contactor designs incorporate features like magnetic latching, where permanent magnets are used to hold the armature in position once it's closed. This can significantly reduce power consumption in applications where the contactor needs to remain closed for extended periods.

Housing Materials and Construction

The housing of an AC contactor serves multiple purposes. It provides physical protection for the internal components, electrical insulation, and in some cases, contributes to heat dissipation. The choice of housing material is crucial for ensuring the contactor's reliability and safety.

Common housing materials include thermoplastics, thermosets, and metal alloys. Thermoplastics like polyamide offer good electrical insulation properties and are lightweight, making them suitable for many industrial applications. Thermosets such as epoxy resins provide excellent thermal stability and are often used in high-temperature environments.

Metal housings, typically made of aluminum alloys, offer superior heat dissipation and electromagnetic shielding. They're often used in heavy-duty applications or environments where electromagnetic interference is a concern. However, they require additional insulation measures to ensure electrical safety.

Ingress Protection and Environmental Considerations

The housing's design must also consider environmental factors. Ingress Protection (IP) ratings specify the contactor's resistance to dust and water ingress. For example, an IP54 rating indicates protection against dust and splashing water, suitable for many indoor industrial applications.

In harsh environments, contactors may require additional protection. This can include special coatings to resist corrosion, sealed housings to prevent ingress of contaminants, or even explosion-proof designs for hazardous locations.

Thermal management is another critical aspect of housing design. Proper ventilation and heat dissipation are essential for maintaining the contactor's performance and longevity. Some designs incorporate cooling fins or channels to enhance natural convection cooling.

Conclusion

Understanding the main parts of an AC contactor and their functions is crucial for anyone involved in electrical system design, maintenance, or operation. The coil, contacts, armature, and housing work in harmony to provide reliable and efficient control of electrical circuits. Each component's design and material selection play vital roles in the contactor's performance, durability, and safety. As technology advances, we can expect to see further innovations in AC contactor design, potentially incorporating smart features, improved energy efficiency, and enhanced durability. By appreciating the intricacies of these essential devices, we can better optimize their use in various applications, from industrial machinery to building automation systems.
