What Equipment Is Compatible with the ERD-12/1250-25 Vacuum Interrupter?

The ERD-12/1250-25 vacuum interrupter is compatible with a wide range of medium-voltage switchgear and circuit breaker systems. This versatile component can be integrated into various types of electrical equipment, including indoor and outdoor switchgear, motor control centers, and power distribution units. Specifically, it is designed to work seamlessly with 12kV rated voltage systems, handling nominal currents up to 1250A and short-circuit breaking currents of 25kA. The ERD-12/1250-25 vacuum interrupter's compatibility extends to both fixed and withdrawable circuit breaker designs, making it a flexible solution for diverse electrical infrastructure applications.

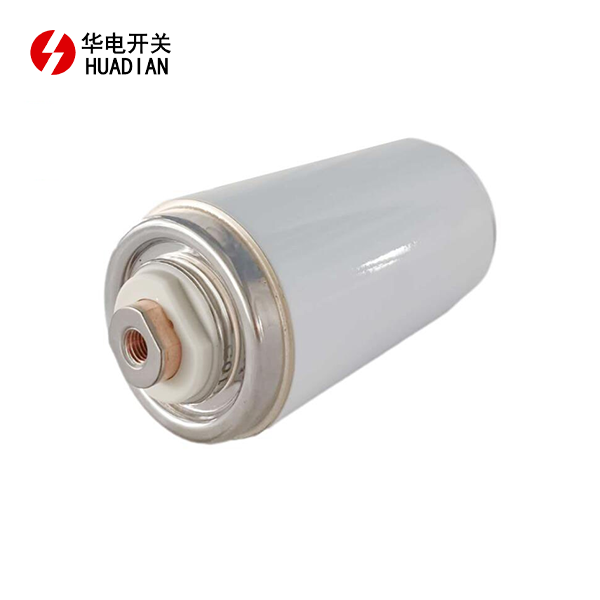

Understanding the ERD-12/1250-25 Vacuum Interrupter

Technical Specifications and Ratings

The ERD-12/1250-25 vacuum interrupter is a crucial component in medium-voltage circuit breakers. It boasts impressive technical specifications that make it suitable for a variety of applications. The device operates at a rated voltage of 12kV, which is common in industrial and commercial power distribution systems. Its nominal current rating of 1250A allows it to handle substantial power loads, while the short-circuit breaking current of 25kA provides robust protection against fault conditions.

Moreover, the ERD-12/1250-25 vacuum interrupter exhibits exceptional dielectric strength, ensuring reliable insulation between contacts when open. This characteristic is paramount in maintaining safety and preventing arc formation during switching operations. The interrupter's compact design contributes to the overall size reduction of circuit breakers, enabling more efficient use of space in switchgear assemblies.

Operating Principles of Vacuum Interrupters

Vacuum interrupters, including the ERD-12/1250-25 model, operate on the principle of arc extinction in a high-vacuum environment. When the contacts separate to interrupt current flow, an arc is formed. However, the vacuum rapidly quenches this arc due to the absence of ionizable medium. This swift arc extinction capability allows for rapid current interruption, typically within the first current zero-crossing.

The vacuum's excellent dielectric recovery strength further ensures that the arc does not reignite after interruption. This rapid recovery of dielectric strength is a key advantage of vacuum interrupters over other types of circuit breakers. The ERD-12/1250-25 vacuum interrupter leverages these principles to provide fast, reliable, and efficient current interruption in medium-voltage systems.

Advantages of the ERD-12/1250-25 Model

The ERD-12/1250-25 vacuum interrupter offers several advantages that make it a preferred choice for many electrical applications. Its high interrupting capacity allows it to effectively manage fault currents, enhancing the overall safety and reliability of the electrical system. The interrupter's long mechanical and electrical life reduces the frequency of maintenance and replacements, leading to lower operational costs over time.

Another significant advantage is the interrupter's environmental friendliness. Unlike oil or SF6 gas circuit breakers, vacuum interrupters do not use harmful substances, making them a more sustainable choice. The ERD-12/1250-25 model's compact size also contributes to space savings in switchgear assemblies, allowing for more streamlined equipment designs. These combined benefits make the ERD-12/1250-25 vacuum interrupter an attractive option for modern electrical infrastructure projects.

Compatible Equipment and Applications

Medium-Voltage Switchgear Systems

The ERD-12/1250-25 vacuum interrupter finds extensive use in medium-voltage switchgear systems. These systems are integral to power distribution networks, serving as the interface between high-voltage transmission lines and low-voltage consumer networks. In this context, the ERD-12/1250-25 can be incorporated into both air-insulated switchgear (AIS) and gas-insulated switchgear (GIS) designs.

In AIS applications, the vacuum interrupter's compact size allows for more efficient use of space, potentially reducing the overall footprint of the switchgear. For GIS designs, the ERD-12/1250-25's reliability and low maintenance requirements complement the sealed nature of these systems. Whether used in primary or secondary distribution switchgear, the interrupter's 12kV rating makes it suitable for a wide range of industrial, commercial, and utility applications.

Circuit Breaker Configurations

The versatility of the ERD-12/1250-25 vacuum interrupter extends to various circuit breaker configurations. It can be integrated into both fixed-mounted and withdrawable circuit breaker designs. Fixed-mounted breakers utilizing this interrupter are often found in compact switchgear assemblies where space is at a premium. The interrupter's reliability ensures consistent performance in these permanently installed configurations.

Withdrawable circuit breakers, on the other hand, benefit from the ERD-12/1250-25's durability and long service life. These breakers can be easily removed for maintenance or replacement, and the robust nature of the vacuum interrupter helps minimize the frequency of such interventions. The interrupter's compatibility with both configurations provides flexibility in switchgear design and maintenance strategies.

Motor Control Centers and Industrial Applications

Motor control centers (MCCs) represent another key application area for the ERD-12/1250-25 vacuum interrupter. In industrial settings, MCCs play a crucial role in controlling and protecting large motors and other electrical loads. The interrupter's 1250A nominal current rating makes it suitable for managing the high inrush currents associated with motor starting, while its 25kA short-circuit breaking capacity provides robust fault protection.

Beyond motor control, the ERD-12/1250-25 finds applications in various industrial power distribution systems. It can be integrated into switchgear serving manufacturing facilities, petrochemical plants, and mining operations. The interrupter's reliability and low maintenance requirements are particularly valuable in these demanding environments, where downtime can have significant economic impacts.

Integration and Installation Considerations

Mechanical Integration

Integrating the ERD-12/1250-25 vacuum interrupter into existing or new equipment requires careful consideration of mechanical factors. The interrupter's dimensions and mounting requirements must be compatible with the host equipment's design. Manufacturers typically provide detailed mechanical drawings and specifications to facilitate proper integration.

Attention must be paid to the alignment of the interrupter within the circuit breaker mechanism. Proper alignment ensures correct contact engagement and separation, which is crucial for the interrupter's performance and longevity. Additionally, the mechanical linkage between the interrupter and the circuit breaker's operating mechanism must be designed to transmit the required forces efficiently while maintaining precise control over contact movement.

Electrical Connections and Insulation

The electrical integration of the ERD-12/1250-25 vacuum interrupter demands meticulous attention to detail. The interrupter's terminals must be securely connected to the circuit breaker's main conductors, ensuring low-resistance paths capable of handling the rated current and short-circuit currents. These connections often involve specialized fastening techniques and materials to maintain performance over time.

Insulation coordination is another critical aspect of electrical integration. The space surrounding the interrupter must be designed to withstand the full rated voltage and any transient overvoltages that may occur during switching operations. This often involves the use of insulating materials and careful consideration of creepage and clearance distances. Proper insulation design not only ensures safety but also contributes to the overall reliability of the switchgear.

Testing and Commissioning Procedures

Once integrated, the ERD-12/1250-25 vacuum interrupter and its associated circuit breaker must undergo rigorous testing and commissioning procedures. These procedures typically include dielectric tests to verify insulation integrity, contact resistance measurements to ensure proper electrical connections, and operational tests to confirm correct mechanical functioning.

Timing tests are particularly important for vacuum interrupters. These tests measure the synchronization of contact opening and closing, which is crucial for proper arc interruption and prevention of prestrike during closing. Additionally, vacuum integrity tests may be performed to verify the seal of the interrupter. These comprehensive testing procedures ensure that the integrated system meets all performance and safety standards before being put into service.

Conclusion

The ERD-12/1250-25 vacuum interrupter stands out as a versatile and reliable component for medium-voltage electrical systems. Its compatibility with a wide range of equipment, from switchgear to motor control centers, makes it a valuable asset in various industrial and utility applications. The interrupter's robust performance characteristics, including its high interrupting capacity and long service life, contribute to enhanced system reliability and reduced maintenance requirements. As the electrical industry continues to evolve, components like the ERD-12/1250-25 play a crucial role in building safer, more efficient, and environmentally friendly power distribution networks.

Contact Us

For more information about the ERD-12/1250-25 vacuum interrupter and its applications in your electrical systems, please contact our expert team at Shaanxi Huadian Electric Co., Ltd. We're here to assist you with your specific requirements and provide tailored solutions for your power distribution needs. Reach out to us at austinyang@hdswitchgear.com/rexwang@hdswitchgear.com/pannie@hdswitchgear.com to discuss how we can support your projects with our high-quality vacuum interrupters and switchgear solutions.
