What is the difference between a fast circuit breaker and a vacuum circuit breaker?

Fast circuit breakers and vacuum circuit breakers are two common types of circuit breakers in power systems. They differ significantly in design principles, application scenarios, and performance characteristics. The following are the main differences between the two:

1. Arc Extinguishing Medium and Principle

Fast-Acting Circuit Breaker

Arc Extinguishing Medium: Typically compressed air, SF6 (sulfur hexafluoride), or special gases are used. Some designs may also utilize electromagnetic force for rapid interruption.

Arc Extinguishing Principle: The current is interrupted in an extremely short time (milliseconds) through the rapid action of a mechanical structure (such as a spring-loaded energy or electromagnetic drive). This circuit extinguishes the arc by relying on high-speed interruption and dielectric insulation.

Features: Emphasizing "speed," the circuit breaker boasts extremely short interruption times (up to 1-2 milliseconds), making it suitable for applications requiring instantaneous interruption of fault currents.

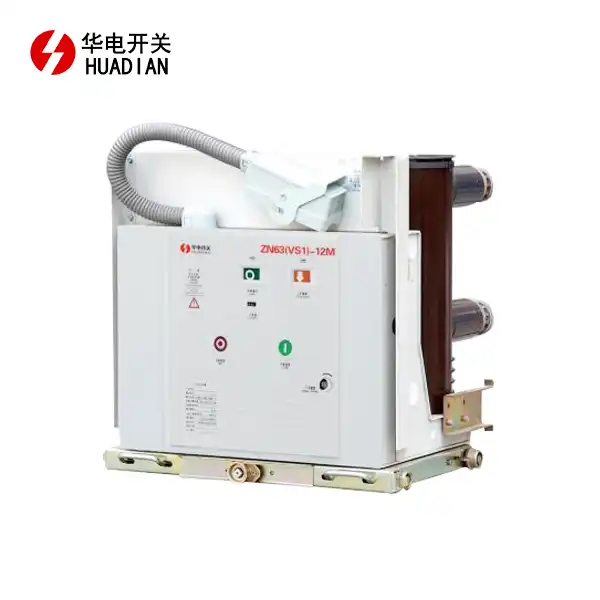

Vacuum Circuit Breaker

Arc Extinguishing Medium: Vacuum (pressure below 10⁻⁴ Pa).

Arc Extinguishing Principle: Utilizes the high dielectric strength of a vacuum and the rapidly expanding arc plasma to extinguish the arc when the current crosses zero.

Features: Strong arc extinguishing capability, suitable for frequent operation, but with a slightly slower interruption speed than fast-acting circuit breakers (typically 10-20 milliseconds).



2. Application Scenarios

High-Speed Circuit Breakers

Used in applications requiring extremely high breaking speeds, such as:

DC power systems (e.g., rail transit, aluminum smelters).

Applications with extremely rapid short-circuit current rises (e.g., nuclear power plants, large industrial equipment protection).

Sensitive loads requiring instantaneous fault isolation (e.g., semiconductor manufacturing equipment).



Vacuum Circuit Breakers

Mainly used in AC power systems, commonly found in:

Medium- and high-voltage distribution networks (6kV-40.5kV).

Applications with frequent operation (e.g., distribution stations, motor control).

Environmental requirements for long life and maintenance-free operation (e.g., data centers, mines).



3. Performance comparison

Features	Fast circuit breaker	Vacuum circuit breaker
Breaking time	Extremely fast (1-10 milliseconds)	Fast (10-50 milliseconds)
Voltage level	Low to medium pressure (DC or AC)	Medium-high voltage (primarily AC, up to 40.5 kV)
Arc extinguishing capability	Dependent on mechanical speed or gas medium	Reliant on a vacuum environment
Lifespan	Short mechanical life (high wear due to high-speed operation)	Long (vacuum arc extinguishing, no oxidation issues)
Maintenance requirements	Requires regular inspection of gas or mechanical components	Maintenance-free (sealed vacuum bulb)
Cost	High (special design and materials)	Medium (low cost after large-scale production)



4. Other Differences

DC vs. AC:

Fast-acting circuit breakers are often used in DC systems (because DC arcs are more difficult to extinguish), while vacuum circuit breakers are primarily used in AC systems (using the current zero crossing to naturally extinguish the arc).

Structural Design:

Fast-acting circuit breakers may include complex electromagnetic actuation or gas pressure systems, while vacuum circuit breakers are centered around a vacuum interrupter (smaller rupture distance and more compact structure).



Summary

Select fast-acting circuit breakers when extremely short tripping times are required (such as DC short-circuit protection) or special operating conditions (such as high-frequency surge currents).

Select vacuum circuit breakers when high reliability and long life are required for medium- and high-voltage AC system protection, and when interruption speed requirements are not extreme.
