What is the difference between a power distribution cabinet and a power distribution box?
2025-11-20 15:12:12
The core differences between distribution cabinets and distribution boxes lie in their size, capacity, installation method, and application scenarios.
You can simply understand them as follows: a "cabinet" is large and freestanding; a "box" is small and mounted on or embedded in a wall.
Key Differences Comparison
| Features | Distribution Box | Distribution Cabinet |
|---|---|---|
| Appearance and Dimensions | Small in size, with a thin casing, usually a box-like structure. | Large in size, resembling a "cabinet," with a sturdy structure. |
| Installation Method | Typically concealed within the wall or surface-mounted on the wall. | Typically floor-mounted, placed independently or embedded in a power distribution room. |
| Capacity/Rating | Used for terminal power distribution, with small capacity and low voltage level (usually 220V/380V for residential use). | Used for intermediate or main power distribution, with high capacity and capable of handling high voltages (such as 380V and above). |
| Internal Structure | Relatively simple structure, mainly installing miniature circuit breakers (air switches), residual current devices, etc. | Complex structure, can accommodate frame circuit breakers, molded case circuit breakers, contactors, inverters, PLCs, etc. |
| Protection Rating | Low protection rating (such as IP30-IP40), mainly used in dry indoor environments. | High protection rating (e.g., IP40-IP65), some suitable for outdoor or harsh environments. |
| Application Scenarios | Used at the end-user point, such as in a home, office, or a specific area of a shopping mall, controlling the final electrical equipment. | Used for power distribution and motor control. Examples include power distribution rooms, substations, factories, and data centers. |
| Common Analogy | Similar to a "socket panel" or "faucet" in a house, directly connecting to electrical appliances. | Like the "meter room" or "pump room" of an entire building, managing and distributing overall resources. |
Detailed description
1. Distribution Box
A distribution box is one of the most common types of power distribution equipment in our daily lives. It is responsible for distributing electrical energy from the distribution cabinet to the final power circuits.
Functions: Primarily performs the final distribution and control of electrical energy, as well as providing overload, short-circuit, and leakage protection for circuits and electrical equipment.
Features:
Compact size: Small in size and does not take up much space.
Terminal location: Located at the end of the power distribution system, directly connecting to lighting, sockets, air conditioners, and other electrical equipment.
Simplified design: The internal components mainly consist of miniature circuit breakers, making operation and maintenance relatively simple.
Common types:
Lighting distribution box: Primarily used to control lighting circuits.
Power distribution box: Primarily used to control circuits for power equipment such as sockets and air conditioners.
Indoor distribution box: This is the common "electrical box" found in our homes.

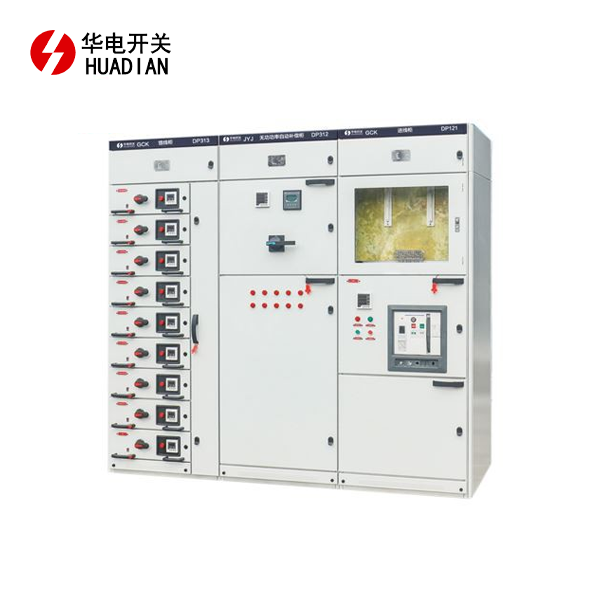

2.Distribution cabinet
A power distribution cabinet is a broader concept, typically found in power distribution rooms, substations, or large industrial plants, and it undertakes the important tasks of receiving, distributing, and controlling electrical energy.
Function: Receives electrical energy from the transformer and distributes it to various downstream distribution boxes or large electrical equipment. It also provides higher-level protection, monitoring, and control functions.
Features:
Large size: It is bulky and requires a dedicated space (switchgear room) for installation.
Centralized: It is a node in the power system, centrally managing and distributing large amounts of electrical energy.
Complex: The internal structure is complex and may include large circuit breakers, meters, indicator lights, capacitor compensation devices, etc.
Common types:
Incoming line cabinet: The cabinet where the main power supply is connected.
Outgoing line cabinet: The cabinet that distributes electrical energy to various areas.
Capacitor compensation cabinet: Used to improve the power factor.
Motor control center (MCC): Specifically used to control motors in a factory.
Variable frequency drive cabinet: Contains a variable frequency drive for motor speed control.
Summary and Relationship
You can understand their relationship as follows:
Power system: Transformer → Main distribution cabinet → Regional distribution cabinet → Floor distribution box → User's indoor distribution box → Electrical equipment
Distribution cabinets are more like the "middle managers" of the power system, responsible for the power distribution in a specific area or building.
Distribution boxes, on the other hand, are the "front-line implementers," responsible for accurately delivering electrical energy to each specific piece of electrical equipment and providing the most direct protection.
