What is the Vacuum Level in a Vacuum Circuit Breaker?

2025-05-23 08:44:28

The vacuum level in a vacuum circuit breaker typically ranges from 10^-4 to 10^-6 torr, which is equivalent to about 1.33 x 10^-4 to 1.33 x 10^-6 mbar. This exceptionally low pressure creates an environment where the electric arc can be rapidly extinguished, making vacuum circuit breakers highly efficient at interrupting electrical currents. The vacuum's insulating properties allow for compact design and long operational life, making these breakers ideal for medium-voltage applications. Understanding this crucial aspect of vacuum circuit breakers is essential for appreciating their superior performance in electrical systems.

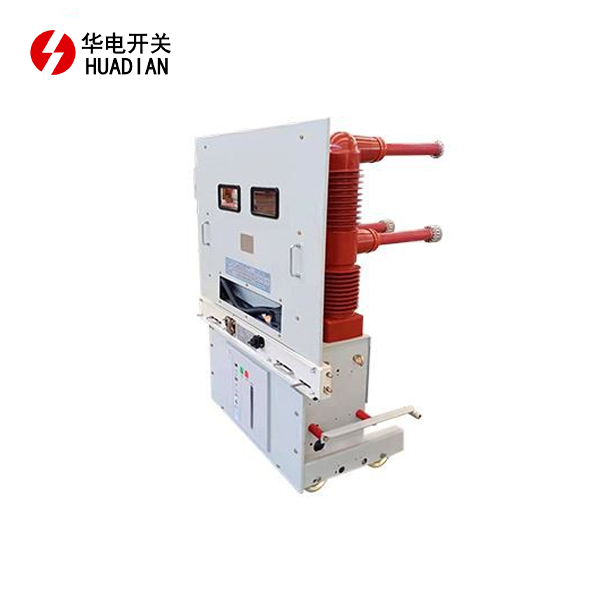

blog-1-1

Understanding Vacuum Circuit Breakers

The Basics of Vacuum Circuit Breakers

Vacuum circuit breakers are advanced electrical devices designed to interrupt and protect medium-voltage power circuits. These breakers utilize a high-vacuum environment to extinguish the electric arc that forms when contacts separate under load. The vacuum's unique properties allow for efficient current interruption and superior insulation, making these breakers a popular choice in modern electrical systems.

Components of a Vacuum Circuit Breaker

A typical vacuum circuit breaker consists of several key components:

- Vacuum interrupter: The heart of the breaker, containing fixed and moving contacts in a vacuum-sealed chamber

- Operating mechanism: Responsible for opening and closing the contacts

- Insulating bushings: Provide insulation between the high-voltage terminals and the grounded enclosure

- Control circuit: Manages the breaker's operation and monitoring functions

- Enclosure: Protects internal components and maintains the vacuum integrity

Each component plays a crucial role in the breaker's functionality and reliability.

Advantages of Vacuum Technology in Circuit Breakers

Vacuum circuit breakers offer numerous benefits over traditional air or oil circuit breakers:

- Rapid arc extinction: The vacuum environment allows for quick and efficient interruption of electric currents

- Compact design: The excellent insulating properties of vacuum permit smaller overall dimensions

- Minimal maintenance: With fewer moving parts and no oil to change, these breakers require less upkeep

- Long operational life: The sealed vacuum interrupter resists wear and contamination, extending service intervals

- Environmentally friendly: No oil means reduced risk of environmental contamination

These advantages have made vacuum circuit breakers increasingly popular in medium-voltage applications across various industries.

The Role of Vacuum in Circuit Breaking

Physics of Vacuum in Electrical Systems

The vacuum environment in a circuit breaker plays a pivotal role in its operation. At atmospheric pressure, air molecules can ionize and sustain an electric arc. However, in a high vacuum, there are significantly fewer particles available for ionization. This scarcity of particles makes it challenging for an arc to form and persist, allowing for rapid current interruption.

The dielectric strength of a vacuum is remarkably high, often exceeding 20 kV/mm. This property enables vacuum circuit breakers to handle high voltages in a compact space. The absence of oxidation and contamination in the sealed vacuum interrupter also contributes to the breaker's longevity and consistent performance.

Arc Behavior in Vacuum

When contacts in a vacuum circuit breaker separate under load, a brief electric arc forms. Unlike arcs in air or oil, the vacuum arc is characterized by:

- Rapid expansion and contraction

- High current density at the cathode spot

- Minimal energy dissipation

- Quick extinction at current zero

These characteristics result from the unique properties of the vacuum environment. The arc's behavior is influenced by factors such as contact material, geometry, and the magnitude of the current being interrupted.

Importance of Maintaining Vacuum Integrity

Maintaining the integrity of the vacuum within the interrupter is crucial for the proper functioning of a vacuum circuit breaker. Any degradation in the vacuum level can lead to:

- Reduced dielectric strength

- Increased risk of flashover

- Diminished current interruption capability

- Potential failure of the breaker

To ensure long-term reliability, manufacturers employ advanced sealing techniques and conduct rigorous testing to verify the vacuum integrity throughout the breaker's operational life.

Vacuum Level Specifications and Measurements

Standard Vacuum Levels in Circuit Breakers

The vacuum level in circuit breakers is typically measured in units of pressure, such as torr or millibar (mbar). Industry standards generally specify a vacuum level between 10^-4 to 10^-6 torr for optimal performance. This ultra-low pressure ensures minimal particle presence, maximizing the breaker's insulating and arc-quenching capabilities.

Manufacturers may have specific requirements within this range, depending on the breaker's design and intended application. For instance, higher voltage ratings may necessitate lower vacuum levels to maintain adequate dielectric strength.

Measurement Techniques for Vacuum Levels

Accurately measuring the vacuum level in a vacuum circuit breaker is essential for quality control and maintenance. Common measurement techniques include:

- Ionization gauges: Ideal for ultra-high vacuum measurements

- Thermocouple gauges: Suitable for rough vacuum measurements

- Capacitance manometers: Provide accurate readings across a wide pressure range

- Residual gas analyzers: Offer detailed information about the composition of residual gases

These instruments are typically used during manufacturing and can also be employed for diagnostic purposes during maintenance operations.

Factors Affecting Vacuum Stability

Several factors can influence the stability of the vacuum in a circuit breaker:

- Material outgassing: Slow release of gases from internal components

- Seal integrity: Quality and condition of vacuum seals

- Temperature fluctuations: Can cause expansion and contraction, potentially affecting seals

- Mechanical stress: Vibrations or impacts that may compromise the vacuum envelope

- Manufacturing processes: Cleanliness and quality control during assembly

Manufacturers implement various strategies to mitigate these factors, ensuring long-term vacuum stability and breaker performance.

Conclusion

The vacuum level in a vacuum circuit breaker is a critical parameter that directly influences its performance and reliability. Maintaining a vacuum level between 10^-4 to 10^-6 torr ensures optimal arc extinction and insulation properties. This ultra-low pressure environment enables vacuum circuit breakers to offer superior current interruption capabilities, compact design, and long operational life. As electrical systems continue to evolve, understanding and maintaining proper vacuum levels will remain essential for the efficient and safe operation of medium-voltage power distribution networks.
