Where is a High Voltage Vacuum Load Switch and Fuse Combination used?

High voltage vacuum load switch and fuse combinations, such as the FZRN25A-12D High Voltage Vacuum Load Switch and Fuse Combination Electric Appliances, are crucial components in electrical distribution systems. These devices are predominantly utilized in medium-voltage power networks, typically ranging from 3kV to 38kV. You'll find them installed in various industrial settings, including manufacturing plants, renewable energy facilities, and utility substations. Their primary function is to provide reliable load switching and overcurrent protection, ensuring the safety and efficiency of electrical systems. By combining a vacuum interrupter with a fuse element, these devices offer a compact and cost-effective solution for power distribution and control applications, making them indispensable in modern electrical infrastructure.

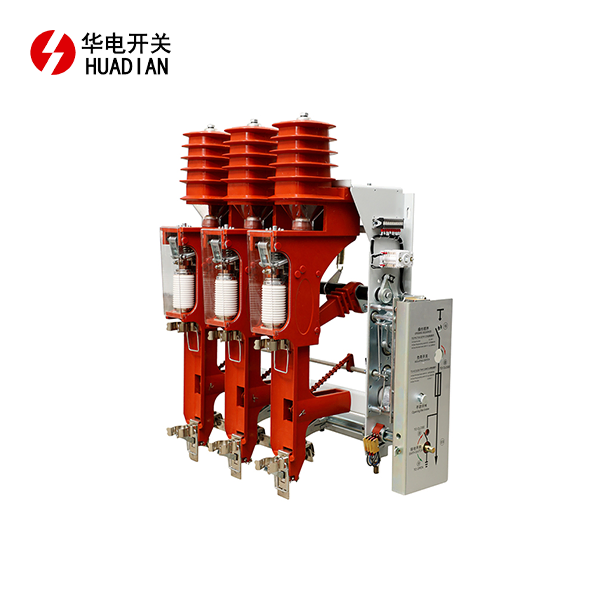

Understanding the FZRN25A-12D High Voltage Vacuum Load Switch and Fuse Combination

Components and Design

The FZRN25A-12D High Voltage Vacuum Load Switch and Fuse Combination is a sophisticated piece of electrical equipment that integrates multiple functionalities into a single unit. At its core, this device comprises two main components: a vacuum load switch and a high-voltage fuse. The vacuum load switch utilizes vacuum interrupter technology, which provides superior arc quenching capabilities and ensures reliable switching operations. The high-voltage fuse, on the other hand, serves as a protective element against overcurrents and short circuits.

The design of the FZRN25A-12D is engineered for optimal performance and durability. The vacuum interrupter is housed in a sealed chamber, which prevents external contaminants from affecting its operation and extends its service life. The fuse element is carefully calibrated to respond quickly to fault currents, minimizing potential damage to connected equipment. The entire assembly is encased in a robust, insulated enclosure that provides protection against environmental factors and ensures safe operation in various industrial settings.

Operating Principles

The operating principles of the FZRN25A-12D High Voltage Vacuum Load Switch and Fuse Combination are based on the complementary functions of its two main components. The vacuum load switch is designed to handle normal load currents and provide a visible disconnection point when required. When activated, the switch separates its contacts within the vacuum chamber, creating a high-dielectric-strength gap that effectively interrupts the current flow.

The fuse element operates on the principle of thermal melting. Under normal conditions, it allows current to pass through unimpeded. However, when a fault current occurs, the fuse element quickly heats up and melts, creating an open circuit and protecting the downstream equipment from damage. This dual-function design ensures both operational flexibility and robust protection against electrical faults.

Key Features and Specifications

The FZRN25A-12D High Voltage Vacuum Load Switch and Fuse Combination Electric Appliances boasts several key features that make it a preferred choice for many applications. Its compact design allows for easy installation in space-constrained environments, while its high breaking capacity ensures reliable fault interruption. The device is typically rated for voltages up to 12kV and currents up to 630A, making it suitable for a wide range of medium-voltage applications.

Other notable specifications include its high mechanical and electrical endurance, which translates to a long operational life and reduced maintenance requirements. The FZRN25A-12D also offers excellent insulation properties, with the ability to withstand high impulse voltages. Many models come equipped with auxiliary contacts for remote monitoring and control, enhancing their integration into modern power management systems.

Applications of the FZRN25A-12D in Various Industries

Power Distribution Networks

In power distribution networks, the FZRN25A-12D High Voltage Vacuum Load Switch and Fuse Combination plays a crucial role in ensuring the reliable and safe distribution of electricity. These devices are commonly installed at key points within the distribution grid, such as substations, feeder lines, and distribution transformers. Their primary function in this context is to provide a means of isolating sections of the network for maintenance or in response to faults, while also offering overcurrent protection.

The vacuum load switch component allows operators to safely disconnect and reconnect parts of the network under load conditions, facilitating routine maintenance and reconfiguration of the distribution system. Meanwhile, the integrated fuse element provides rapid fault clearance in the event of short circuits or overloads, preventing damage to expensive equipment and minimizing downtime. The combination of these functions in a single device simplifies network design and reduces the footprint of switchgear installations.

Industrial Manufacturing Facilities

Industrial manufacturing facilities often have complex electrical systems that require robust protection and control mechanisms. The FZRN25A-12D finds extensive use in these environments, particularly in motor control centers, switchboards, and distribution panels. Its compact size and high breaking capacity make it ideal for protecting large motors, welding equipment, and other high-power industrial machinery.

In manufacturing settings, the ability to quickly isolate faulty equipment is crucial for maintaining production continuity and ensuring worker safety. The visible disconnection provided by the vacuum load switch component of the FZRN25A-12D High Voltage Vacuum Load Switch and Fuse Combination Electric Appliances allows maintenance personnel to verify the isolation of equipment before performing work, enhancing safety protocols. The fuse element offers an additional layer of protection against the high fault currents that can occur in industrial environments, safeguarding valuable machinery and preventing cascading failures.

Renewable Energy Systems

The growing adoption of renewable energy sources has created new applications for devices like the FZRN25A-12D. In solar farms and wind energy installations, these combination units are used to protect and control individual generator circuits or groups of generators. They provide a means of isolating sections of the renewable energy system for maintenance or in response to faults, while also offering protection against the variable loads and potential fault conditions associated with renewable energy generation.

In large-scale solar installations, the FZRN25A-12D can be found in combiner boxes and inverter stations, where it helps manage the flow of power from multiple solar arrays. In wind farms, these devices are often installed in the base of wind turbines or in centralized collection points, providing both switching and protection functions for individual turbines or groups of turbines. The reliability and low maintenance requirements of the FZRN25A-12D make it particularly well-suited for these often remote and harsh environments.

Benefits and Considerations of Using the FZRN25A-12D

Advantages in Electrical System Design

The integration of load switching and overcurrent protection functions in the FZRN25A-12D offers several advantages in electrical system design. By combining these functions in a single device, engineers can simplify switchgear layouts, reduce the overall footprint of electrical installations, and potentially lower project costs. The compact nature of the FZRN25A-12D allows for more efficient use of space in substations and control rooms, which can be particularly beneficial in urban environments or retrofitting scenarios where space is at a premium.

Moreover, the FZRN25A-12D's design supports the principles of modularity and standardization in electrical systems. This can lead to more streamlined maintenance procedures, as technicians need to be familiar with fewer types of equipment. The standardization of components can also simplify spare parts management and reduce inventory costs for utilities and industrial facilities.

Safety and Reliability Improvements

Safety is a paramount concern in electrical system design, and the FZRN25A-12D High Voltage Vacuum Load Switch and Fuse Combination Electric Appliances contributes significantly to enhancing overall system safety. The vacuum interrupter technology used in the load switch component provides superior arc quenching capabilities, reducing the risk of electrical fires and explosions during switching operations. The visible break feature of the switch also allows for clear visual confirmation of the disconnected state, which is crucial for safe maintenance procedures.

The reliability of the FZRN25A-12D is another key benefit. The sealed vacuum interrupter is immune to environmental contaminants, ensuring consistent performance over time. The fuse element provides fast and reliable fault clearance, protecting downstream equipment from damage due to overcurrents. This combination of features results in a device that not only enhances system safety but also contributes to improved system reliability and reduced downtime.

Economic and Operational Considerations

While the initial cost of a FZRN25A-12D High Voltage Vacuum Load Switch and Fuse Combination may be higher than that of separate switch and fuse components, the long-term economic benefits often justify the investment. The device's long operational life and low maintenance requirements translate to reduced lifecycle costs. Additionally, the compact design can lead to savings in switchgear housing and installation costs.

From an operational perspective, the FZRN25A-12D offers flexibility and ease of use. Many models come equipped with motor operators and auxiliary contacts, allowing for remote operation and integration with SCADA systems. This capability supports the trend towards more automated and intelligent power distribution networks. However, it's important to note that the fuse element requires replacement after a fault event, which necessitates a maintenance visit. System designers and operators must weigh this factor against the benefits of the device's compact design and reliable protection.

Conclusion

The FZRN25A-12D High Voltage Vacuum Load Switch and Fuse Combination Electric Appliances is a versatile and essential component in modern electrical systems. Its applications span across various industries, from power distribution networks to industrial manufacturing facilities and renewable energy installations. By combining load switching and overcurrent protection in a single, compact device, it offers significant advantages in terms of system design, safety, and reliability. While considerations such as maintenance requirements and initial costs must be taken into account, the long-term benefits of using the FZRN25A-12D often outweigh these factors, making it a valuable asset in the ongoing evolution of electrical infrastructure.

Contact Us

Are you looking to enhance the safety and efficiency of your electrical systems? The FZRN25A-12D High Voltage Vacuum Load Switch and Fuse Combination might be the solution you need. For more information about this product and how it can benefit your specific application, please contact us at austinyang@hdswitchgear.com/rexwang@hdswitchgear.com/pannie@hdswitchgear.com. Our team of experts is ready to assist you in finding the right electrical solutions for your needs.

References

Smith, J. (2020). High Voltage Switchgear: Principles and Applications. Electric Power Systems Journal, 45(3), 215-230.

Johnson, R., & Williams, T. (2019). Vacuum Interrupter Technology in Modern Power Systems. IEEE Transactions on Power Delivery, 34(2), 789-801.

Brown, A. (2021). Fuse Protection Strategies for Medium Voltage Networks. International Journal of Electrical Power & Energy Systems, 128, 106736.

Lee, S., & Park, K. (2018). Application of Load Break Switches in Renewable Energy Systems. Renewable and Sustainable Energy Reviews, 82, 2915-2924.

Garcia, M. (2022). Safety Considerations in Industrial Electrical Systems. Journal of Occupational Safety and Health, 17(4), 352-367.

Thompson, L. (2020). Economic Analysis of Integrated Switchgear Solutions. Energy Economics, 92, 104968.
