Understanding Universal Circuit Breakers

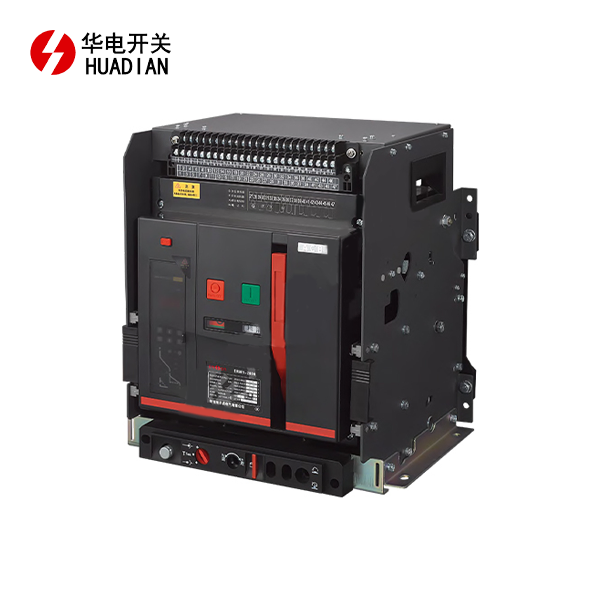

What is a Universal Circuit Breaker?
A universal circuit breaker is a versatile electrical safety device designed to protect various types of circuits from overloads and short circuits. Not at all unlike standard circuit breakers, which are regularly planned for particular voltage and current evaluations, universal circuit breakers can be balanced to suit a run of electrical prerequisites. This adaptability makes them perfect for utilize in differing applications, from private settings to mechanical situations.
How Universal Circuit Breakers Work
Universal circuit breakers operate on the principle of electromagnetic and thermal tripping mechanisms. When an overload or short circuit occurs, the breaker detects the abnormal current flow and automatically interrupts the circuit. The electromagnetic component responds quickly to sudden, high-current faults, while the thermal element reacts to prolonged, lower-level overloads. This dual-action system ensures comprehensive protection against various electrical issues.
Importance of Proper Functioning
The proper functioning of universal circuit breakers is crucial for maintaining electrical safety and preventing potential hazards. These devices serve as the first line of defense against electrical fires, equipment damage, and personal injury. When a universal circuit breaker fails to reset, it's often an indication of an underlying problem that requires immediate attention. Ignoring this issue can lead to serious consequences, including increased fire risk and compromised electrical system integrity.
Common Reasons Why Universal Circuit Breakers Won't Reset
Persistent Overloads
One of the most frequent causes of a universal circuit breaker failing to reset is a persistent overload condition. This occurs when the electrical demand consistently exceeds the rated capacity of the circuit. Common culprits include:
- Too many high-wattage appliances operating simultaneously
- Faulty or energy-inefficient equipment drawing excess current
- Inadequate circuit capacity for the connected load
In such cases, the circuit breaker will trip repeatedly to protect the system from overheating and potential damage. Attempting to reset the breaker without addressing the underlying overload issue can lead to repeated tripping and may eventually damage the breaker itself.Short Circuits and Ground Faults
Short circuits and ground faults are serious electrical issues that can prevent a universal circuit breaker from resetting. A short circuit occurs when a low-resistance connection forms between two points in an electrical circuit, allowing current to flow along an unintended path. Ground faults, on the other hand, happen when current leaks to the ground through an unintended route. Both conditions can cause:
- Sudden, high-current spikes that trigger the circuit breaker
- Damage to wiring insulation or electrical components
- Potential fire hazards if left unaddressed
When faced with these issues, the universal circuit breaker will trip and refuse to reset until the underlying problem is resolved, safeguarding against further electrical damage or safety risks.Mechanical Damage or Wear
Universal circuit breakers, like all mechanical devices, are subject to wear and tear over time. Mechanical damage or age-related deterioration can prevent the breaker from resetting properly. Common mechanical issues include:
- Worn or damaged internal components
- Corrosion or debris accumulation within the breaker
- Misalignment of moving parts due to physical impact or vibration
In some cases, the breaker's reset mechanism may become stuck or fail to engage correctly, rendering the device inoperable. Regular inspection and maintenance can help identify and address these mechanical issues before they lead to complete failure.Troubleshooting and Fixing Universal Circuit Breaker Issues
Identifying the Root Cause
Before attempting any fixes, it's crucial to identify the root cause of the universal circuit breaker's failure to reset. This process involves:
- Inspecting the electrical panel for signs of damage or overheating
- Checking connected devices and appliances for faults or excessive power draw
- Using a multimeter to test for continuity and proper voltage levels
By systematically examining the electrical system, you can pinpoint whether the issue stems from an overload, short circuit, or a problem with the breaker itself. This diagnostic step is essential for implementing the most appropriate and effective solution.Addressing Overload Issues
If an overload is preventing your universal circuit breaker from resetting, consider these steps:
- Redistribute high-wattage appliances across different circuits
- Upgrade to energy-efficient devices to reduce overall power consumption
- Consider installing additional circuits or upgrading the existing ones to handle higher loads
In some cases, you may need to consult with a licensed electrician to assess your electrical system's capacity and recommend appropriate upgrades. Addressing overload issues not only resolves the immediate problem but also improves the overall efficiency and safety of your electrical system.Repairing or Replacing the Circuit Breaker
When mechanical damage or wear is the culprit, repairing or replacing the universal circuit breaker may be necessary. Here's what you should consider:
- Inspect the breaker for visible signs of damage, such as scorch marks or melted plastic
- Test the breaker's functionality using specialized equipment (best done by a professional)
- If repair is not feasible, replace the breaker with a new, compatible model
It's important to note that working with circuit breakers can be dangerous and should only be performed by qualified individuals. If you're unsure about handling electrical components, it's always safer to enlist the help of a professional electrician.Preventive Measures and Maintenance
Regular Inspections
Implementing a routine inspection schedule for your universal circuit breakers can help prevent issues before they arise. Regular inspections should include:
- Visual checks for signs of wear, damage, or overheating
- Testing the breaker's manual trip and reset functions
- Ensuring proper tightness of all electrical connections
By conducting these inspections periodically, you can catch potential problems early and maintain the reliability of your electrical protection system.Proper Load Management
Effective load management is crucial for preventing overloads and ensuring the longevity of your universal circuit breakers. Consider these strategies:
- Regularly assess the power requirements of your electrical devices
- Balance the load across multiple circuits when possible
- Avoid using multiple high-wattage appliances on the same circuit simultaneously
By being mindful of your electrical usage and distributing loads appropriately, you can significantly reduce the risk of overloads and unnecessary circuit breaker trips.Professional Electrical Audits
Periodic professional electrical audits can provide a comprehensive assessment of your electrical system's health and safety. These audits typically involve:
- Thorough inspection of all electrical components, including circuit breakers
- Load analysis to ensure circuits are not overloaded
- Recommendations for system upgrades or improvements
Investing in professional audits can help identify potential issues before they become serious problems, ensuring the continued reliability and safety of your electrical system.Conclusion
Understanding why your universal circuit breaker won't reset is crucial for maintaining a safe and efficient electrical system. By addressing common issues such as persistent overloads, short circuits, and mechanical wear, you can ensure the continued protection of your electrical infrastructure. Remember that while some troubleshooting steps can be performed by homeowners, complex electrical work should always be left to qualified professionals. Regular maintenance, proper load management, and periodic inspections are key to preventing issues and extending the life of your universal circuit breakers. By implementing these practices, you can maintain a reliable and safe electrical system for years to come.
