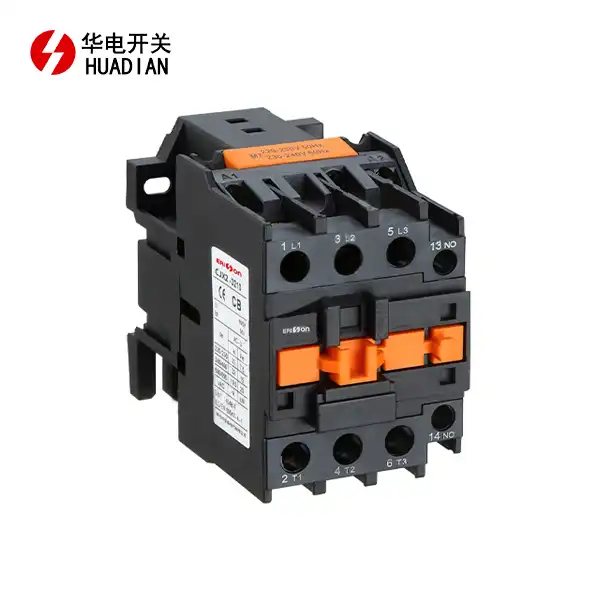

Components and Structure of AC Contactors
Electromagnetic Coil
The electromagnetic coil is the heart of an AC contactor. It consists of numerous turns of insulated copper wire wound around a laminated iron core. When energized with alternating current, this coil generates a fluctuating magnetic field. The strength of this field is proportional to the number of turns in the coil and the current flowing through it. High-quality AC contactors use precision-wound coils to ensure consistent and reliable operation.
Moving Core and Armature
The moving core, also known as the armature, is a pivotal component in the AC contactor's operation. Typically made of high-permeability magnetic material, the core is designed to respond swiftly to changes in the magnetic field. When the coil is energized, the core is pulled towards the center of the coil, overcoming the resistance of a return spring. This movement is the key to actuating the main contacts. The design of the core and armature assembly is critical for the contactor's performance, affecting factors such as operating speed and contact pressure.
Main Contacts
The main contacts are the workhorses of the AC contactor. These robust metallic components are responsible for making and breaking the high-power electrical circuit. Typically made of silver alloys or other highly conductive materials, the contacts are designed to withstand the high currents and potential arcing associated with switching power circuits. The contact design involves careful consideration of factors such as contact resistance, wear resistance, and arc suppression capabilities. Advanced AC contactors may incorporate additional features like arc chutes to quickly extinguish any arcs that form during contact separation.
Operating Mechanism of AC Contactors
Energization and Contact Closure
The operation of an AC contactor begins when its control circuit is energized. This sends current through the electromagnetic coil, generating a strong magnetic field. The moving core, attracted by this field, rapidly moves towards the center of the coil. This movement is mechanically coupled to the main contacts, causing them to close. The closure of these contacts completes the power circuit, allowing current to flow through the load. The speed of this operation is crucial, particularly in motor control applications where rapid switching is often required.
Magnetic Holding
Once the contacts are closed, the AC contactor must maintain this position reliably. This is achieved through the continuous energization of the coil, which creates a steady magnetic force. This force keeps the moving core in its attracted position, overcoming the resistance of the return spring and any forces generated by the flow of current through the main contacts. The design of the magnetic circuit is optimized to provide strong holding force while minimizing power consumption in the coil. Some advanced AC contactors incorporate electronic control systems to modulate the coil current, further improving energy efficiency.
De-energization and Contact Opening
When the control signal is removed, the coil de-energizes, and the magnetic field collapses. At this point, the return spring comes into play, quickly pulling the moving core back to its original position. This action opens the main contacts, interrupting the power circuit. The speed of contact opening is critical to minimize arcing and protect the contacts from damage. Many AC contactors incorporate additional features like blow-out coils or permanent magnets to help extinguish any arcs that form during contact separation, ensuring clean and safe circuit interruption.
Advanced Features and Considerations
Arc Suppression Techniques
Arc suppression is a critical aspect of AC contactor design, particularly for high-power applications. When contacts separate under load, an electric arc can form, potentially damaging the contacts and surrounding components. Modern AC contactors employ various techniques to mitigate this issue. These may include arc chutes, which use a series of metal plates to divide and cool the arc, effectively extinguishing it. Some designs incorporate magnetic blow-out coils that use the magnetic field generated by the arc current itself to elongate and cool the arc. Advanced contactors may also use electronic circuits to predict and minimize arcing conditions.
Auxiliary Contacts and Control Circuits
Many AC contactors are equipped with auxiliary contacts in addition to the main power contacts. These smaller contacts are mechanically linked to the main contacts but are used in control circuits rather than power circuits. They provide valuable feedback on the contactor's state, allowing for more sophisticated control systems. For instance, auxiliary contacts can be used to interlock multiple contactors, prevent simultaneous operation of conflicting circuits, or provide status indications to control systems. The integration of auxiliary contacts enhances the versatility and safety of AC contactor applications.
Overload Protection and Integration
While the primary function of an AC contactor is switching, many modern units incorporate or are designed to work closely with overload protection devices. These protective elements monitor the current flowing through the contactor and can trigger a disconnection if the current exceeds safe levels. This integration of switching and protection functions enhances system reliability and simplifies installation. Some advanced AC contactors feature electronic overload relays that offer precise current monitoring, adjustable trip settings, and communication capabilities for integration with broader control and monitoring systems.
Conclusion
The working principle of AC contactors exemplifies the elegant fusion of electromagnetic theory and mechanical design in electrical engineering. These devices play a crucial role in countless applications, from industrial machinery to building electrical systems. Understanding their operation is key to proper selection, installation, and maintenance. As technology advances, AC contactors continue to evolve, incorporating new materials, design techniques, and electronic enhancements. This ongoing development ensures that AC contactors remain at the forefront of electrical control technology, meeting the ever-increasing demands for reliability, efficiency, and safety in electrical systems.
