Best Materials for Embedded Poles: What You Need to Know

When it comes to the best materials for embedded poles in vacuum circuit breakers, epoxy resin stands out as the top choice. This high-performance material offers exceptional electrical insulation properties, mechanical strength, and thermal stability. Epoxy resin embedded poles provide superior protection against moisture ingress, ensure consistent performance in various environmental conditions, and contribute to the overall reliability and longevity of the circuit breaker. Other materials like cycloaliphatic epoxy and silicone rubber are also used, but epoxy resin remains the industry standard due to its balanced combination of electrical and mechanical properties.

​​​​​​​

Understanding Embedded Poles in Vacuum Circuit Breakers

The Role of Embedded Poles

Embedded poles play a crucial role in vacuum circuit breakers, serving as the primary insulation and structural support for the vacuum interrupter. These components are designed to withstand high electrical stress, mechanical forces, and environmental factors while maintaining the integrity of the circuit breaker's operation. The embedded pole encapsulates the vacuum interrupter, providing a protective barrier against external influences and ensuring optimal performance throughout the device's lifespan.

Key Functions of Embedded Poles

The primary functions of embedded poles include electrical insulation, mechanical support, and environmental protection. By effectively isolating the high-voltage components from the surrounding environment, embedded poles prevent electrical breakdown and ensure safe operation of the circuit breaker. Additionally, they provide the necessary structural strength to withstand the mechanical stresses associated with circuit breaker operation, including the rapid opening and closing of contacts during fault interruption.

Importance of Material Selection

Selecting the appropriate material for embedded poles is paramount to the performance and reliability of vacuum circuit breakers. The chosen material must exhibit excellent dielectric properties, mechanical strength, thermal stability, and resistance to environmental factors such as humidity and pollution. The right material selection ensures consistent operation across a wide range of temperatures, voltages, and environmental conditions, ultimately contributing to the longevity and dependability of the circuit breaker.

Evaluating Materials for Embedded Poles

Epoxy Resin: The Gold Standard

Epoxy resin has emerged as the gold standard for embedded poles in vacuum circuit breakers. This versatile material offers an exceptional balance of electrical and mechanical properties, making it ideal for high-voltage applications. Epoxy resin embedded poles demonstrate superior insulation characteristics, high mechanical strength, and excellent resistance to thermal and environmental stresses. The material's low shrinkage during curing and its ability to form a strong bond with other components contribute to the overall reliability and performance of the circuit breaker.

Cycloaliphatic Epoxy: Enhanced UV Resistance

Cycloaliphatic epoxy is another material used in embedded poles, particularly in outdoor applications where UV resistance is crucial. This specialized epoxy formulation offers improved weathering characteristics compared to standard epoxy resins, making it suitable for circuit breakers exposed to harsh environmental conditions. Cycloaliphatic epoxy embedded poles maintain their electrical and mechanical properties over extended periods of exposure to sunlight and other weathering factors, ensuring long-term reliability in outdoor installations.

Silicone Rubber: Flexibility and Thermal Stability

Silicone rubber is sometimes used as an alternative material for embedded poles, particularly in applications where flexibility and excellent thermal stability are required. While not as commonly used as epoxy resin, silicone rubber offers unique advantages such as superior resistance to extreme temperatures and excellent electrical properties. Silicone rubber embedded poles can maintain their performance characteristics over a wide temperature range, making them suitable for circuit breakers operating in environments with significant temperature fluctuations.

Factors Influencing Material Selection

Electrical Properties

The electrical properties of the embedded pole material are paramount in ensuring the proper functioning of the vacuum circuit breaker. Key electrical characteristics to consider include dielectric strength, volume resistivity, and tracking resistance. The material must maintain its insulating properties under high voltage stress and prevent surface tracking that could lead to electrical breakdown. Epoxy resin, in particular, excels in these areas, offering high dielectric strength and excellent resistance to partial discharge and electrical treeing.

Mechanical Strength and Durability

The mechanical properties of the embedded pole material significantly impact the overall reliability and longevity of the circuit breaker. The material must withstand the mechanical stresses associated with circuit breaker operation, including the forces generated during contact opening and closing. Factors such as tensile strength, flexural strength, and impact resistance are critical considerations. Epoxy resin embedded poles offer superior mechanical strength and durability, ensuring consistent performance over thousands of operations.

Environmental Resistance

The ability of the embedded pole material to withstand various environmental factors is crucial for maintaining long-term performance. Resistance to moisture ingress, UV radiation, pollution, and chemical exposure are important considerations, especially for outdoor installations. Materials like cycloaliphatic epoxy and silicone rubber offer enhanced environmental resistance, making them suitable for challenging outdoor environments. However, properly formulated epoxy resin can also provide excellent environmental protection when combined with appropriate design and manufacturing techniques.

Conclusion

Selecting the best material for embedded poles in vacuum circuit breakers is a critical decision that impacts the performance, reliability, and longevity of these essential power system components. While epoxy resin remains the predominant choice due to its exceptional balance of electrical and mechanical properties, other materials like cycloaliphatic epoxy and silicone rubber offer unique advantages for specific applications. By carefully considering factors such as electrical properties, mechanical strength, and environmental resistance, manufacturers can choose the optimal material to ensure the highest level of performance and reliability in their vacuum circuit breakers.

Contact Us

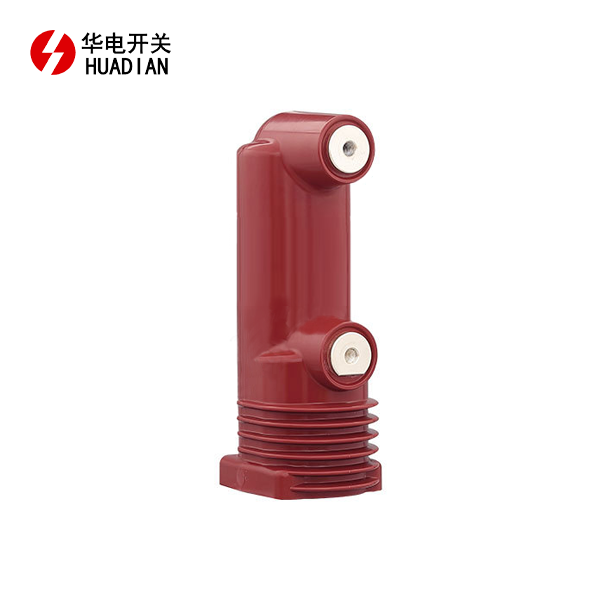

For more information about our high-quality vacuum circuit breakers featuring advanced embedded pole technology, including the EP40.5/3150-31.5 embedded pole model, please contact our expert team at Shaanxi Huadian Electric Co., Ltd. We're here to help you find the perfect solution for your power distribution needs. Reach out to us today at austinyang@hdswitchgear.com/rexwang@hdswitchgear.com/pannie@hdswitchgear.com to discuss your requirements and discover how our products can enhance the reliability and efficiency of your electrical systems.
