How to Check AC Contactor?

Checking an AC contactor is a crucial maintenance task that ensures the proper functioning of electrical systems. To check an AC contactor, start by visually inspecting for signs of wear, damage, or discoloration. Then, use a multimeter to test the coil resistance and contact continuity. Power up the contactor and listen for a distinctive click, indicating proper operation. Measure voltage across the contacts when open and closed. Finally, check for any overheating issues by using an infrared thermometer. Regular inspections and proper maintenance of AC contactors can prevent system failures and extend the lifespan of electrical equipment.

​​​​​​​

Understanding AC Contactors

What is an AC Contactor?

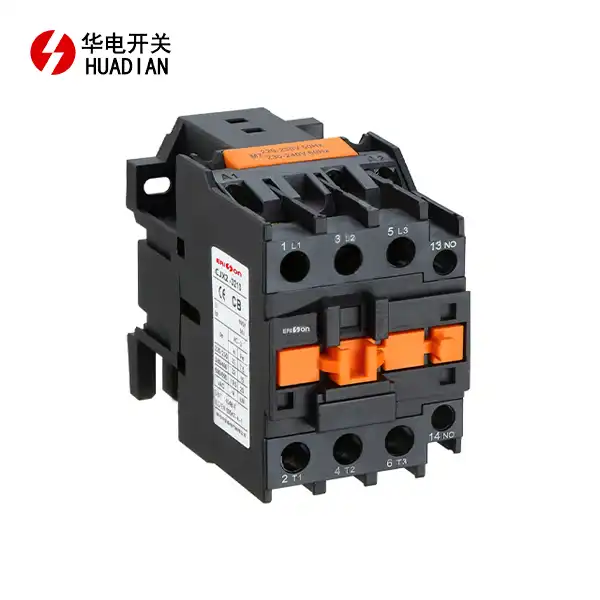

An AC contactor is an essential component in electrical systems, designed to control the flow of electricity in high-power circuits. It functions as a switch, allowing or interrupting the current flow based on a control signal. AC contactors are commonly used in industrial and commercial applications, such as HVAC systems, motors, and lighting controls.

Components of an AC Contactor

AC contactors consist of several key components that work together to control electrical circuits. The main parts include the electromagnetic coil, movable and fixed contacts, spring mechanism, and arc chutes. The electromagnetic coil creates a magnetic field when energized, attracting the movable contacts to close the circuit. The spring mechanism ensures rapid opening of the contacts when the coil is de-energized, while arc chutes help extinguish any electrical arcs that may form during switching operations.

Importance of Regular AC Contactor Checks

Regular checks of AC contactors are vital for maintaining the safety and efficiency of electrical systems. These inspections help identify potential issues before they escalate into major problems, preventing unexpected downtime and costly repairs. By conducting routine checks, you can ensure that the contactor operates within its specified parameters, extends its lifespan, and maintains optimal performance of the connected equipment.

Preparing for AC Contactor Inspection

Safety Precautions

Before inspecting an AC contactor, it's crucial to prioritize safety. Always disconnect the power supply to the contactor and use appropriate personal protective equipment (PPE), such as insulated gloves and safety glasses. Verify the absence of voltage using a properly rated voltage tester before proceeding with any hands-on inspection. It's also advisable to follow lock-out/tag-out procedures to prevent accidental energization of the circuit during the inspection process.

Tools Required for Inspection

To perform a comprehensive AC contactor check, you'll need several tools. A multimeter is essential for measuring resistance, continuity, and voltage. An insulation resistance tester can help assess the condition of the contactor's insulation. A thermal imaging camera or infrared thermometer can detect any hot spots or abnormal temperature rises. Additionally, have a set of precision screwdrivers, needle-nose pliers, and a flashlight on hand for detailed visual inspections and minor adjustments.

Identifying the AC Contactor in the System

Locating the AC contactor within an electrical system is the first step in the inspection process. Contactors are typically found in control panels, motor starters, or dedicated enclosures. Familiarize yourself with the system's wiring diagrams and component layouts to easily identify the contactor. Look for a device with multiple large terminals for power connections and smaller terminals for control wiring. The contactor may also have visible coil terminals and a nameplate containing important specifications and ratings.

Step-by-Step AC Contactor Inspection Process

Visual Inspection

Begin the inspection with a thorough visual examination of the AC contactor. Look for signs of physical damage, such as cracks, discoloration, or deformation of the contactor body. Check for any loose connections, frayed wires, or signs of arcing on the contact surfaces. Inspect the coil for any visible damage or overheating indicators. Pay attention to the condition of the arc chutes and ensure they are properly seated. Any signs of excessive wear, burning, or contamination should be noted and addressed promptly.

Electrical Testing

Electrical testing is a critical aspect of AC contactor inspection. Use a multimeter to measure the coil resistance and compare it to the manufacturer's specifications. Check for continuity across the power contacts when the contactor is de-energized and energized. Measure the voltage drop across closed contacts to ensure proper contact closure. Perform an insulation resistance test between the coil and contacts, as well as between the open contacts, to verify the integrity of the insulation. Record all measurements for future reference and trend analysis.

Operational Testing

Operational testing involves verifying the proper functioning of the AC contactor under normal conditions. Energize the control circuit and observe the contactor's operation. Listen for the characteristic "click" sound as the contactor engages and disengages. Check for any unusual noises, vibrations, or delayed responses. Measure the pick-up and drop-out voltages of the coil to ensure they fall within the specified range. Conduct multiple switching cycles to assess the consistency of operation and identify any intermittent issues.

Common AC Contactor Issues and Troubleshooting

Coil Failure

Coil failure is a frequent problem in AC contactors. Symptoms include failure to energize, intermittent operation, or excessive heat generation. To troubleshoot, measure the coil resistance and compare it to the manufacturer's specifications. Check for any signs of burning or discoloration on the coil. If the coil is damaged or has incorrect resistance, it may need to be replaced. Ensure that the control voltage is within the specified range and that there are no loose connections in the control circuit.

Contact Wear and Damage

Contact wear and damage can significantly impact the performance of an AC contactor. Inspect the contact surfaces for pitting, erosion, or discoloration. Measure the contact resistance and compare it to the manufacturer's guidelines. If the contacts show excessive wear or have high resistance, they may need to be replaced or refurbished. Check for proper alignment of the contacts and ensure that the spring mechanism provides adequate pressure for reliable contact closure.

Mechanical Issues

Mechanical problems can arise from various sources in an AC contactor. Check for any binding or sticking of the moving parts, which may indicate worn bearings or misalignment. Inspect the return spring for proper tension and any signs of fatigue. Verify that the armature moves freely and seats properly when the coil is energized. Lubricate moving parts sparingly with an appropriate lubricant if recommended by the manufacturer. Address any mechanical issues promptly to prevent further damage and ensure reliable operation.

Maintenance and Care of AC Contactors

Cleaning and Lubrication

Regular cleaning and proper lubrication are essential for maintaining AC contactors. Remove dust, debris, and contaminants from the contactor using compressed air or a soft brush. Clean the contact surfaces with a contact cleaner suitable for electrical applications. If lubrication is required, use only manufacturer-approved lubricants and apply them sparingly to avoid attracting dust and debris. Pay special attention to pivot points and sliding surfaces, ensuring smooth operation without excess buildup of lubricant.

Replacement of Worn Components

Timely replacement of worn components is crucial for maintaining the reliability of AC contactors. Monitor the condition of contacts, springs, and other wear-prone parts during regular inspections. Replace components that show signs of excessive wear, damage, or degradation. Use only genuine replacement parts that match the specifications of the original contactor. When replacing contacts, ensure proper alignment and adjust the spring tension as needed. Keep a stock of commonly replaced parts on hand to minimize downtime during maintenance.

Scheduled Maintenance and Documentation

Implementing a scheduled maintenance program for AC contactors helps prevent unexpected failures and extends their operational life. Develop a maintenance schedule based on the manufacturer's recommendations and the specific operating conditions of your system. Perform regular inspections, electrical tests, and operational checks at predetermined intervals. Document all maintenance activities, including inspection results, measurements, and any repairs or replacements made. Maintain a detailed log of each contactor's history to identify trends and predict potential issues before they occur.

Conclusion

Mastering the process of checking AC contactors is crucial for maintaining the reliability and efficiency of electrical systems. By following the steps outlined in this guide, from visual inspection to electrical testing and operational verification, you can effectively identify and address potential issues before they lead to system failures. Regular maintenance, including cleaning, lubrication, and timely replacement of worn components, will extend the lifespan of your AC contactors and ensure optimal performance. Remember that proper safety precautions and the use of appropriate tools are essential for conducting thorough and accurate inspections.
